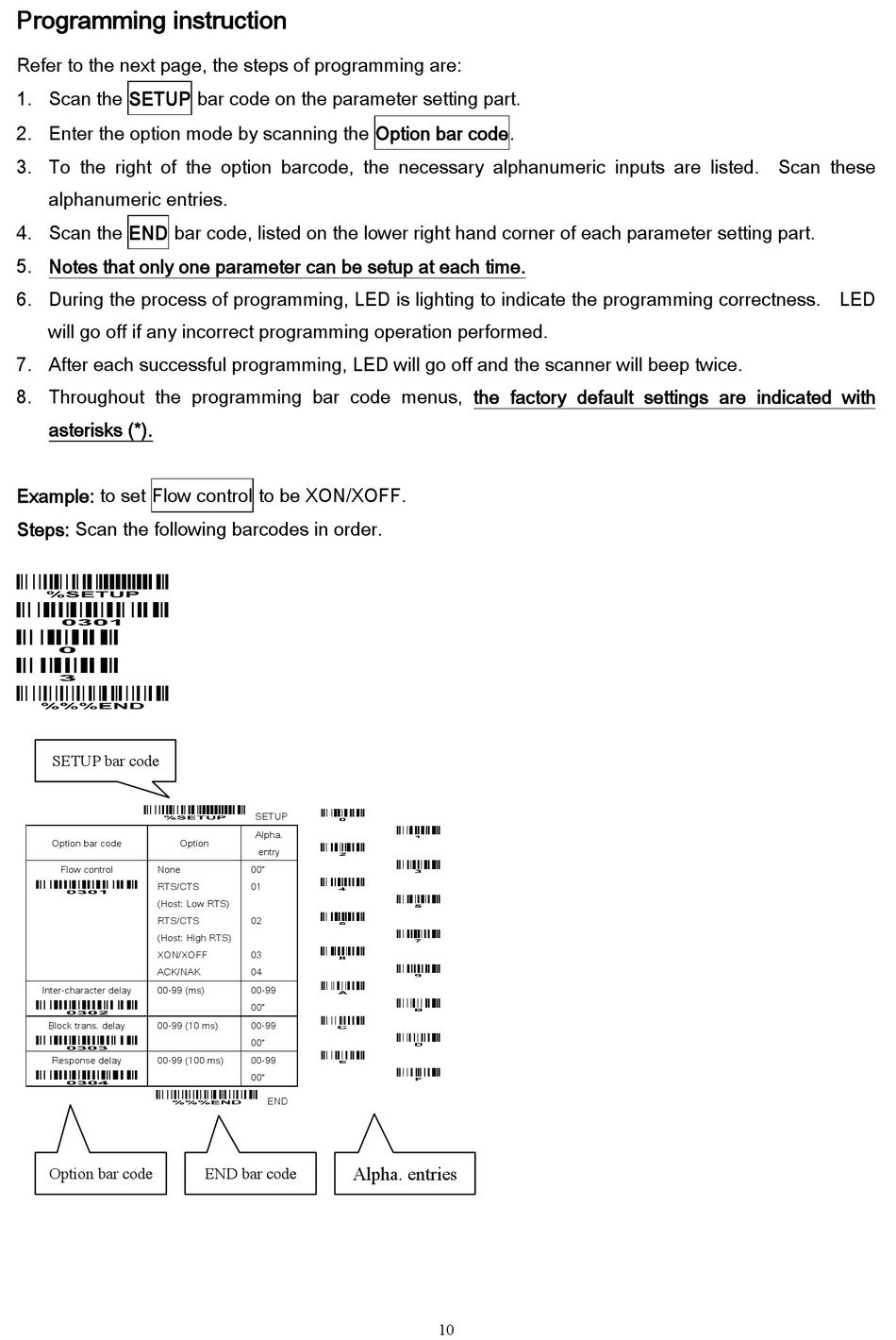

Programming instruction

Refer to the next page, the steps of programming are:
1. Scan the SETUP bar code on the parameter setting part.
2. Enter the option mode by scanning the Option bar code.
3. To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan these
alphanumeric entries.
4. Scan the END bar code, listed on the lower right hand corner of each parameter setting part.
5. Notes that only one parameter can be setup at each time.
6. During the process of programming, LED is lighting to indicate the programming correctness. LED
will go off if any incorrect programming operation performed.
7. After each successful programming, LED will go off and the scanner will beep twice.
8. Throughout the programming bar code menus, the factory default settings are indicated with
asterisks (*).
Example: to set Flow control to be XON/XOFF.
Steps: Scan the following barcodes in order.
SETUP bar code
Option bar code Option
Flow control None
RTS/CTS
(Host: Low RTS)
RTS/CTS
(Host: High RTS)
XON/XOFF
ACK/NAK
Inter-character delay 00-99 (ms)
Block trans. delay 00-99 (10 ms)
Response delay 00-99 (100 ms)
Option bar code
SETUP
Alpha.
entry
00*
01
02
03
04
00-99
00*
00-99
00*
00-99
00*
END
Figure 7
Alpha. entries
END bar code
