Programming instruction

Important notes:
1. During the process of programming, LED is lighting to indicate the programming correctness. LED
will go off if any incorrect programming operation performed.
2. After each successful programming, LED will go off and the scanner will beep twice.
3. Throughout the programming bar code menus, the factory default settings are indicated with
asterisks (*).

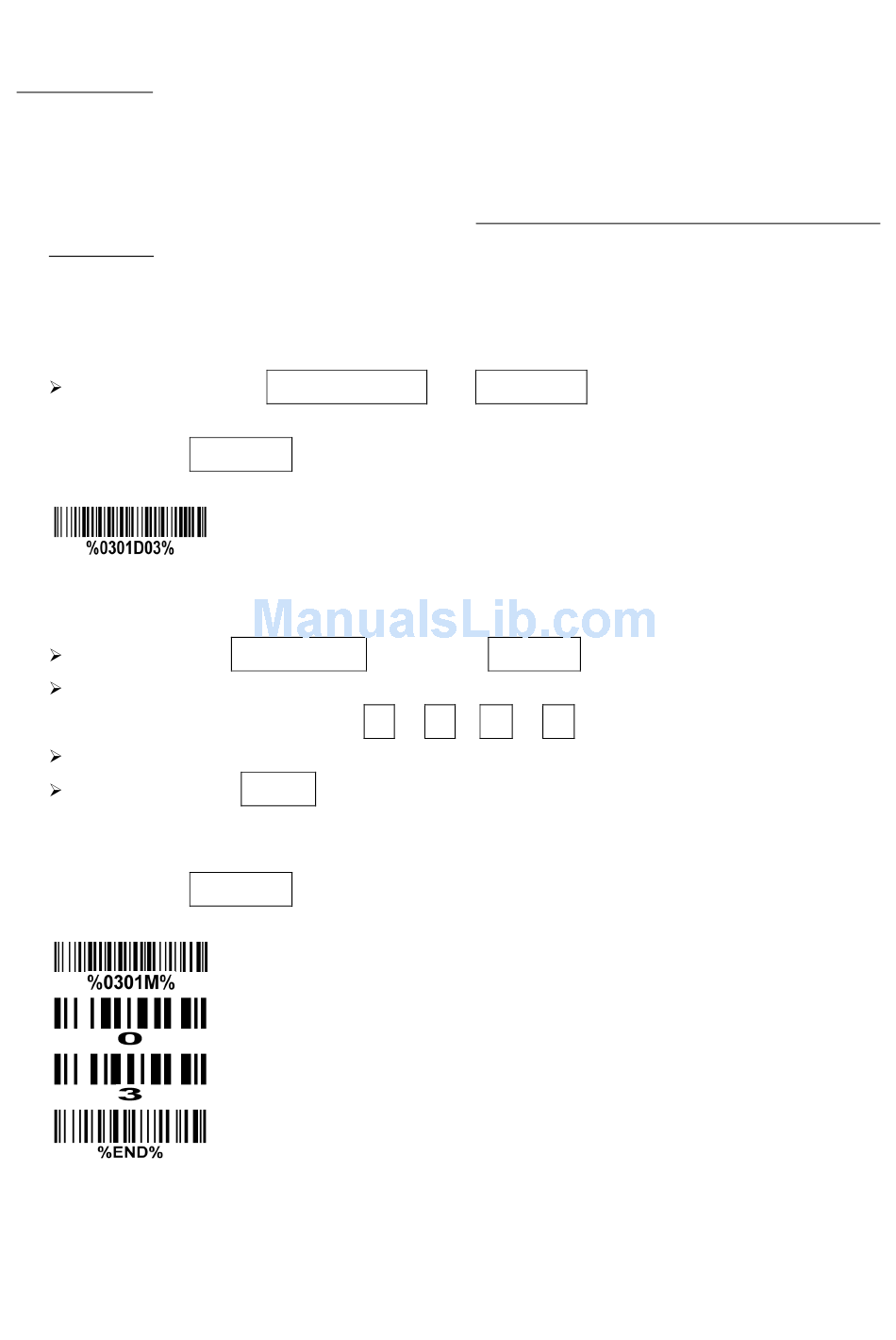

Two programming modes have been provided as bellows:
❶ Single-scan setting
Scan the appropriate Single-scan setting (e.g. %0101D00%) according to the user's demand.
Example: to set Flow control to be XON/XOFF.
Steps: Scan the following barcode.
❷ Multiple-scan setting
Step 1. Scan the Option bar code barcode (e.g. %0101M%) according to the user's demand.
Step 2. To the right of the option barcode, the necessary alphanumeric inputs are listed. Scan
these alphanumeric entries, e.g.
Step 3. Repeat Step 1 to Step 2, if more user parameters input are required.
Step 4. Scan the %END% bar code, listed on the lower left hand corner of each parameter
setting part.
Example: to set Flow control to be XON/XOFF.
Steps: Referring to the chapter of "RS-232 interface", scan the following barcodes in order.
0 ~ 9 , A ~ F .
8
