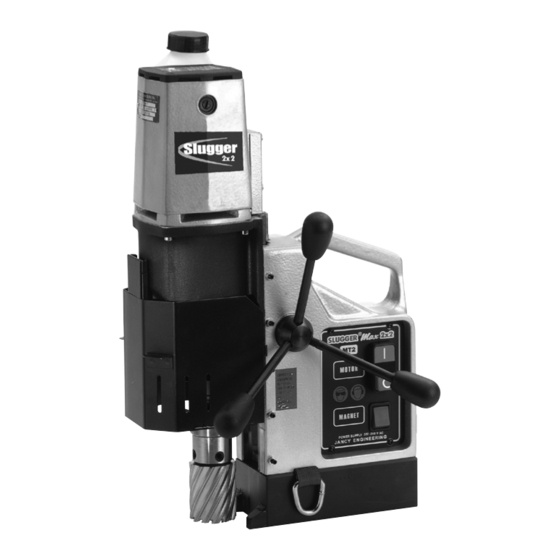

Slugger portable magnetic drilling machine

Advertisement

Slugger
Slugger Portable Magnetic Drilling Machine
EYE PROTECTION
REQUIRED
Serial #
OPERATOR'S MANUAL
WARNING!
,
before use
be sure everyone using this machine reads and understands
all safety and operating instructions in this manual
HEARING PROTECTION
NEVER PLACE
REQUIRED
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
MOdEL #17980 (120V) OR #17982 (240V)
2x2
.
LINE VOLTAGE
BEWARE OF
PRESENT
ROTATING
MACHINE PARTS
Date of Purchase
ALPHA INDUSTRIAL TOOL &
EQUIPMENT
51 Tamarack Drive
Thornhill, Ont
L3T 4 W2
Canada
PH. 905-731-1310
FAX 905-731-1044

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2x2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Slugger 2x2

  • Page 1 Slugger ™ ™ Slugger Portable Magnetic Drilling Machine OPERATOR’S MANUAL WARNING! before use be sure everyone using this machine reads and understands all safety and operating instructions in this manual ALPHA INDUSTRIAL TOOL & EQUIPMENT 51 Tamarack Drive Thornhill, Ont...
  • Page 2: Table Of Contents

    Wiring Diagram ......... 15 Other Available Slugger Drills....... . . 16 limited warranty Jancy Engineering Inc.™...
  • Page 3: Important Safety Instructions

    important safety instructions WARNING! when using electric tools basic safety precautions should always be followed to reduce risk of fire electric shock and personal injury READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE. 1. keep work Area clean Cluttered areas and benches invite injuries. •...
  • Page 4: Guideline For Shift Lever Position

    A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Do not use this tool if switches do not turn it on and off. Have defective switches replaced by authorized • service center. guideline for 2x2 shift lever position...
  • Page 5: Special Instructions

    8. Always use proper tooling. Keep cutters securely fastened. 9. Do not use dull or broken cutters. 10. Do not use Slugger drilling machines on surfaces or materials being welded. Doing so can damage the machine’s electrical components. 11. Beware of slugs ejected at end of cut. They become HOT during the cut.
  • Page 6: Grounding Instructions And Extension Cords

    If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. The 2x2 must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in Figure A.
  • Page 7: Contents Of Package

    ( before you begin ) Remove all contents from packaging and inspect to ensure no damage was incurred during shipping. Your 2x2 package should include the following: description part OPERATOR’S MANUAL LIT102B SHUNT INSTRUCTIONS 06958 WARRANTY CARD 0070342 2.5 MM HEx KEY...
  • Page 8: Machine Operation

    6. Connect machine to power source. 7. Lower Slugger cutter to surface of material to be cut. Coolant will be released down the pilot into center of Slugger cutter. Coolant flow can be stopped by lifting pilot pin off work surface. NOTE: Be sure coolant valve is open.
  • Page 9: Basic Troubleshooting

    basic troubleshooting 1. Magnetic base not holding securely Material is too thin to engage magnet. • Surface of material being drilled must be free of chips, debris, rust and mill scale. • Does size of cutter exceed machine’s rated capacity? •...
  • Page 10: Regular Maintenance

    Drill Point Breakaway 1111 lbs. on 1" plate Magnet Base Dimensions 3-1/2" x 8" Magnet Dead Lift 2657 lbs. on 1" plate Slugger Cutter Diameter (Maximum) 2" Slugger Depth of Cut (Maximum) 2" 1" note magnetic base requires minimum material...
