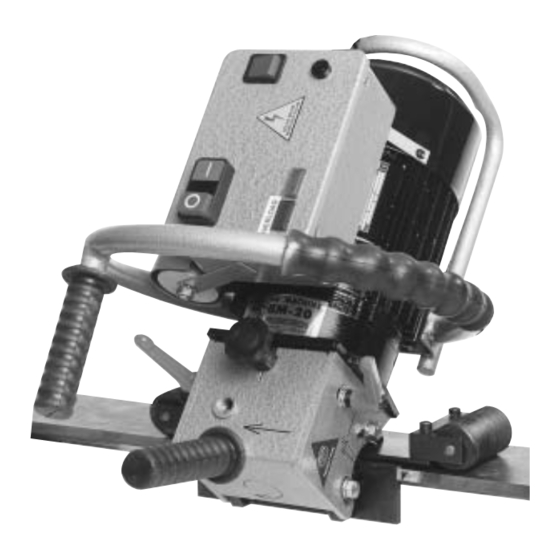

Portable beveling machine

Advertisement

BM-20
Portable Beveling Machine

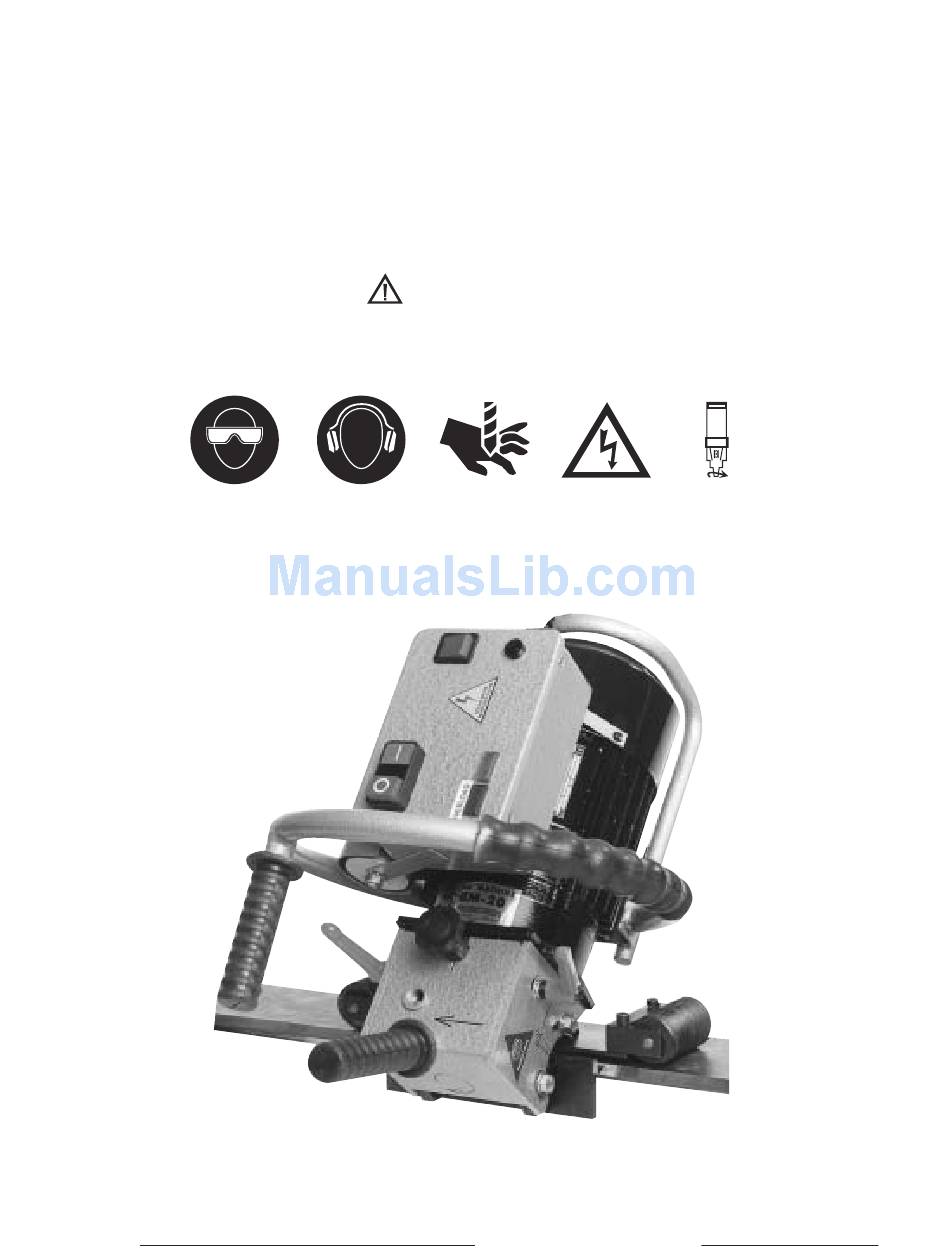

OPERATOR'S MANUAL
WARNING!
,
BEFORE USE
BE SURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
.
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL
EYE PROTECTION
HEARING PROTECTION
NEVER PLACE
LINE VOLTAGE
BEWARE OF
REQUIRED
REQUIRED
FINGERS NEAR
PRESENT
ROTATING
CUTTING AREA OR
MACHINE PARTS
MACHINE ARBOR
MODEL #BM20 (120V) OR #BM22 (240V)
Serial #
Date of Purchase

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Slugger BM-20

  • Page 1 BM-20 Portable Beveling Machine OPERATOR’S MANUAL WARNING! BEFORE USE BE SURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL EYE PROTECTION HEARING PROTECTION NEVER PLACE LINE VOLTAGE BEWARE OF REQUIRED REQUIRED FINGERS NEAR...
  • Page 2: Table Of Contents

    Portable Beveling Machine Congratulations on your purchase of a Slugger portable magnetic drilling machine. Slugger drilling machines are designed to deliver fast, efficient hole drilling performance in portable applications. Please take a moment to complete and mail your product warranty registration card. Doing so will validate your machine’s warranty period and ensure prompt service if needed.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING! WHEN USING ELECTRIC TOOLS BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE ELECTRIC SHOCK AND PERSONAL INJURY READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE. 1. Keep Work Area Clean Cluttered areas and benches invite injuries. •...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 13. Maintain Tools With Care Keep tools sharp and clean for better and safer performance. • Follow instructions for lubricating and changing accessories. • Inspect tool cords periodically and if damaged, have repaired by authorized service facility. •...
  • Page 5: Special Instructions

    SPECIAL INSTRUCTIONS 1. If you require an additional manual, please contact Jancy Engineering at (563) 391-1300 for a FREE copy. 2. Never place hands, fingers, gloves or clothing near cutting area or rotating machine parts. 3. Always disconnect machine from power source before changing inserts, clearing chips, or performing adjustments. 4.
  • Page 6: Grounding Instructions And Extension Cords

    If the cord or plug is damaged, have it repaired before using. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician. The BM-20 must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances.
  • Page 7: Contents Of Package

    FROM POWER SOURCE BEFORE MAKING ADJUSTMENTS The BM-20 beveling machine comes ready to use with 12 BMJBEV1 inserts mounted in the milling head. However, before you begin to bevel, the following must be determined (this information will affect the rate of feed, finish of bevel and life of the inserts): 1.
  • Page 8: Machine Operation

    Connect the BM-20 to grounded power source. If using an extension cord, check voltage at cord ends to ensure you will not be operating the BM-20 on a voltage drop. Route power cord so that it will not interfere with the operator or workpiece.
  • Page 9: Beveling Pipes

    3. Place machine on the edge of pipe in such a way that the milling tool touches the workpiece, and then fasten both rollers. You can now adjust machine to the desired beveled angle. note: Do not use the BM-20 on pipes under 6-1/4"...
  • Page 10: Machine Parts And List

    MACHINE PARTS AND LIST ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # ELECTRIC MOTOR BM105 SEAL L=520 BM503 HOLDER (SET) BM109 RED LIGHT INDICATOR BM504 CUSHION WASHER 6,1 BM110 SCREW M4X12 BM505 HEX. SOCKET BOLT M6X16 BM111 AMBER LIGHT INDICATOR BM506 NUT M6 BM113...
  • Page 11: Included And Optional Sets

    INCLUDED AND OPTIONAL SETS INCLUDED EQUIPMENT PIPE ATTACHMENT SET ITEM DESCRIPTION PART PIPE ATTACHMENT SET BM450 GUIDE SLIDE III BM314 CUBE BM315 ROUND WASHER 8.4 BM310 ROLLER BM312 SLEEVE BM311 HEX SOCKET BOLT M8 X 70 BM309 HEX WRENCH S=4 BM316 ANGLE BEVELING 15 °...
  • Page 12: Wiring Diagrams

    NUMBERS IN THIS DIAGRAM REFER TO NUMBERS LISTED IN THE ITEM COLUMN ON PAGE YOUR DISTRIBUTOR MANUFACTURER OF SLUGGER ® CENTERFREE CUTTERS AND PORTABLE MAGNETIC DRILLING MACHINES Tel · 563.391.1300 or Fax · 563.391.2323 2735 Hickory Grove Road · Davenport, Iowa 52804 email ·...
