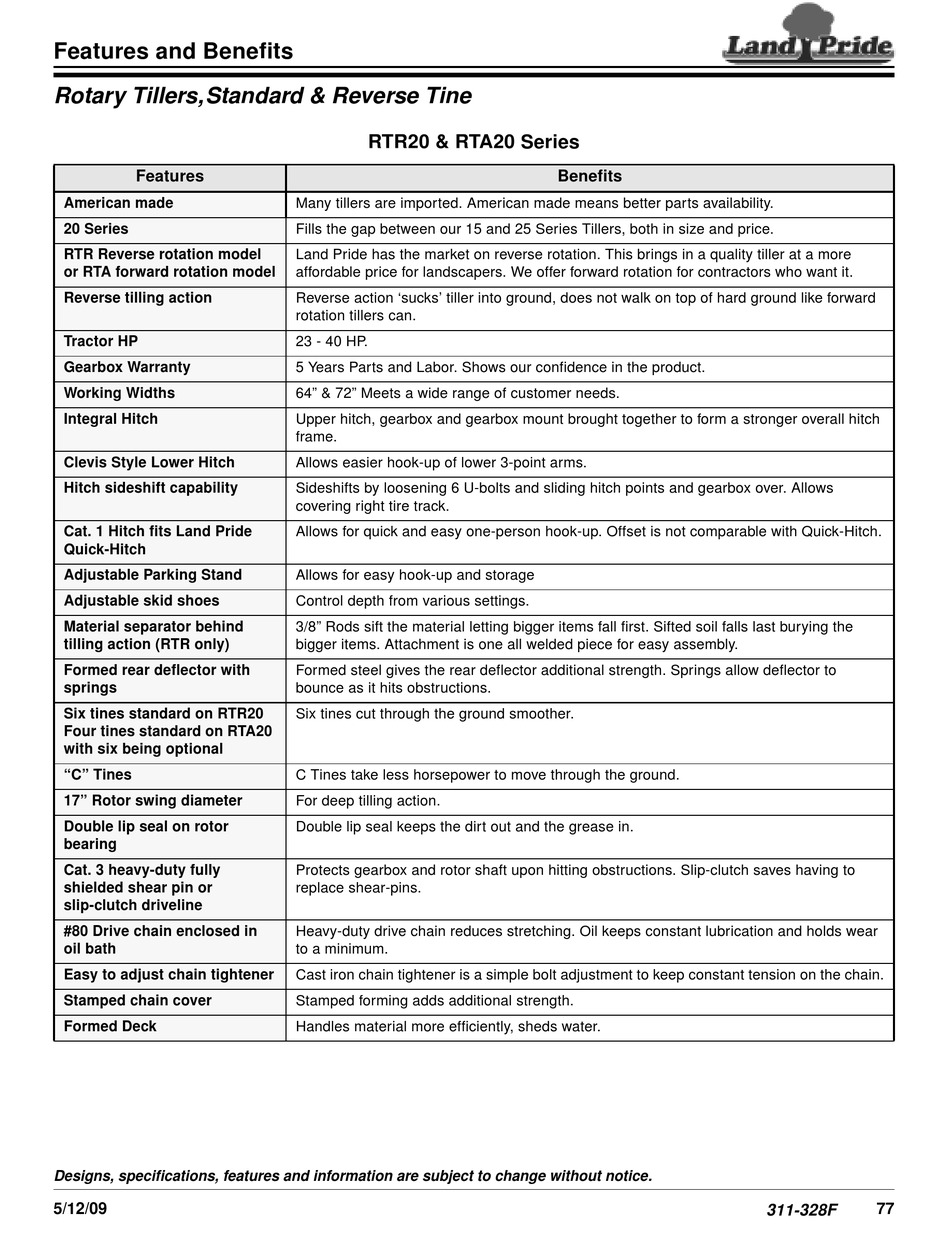

Land Pride RTA20 Series Features And Benefits

Features and Benefits
Rotary Tillers, Reverse Tine Rotation Standard & Reverse Tine
Features
American made
20 Series
RTR Reverse rotation model
or RTA forward rotation model
Reverse tilling action
Tractor HP
Gearbox Warranty
Working Widths
Integral Hitch
Clevis Style Lower Hitch
Hitch sideshift capability
Cat. 1 Hitch fits Land Pride
Quick-Hitch
Adjustable Parking Stand
Adjustable skid shoes
Material separator behind
tilling action (RTR only)
Formed rear deflector with
springs
Six tines standard on RTR20
Four tines standard on RTA20
with six being optional
"C" Tines
17" Rotor swing diameter
Double lip seal on rotor
bearing
Cat. 3 heavy-duty fully
shielded shear pin or
slip-clutch driveline
#80 Drive chain enclosed in
oil bath
Easy to adjust chain tightener
Stamped chain cover
Formed Deck
Designs, specifications, features and information are subject to change without notice.
5/12/09
RTR20 & RTA20 Series
Many tillers are imported. American made means better parts availability.
Fills the gap between our 15 and 25 Series Tillers, both in size and price.
Land Pride has the market on reverse rotation. This brings in a quality tiller at a more
affordable price for landscapers. We offer forward rotation for contractors who want it.
Reverse action 'sucks' tiller into ground, does not walk on top of hard ground like forward
rotation tillers can.
23 - 40 HP.
5 Years Parts and Labor. Shows our confidence in the product.
64" & 72" Meets a wide range of customer needs.
Upper hitch, gearbox and gearbox mount brought together to form a stronger overall hitch
frame.
Allows easier hook-up of lower 3-point arms.
Sideshifts by loosening 6 U-bolts and sliding hitch points and gearbox over. Allows
covering right tire track.
Allows for quick and easy one-person hook-up. Offset is not comparable with Quick-Hitch.
Allows for easy hook-up and storage
Control depth from various settings.
3/8" Rods sift the material letting bigger items fall first. Sifted soil falls last burying the
bigger items. Attachment is one all welded piece for easy assembly.
Formed steel gives the rear deflector additional strength. Springs allow deflector to
bounce as it hits obstructions.
Six tines cut through the ground smoother.
C Tines take less horsepower to move through the ground.
For deep tilling action.
Double lip seal keeps the dirt out and the grease in.
Protects gearbox and rotor shaft upon hitting obstructions. Slip-clutch saves having to
replace shear-pins.
Heavy-duty drive chain reduces stretching. Oil keeps constant lubrication and holds wear
to a minimum.
Cast iron chain tightener is a simple bolt adjustment to keep constant tension on the chain.
Stamped forming adds additional strength.
Handles material more efficiently, sheds water.
Benefits
77
311-328F
