Thank you for having chosen one of our products for your work. We are certain
that it will give the utmost satisfaction and be a notable help on the job.

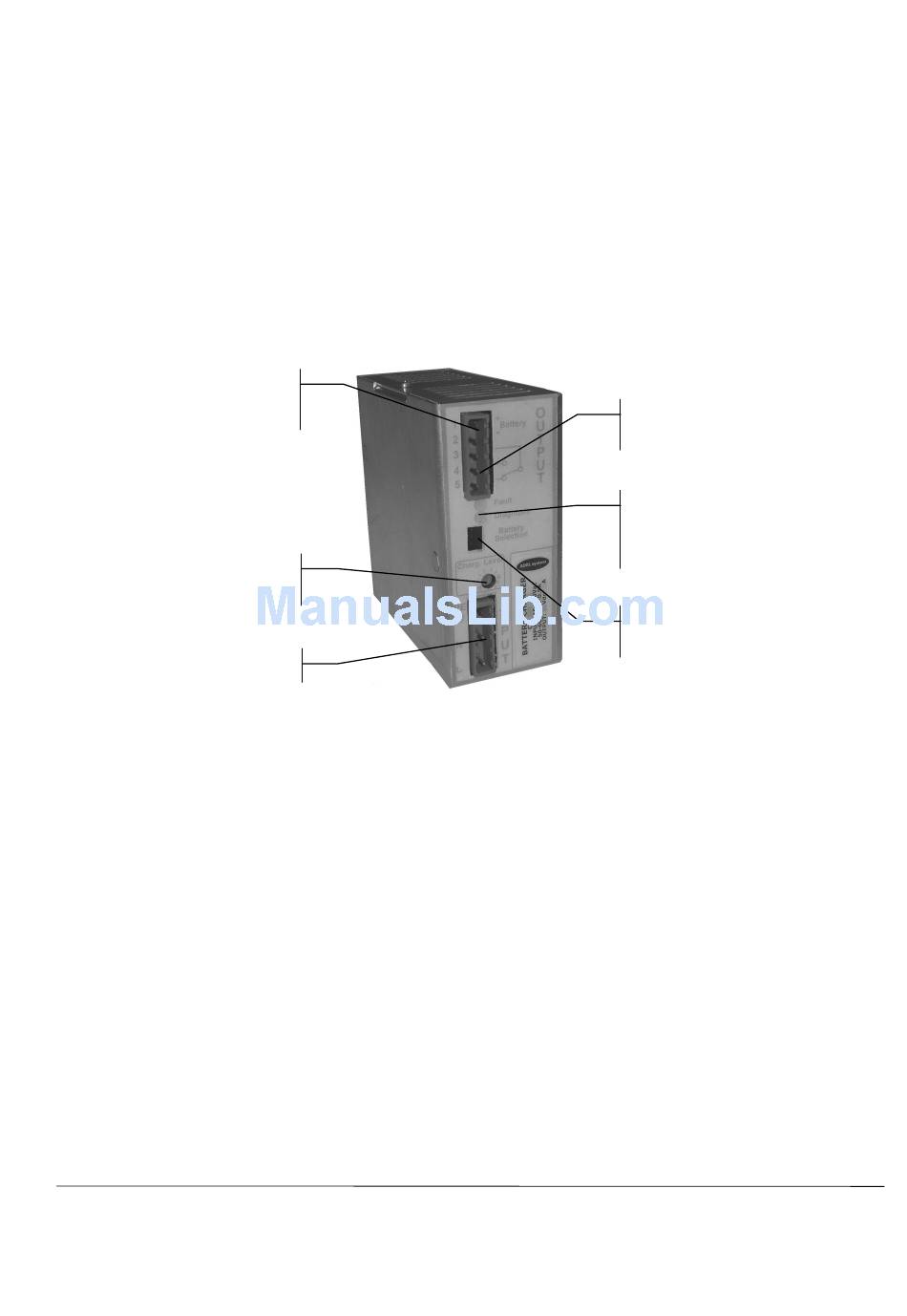

General Description:
OUTPUT N°1
Battery module
Charging Level
(not available on LC type)
Vac Ingresso
Application
CB battery charger is a range of microprocessor-power supplies witch correctly charge sealed lead-acid
batteries at all time maximizing performance and life span.
Charge the battery in multi-stage principle, Fast and Trickle and automatically the device, check the battery
quality in a lifetime to prevent any risk of damage to the battery and allow leaving the charger permanently
connected. Before begin the operations of installation consult the manual.
Mains Characteristic
•
Nominal Input Voltage: 115 - 230 Vac
•
OUTPUT 1: for connection to Battery
•
Fast and trickle battery charge In according to DIN 41773
•
Signaling: fault status of the battery (not available on LC type)
•
Overload and short circuit protections
•
Power limited Battery output
•
Safety isolation in according with EN 60950
•
Degree of protection IP20
•
Rail DIN mounting

Instruction Manual

ADEL system srl Via F. Bacone 13/E, 42029 Masone RE (Italy) – Tel. ++39-0522-345518
t e m
t e m
CB243A – CB243ALC
Intelligent Battery Charger
Fax. ++39-0522-345551 – Internet: www.adelsystem.com
Fault Status
(not available on LC type)
Monitor Led:
•
Fault
•
Diagnosis
Battery Type
Configuration Jumper
