Thank you for having chosen one of our products for your work. We are certain that it will give the utmost satisfaction and be a notable

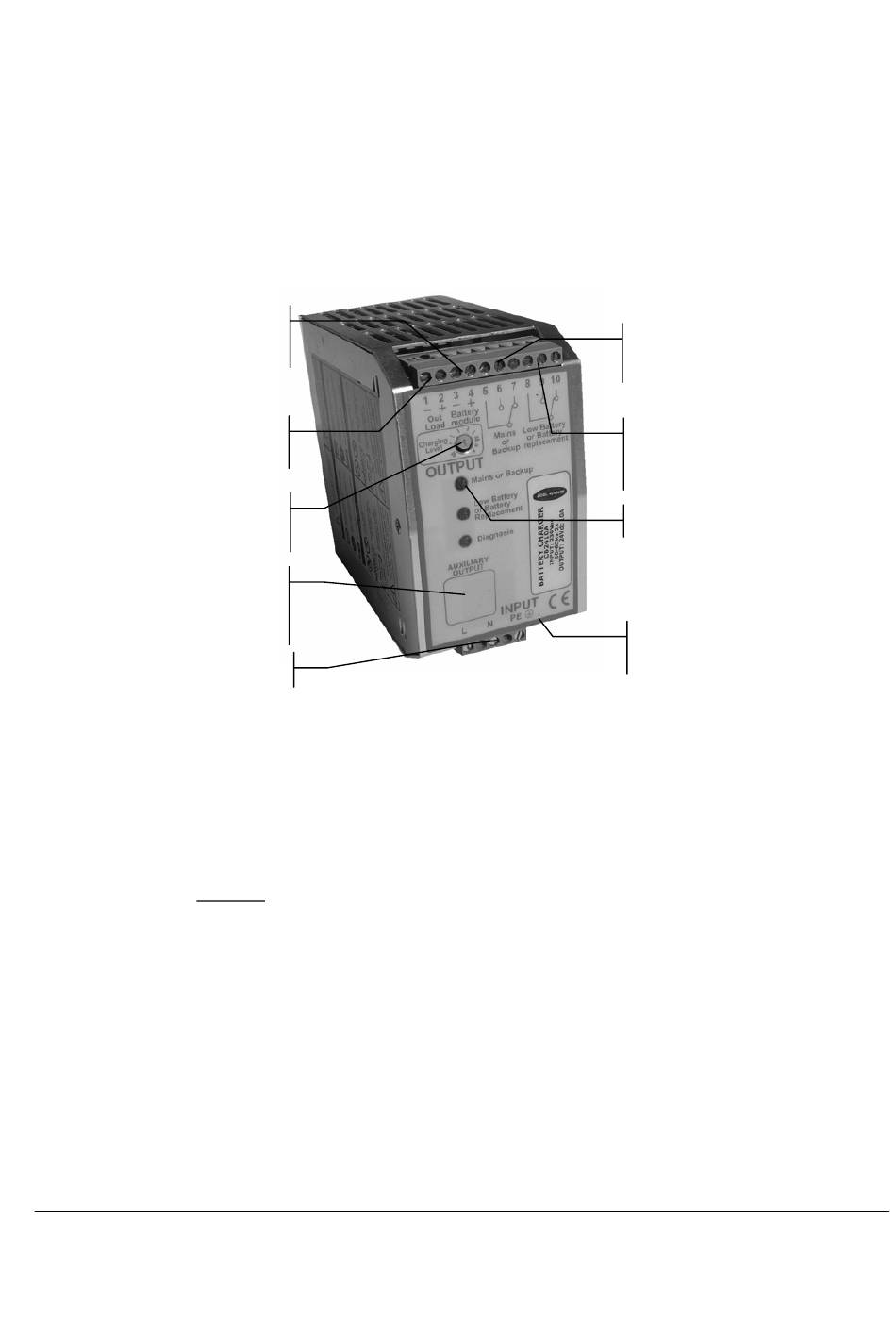

General Description:
OUTPUT N°1
Battery module
OUTPUT N°2
Not present
Charging Level
Auxiliary
Output
(CBXXX/ARJ)
Vac Input
Application
CBI battery charger is a range of microprocessor-power supplies witch correctly charge sealed lead-acid batteries at all time
maximizing performance and life span.
Charge the battery in multi-stage principle, Fast and Trickle and automatically the device, check the battery efficiency in a lifetime to
prevent any risk of damage to the battery and allow leaving the charger permanently connected. Before begin the operations of
installation consult the manual.
Mains Characteristic
•
Nominal Input Voltage: 115 - 230 Vac
•
OUTPUT 1: for connection to Battery
•
OUTPUT 2: not present
•
Fast and trickle battery charge In according to DIN 41773
•
Signaling: replace battery, low battery, mains or buffering
•
Overload and short circuit protections
•
Safety isolation in according with EN 60950
•
Degree of protection IP20
•
Rail DIN mounting
Instruction Manual
ADEL system srl Via F. Bacone 13/E, 42029 Masone RE (Italy) – Tel. ++39-0522-345518
s
t
e
m
s
t
e
m

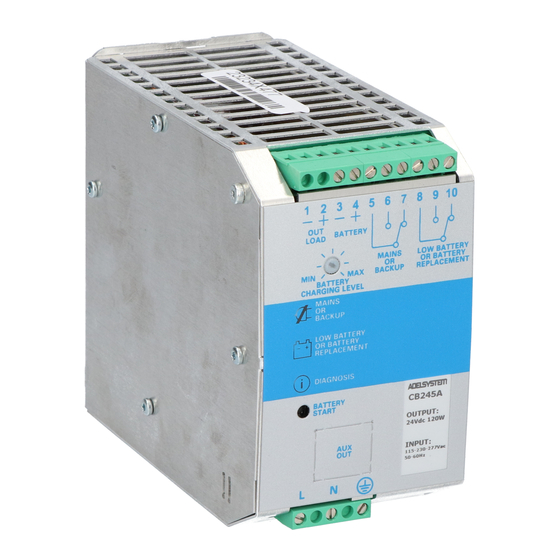

CB245ARJ
Intelligent Battery Charger
Fax. ++39-0522-345551 – Internet: www.adelsystem.com
help on the job.
Mains or
Backup
Low
Battery
or
Battery replacement
Monitor Led
Battery Type
Configuration Jumper
CB245A_R0 120W Eng.doc
Advertisement
Related Manuals for Adel System CB245ARJ
Summary of Contents for Adel System CB245ARJ
- Page 1 Safety isolation in according with EN 60950 • Degree of protection IP20 • Rail DIN mounting Instruction Manual ADEL system srl Via F. Bacone 13/E, 42029 Masone RE (Italy) – Tel. ++39-0522-345518 Fax. ++39-0522-345551 – Internet: www.adelsystem.com CB245A_R0 120W Eng.doc...
- Page 2 ________________________________________________________Battery Charger Rail mounting: Disassembling: Assembly: Place the module with the mounting rail Push the module upwards and pull. guide at the lower edge, and snap in whit an upward movement. Other modules must have a minimum vertical distance of 10 cm to this power supply in order to guarantee sufficient auto convection. Use and Connections Caution: Switch off the system before connecting the module.
- Page 3 ________________________________________________________Battery Charger Compensation Recharges in temperature (Only version XXX/ARJ-S2) Connecting to RJ45 (AUXILIARY OUTPUT) cable RJTEMP (supplied separately), the CBI is will vary the tension of battery charging in function of the temperature: • Fast Charge: -5 mV/°C • Trickle Charge: -3 mV/°C If the sensor is not connected or if the sensor is defective, the led Low Batt is on and the led Diagnosis continues to show the status of the battery: trickle charge, fast charge or recovery charge.
- Page 4 ________________________________________________________Battery Charger Features Input Data Nominal Input Voltage (2 x Vac) 110- 230 Vac Input voltage range 93 ÷ 264 Vac ≤ 14 ≤ 5 msec. Inrush Corrent (Vn – In) Frequency 47 ÷ 63 Hz Input Current (Nominal input Voltage) 1,5 - 0.9 A Internal Fuse F 4 A...
