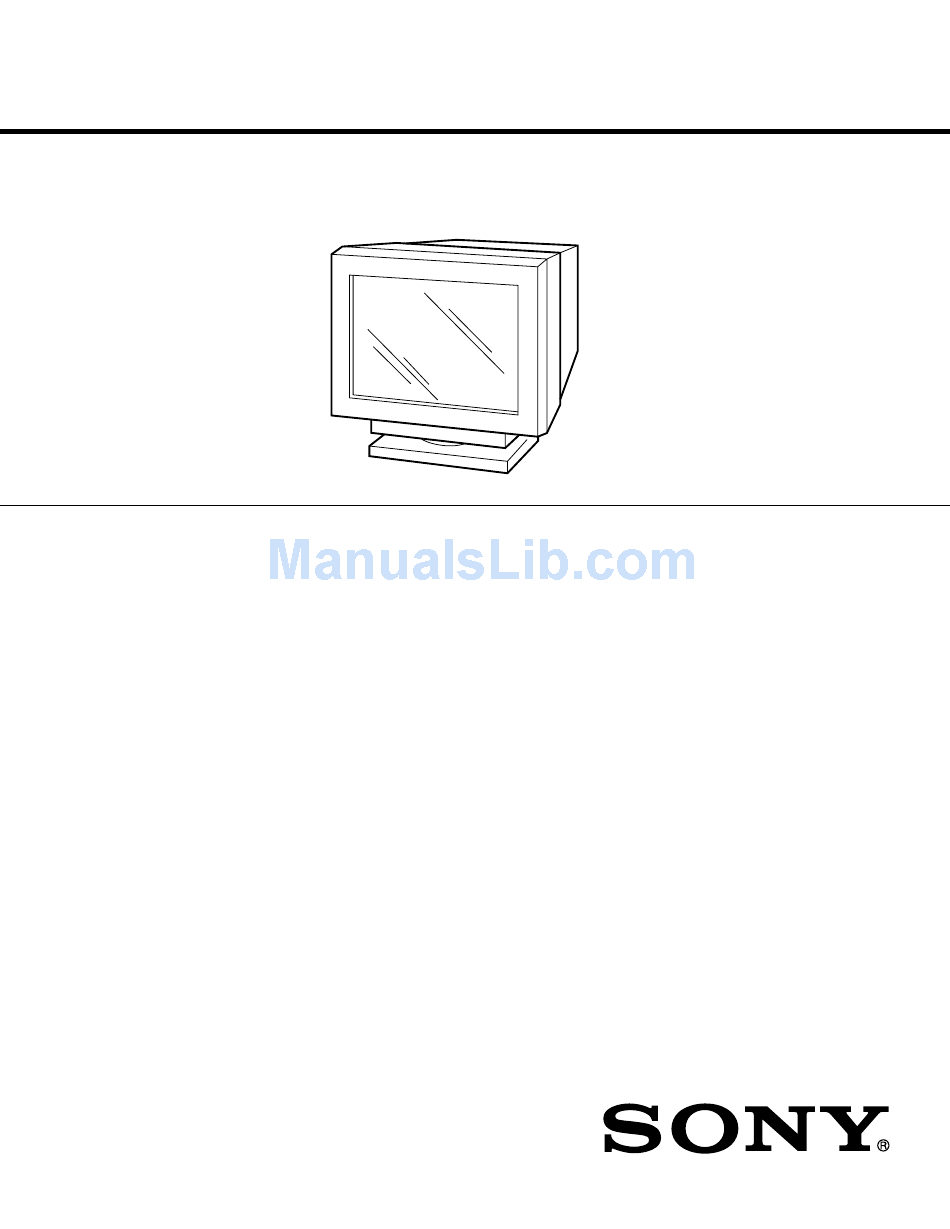

SERVICE MANUAL

CRT
Viewable image size
Resolution
Maximum
Recommended
Standard image area
Deflection frequency*
AC input voltage/current 100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A
SPECIFICATIONS
0.22 mm aperture grille pitch
21 inches measured diagonally
90-degree deflection
FD Trinitron
Approx. 403.8 × 302.2 mm (w/h)
(16 × 12 inches)
19.8" viewing image
Horizontal: 2048 dots
Vertical: 1536 lines
Horizontal: 1600 dots
Vertical: 1200 lines
Approx. 388 × 291 mm (w/h)
× 11
3
1
(15
/
/
inches)
8
2
or
Approx. 364 × 291 mm (w/h)
3
× 11
1
(14
/
/
inches)
8
2
Horizontal: 30 to 121 kHz
Vertical: 48 to 160 Hz

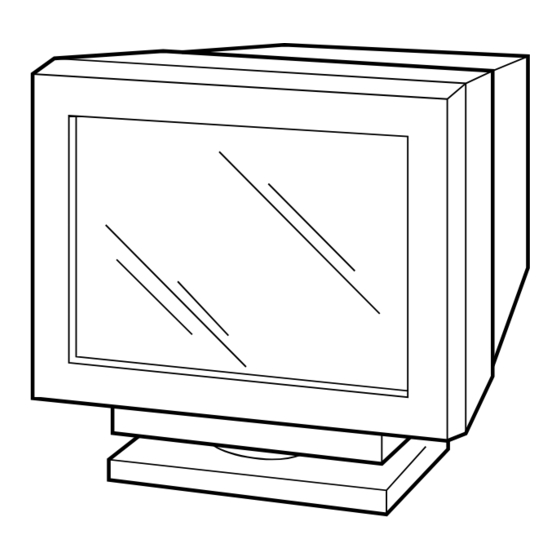

GDM-F500R
Canadian Model
Power consumption
Approx. 145 W (with no USB devices
connected)
Operating temperature
10˚C to 40˚C
Approx. 502 × 511 × 480.3 mm (w/h/d)
Dimensions
7
(19
Mass
Approx. 33 kg (72 lb 12 oz)
Plug and Play
DDC1/DDC2B/DDC2Bi,GTF**
Supplied accessories
See page 6
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of total
horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.3 µsec.
• Vertical blanking width should be more than 450 µsec.
** If the input signal is Generalized Timing Formula (GTF)
compliant, the GTF feature of the monitor will automatically
provide an optimal image for the screen.
Design and specifications are subject to change without notice.
COLOR GRAPHIC DISPLAY
US Model
AEP Model
Chassis No. SCC-L22S-A
G1
CHASSIS
× 20
× 19
1
1
/
/
/
inches)
8
8
4
