Philips HD4609 Service Manual

Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- Product meets the requirements regarding interference
suppression on radio and television.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as laid
down officially established at this moment.
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power
- Contents Kettle
- Coloursetting HD4609/00 : Bright white
HD4609/01 : Bright white/Vapor dusk
HD4609/50 : Bright white/Angel blue
HD4609/70 : Bright white/Celestial blue
- SAP coding
Published by Philips Consumer Lifestyle
09/01
: 220 - 240 V
: 50 - 60 Hz
: 900 W
: n.a.
: 100 - 800 cc
: HD4609
Printed in the Netherlands
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- No specific issues
REPAIR INSTRUCTIONS
- In case of a technical defect, kettle has to be replaced.
Only filter assy has been listed as spare part.
- De-scaling
Fill the kettle with water up to three-quarters of the
maximum level indication and press the on/off switch.
After the kettle has switched itself off, add white vinegar
(8% acetic acid) or an appropriate descaler up to the
maximum level indication.
Leave the solution in the kettle overnight.
Empty the kettle and rinse the inside thoroughly.
Repeat this procedure if there is still some scale left in the
kettle.
- Cleaning filter
Clean the fi lter by rinsing it under a running tap.
If necessary, you can use a soft nylon brush.
The scale fi lter can also be cleaned in the dishwasher or
clean the fi lter by de-scaling it in the same way as the kettle.
Let the fi lter soak in a cup of warm water with some white
vinegar or an appropriate descaler.
Take the fi lter out of the cup and rinse it thoroughly.
OPTIONAL (accessories)
- No specific issues.
© Copyright reserved

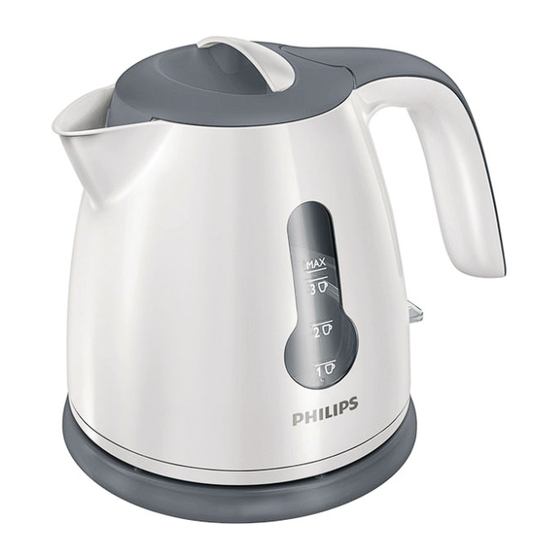

Kettle
HD4609
Subject to modification
