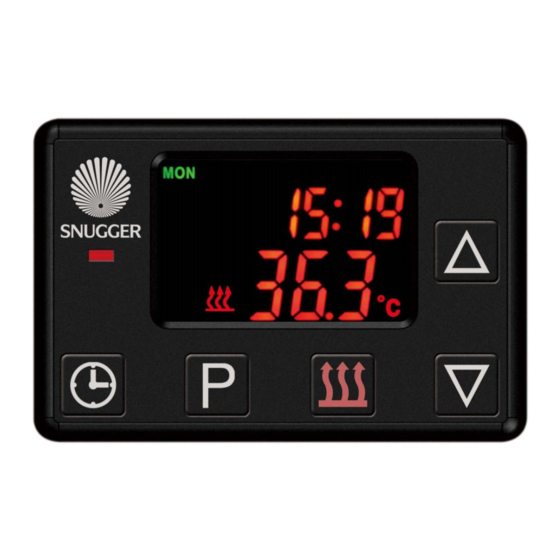

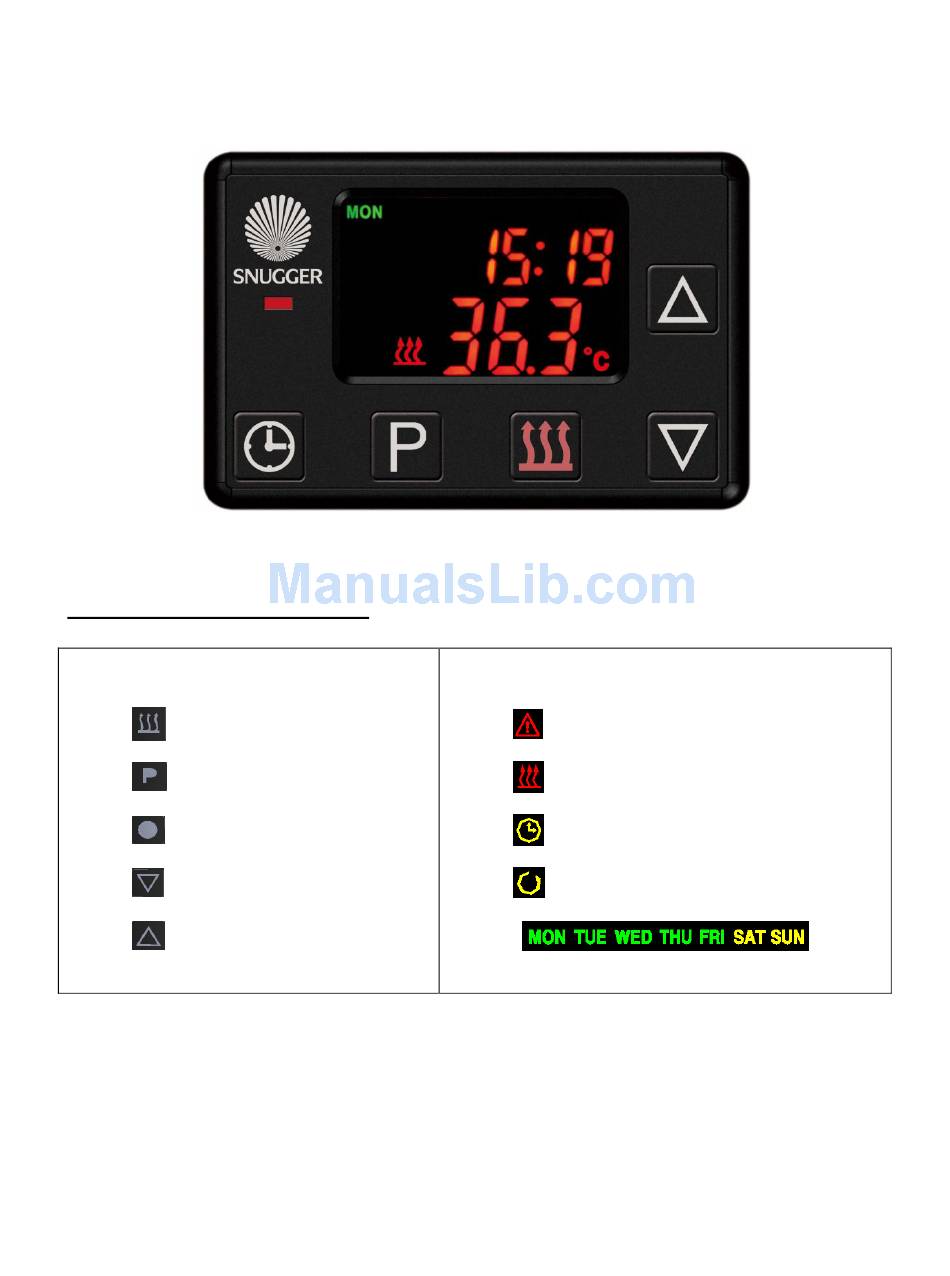

Operation Buttons and Display Icons:
Programming Keys:
1
On / Off
2
Program
3
Time
4
Down
5
Up
@BCL@7C2451F1.doc
Snugger Heater
7 Day Timer Operation Instructions
Display Icons:
1
6
Fault
7
Heating Mode
8
Single Programmed Start
9
Multiple Programmed Starts
10
"Week"
Oct 28, 2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7 Day Timer and is the answer not in the manual?

Questions and answers

Summary of Contents for Snugger 7 Day Timer

  • Page 1 Snugger Heater 7 Day Timer Operation Instructions Operation Buttons and Display Icons: Programming Keys: Display Icons: Fault On / Off Program Heating Mode Time Single Programmed Start Down Multiple Programmed Starts “Week” @BCL@7C2451F1.doc Oct 28, 2013...
  • Page 2 On / Off Control: displays and heater will begin start-up Press to start heater Set Desired Temperature displays for 5 sec. Ambient Temperature displays after 5 sec. display disappears and heater begins shut-down Press to stop heater Note: If the Multiple Start Program is activated, the will be displayed.
  • Page 3 Establishing Single Programmed Start Press once Flashes Press to enter setting mode Flashes Active Selection Flashes Press to alternate between day, hour, minute & heater run time settings. After 10 seconds without activity, current setting is saved. Press to adjust settings Remains displayed to indicate that program is activated and will operate the heater once for the assigned run time.
  • Page 4 Checking Sensor Parameters Press to start heater are displayed Display enters Sensor Display Mode Press and hold for 5-10 seconds Displays various sensor readings as illustrated in “Sensor Press to toggle through sensor Table” readings. Display returns to operation mode Press to exit or wait 10 seconds are displayed...
  • Page 5 Setting System Parameters: Displays Parameter Number and current value Press and hold both for 10-15 seconds Displays Parameter Number and current value Press to toggle through the parameter settings Displays Parameter Number and changed value Press to adjust current settings Returns to previous display mode Press to save parameter setting changes and exit...
