Land Pride AFM4214 Series Specifications & Capacities

Specifications & Capacities
All Flex Mowers
Description
Discharge Type Rear
Cutting Width 14'-0"
Overall Width 14'-3"
Transport Height 7'-7 1/2"
Transport Width 6' - 8"
Overall Length 14'-10" Mowing Position
12'-11" Transport Position
Machine Weight W/15" tires = 3,000 lbs.
W/18" tires = 3,150 lbs.
Tractor Horsepower Minimum 40 HP / Maximum 70 HP
Hitch Pull Type with Adjustable Clevis and
Safety Tow Chain
Tongue Support 2,200 lb. Capacity Screw Jack
Gearbox Support 3/8" Steel Channel
Gearboxes 540 RPM
Gearbox Lubrication Gear Lube 80-90W EP
Gearbox Oil Capacity 3 - Wings: 3.5 Pints
SD Splitter: 2.125 Pints or
OMNI Splitter: 2.5 Pints
Anti-Scalp Roller Front Center and
Outside Deck Corners
Main Driveline (1) Cat. lV Constant Velocity
with Slip Clutch
Deck Drivelines (3) Cat. II
Deck Size & Quantity 3 each / 60"
Deck Overlap 6"
Deck Thickness 3/16"
Designs, specifications, features and information are subject to change without notice.
8
AFM4214 Model
Specification / Capacity
(1)-Splitter & (3)-Wing

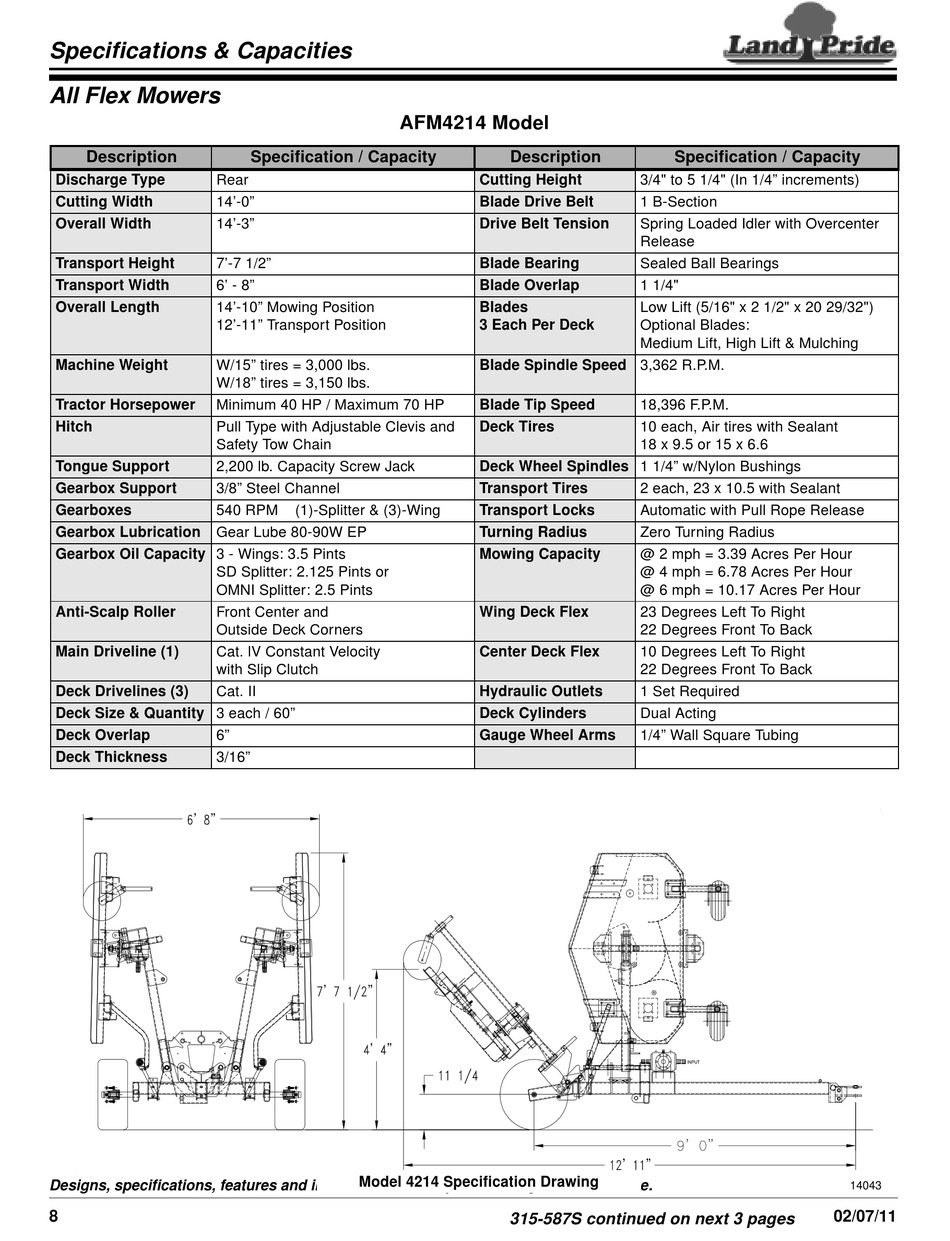

Model 4214 Specification Drawing
