Land Pride AFM4214 Series Specifications & Capacities

Specifications & Capacities
All Flex Mowers
Description
Discharge Type Rear
Cutting Width 14'-0"
Overall Width 14'-3"
Transport Height 7'-7 1/2"
Transport Width 6' - 8"
Overall Length 14'-10" Mowing Position
12'-11" Transport Position
Machine Weight W/15" tires = 3,000 lbs.
W/18" tires = 3,150 lbs.
Tractor Horsepower Minimum 40 HP / Maximum 70 HP
Hitch Pull Type with Adjustable Clevis and
Safety Tow Chain
Tongue Support 2,200 lb. Capacity Screw Jack
Gearbox Support 3/8" Steel Channel
Gearboxes 540 RPM
Main Driveline (1) Cat. lV Constant Velocity with Slip
Clutch when wings are conventional
Deck Drivelines (3) Cat. II with or without Slip Clutch
Cutting Height 3/4" to 5 1/4" (In 1/4" increments)
Deck Size & Quantity 3 each / 60"
Deck Overlap 6"
Deck Thickness 3/16"
Anti-Scalp Roller Front Center and
Outside Deck Corners
Designs, specifications, features and information are subject to change without notice.
7
AFM4214 Series
Specification / Capacity
(1)-Splitter & (3)-Wing

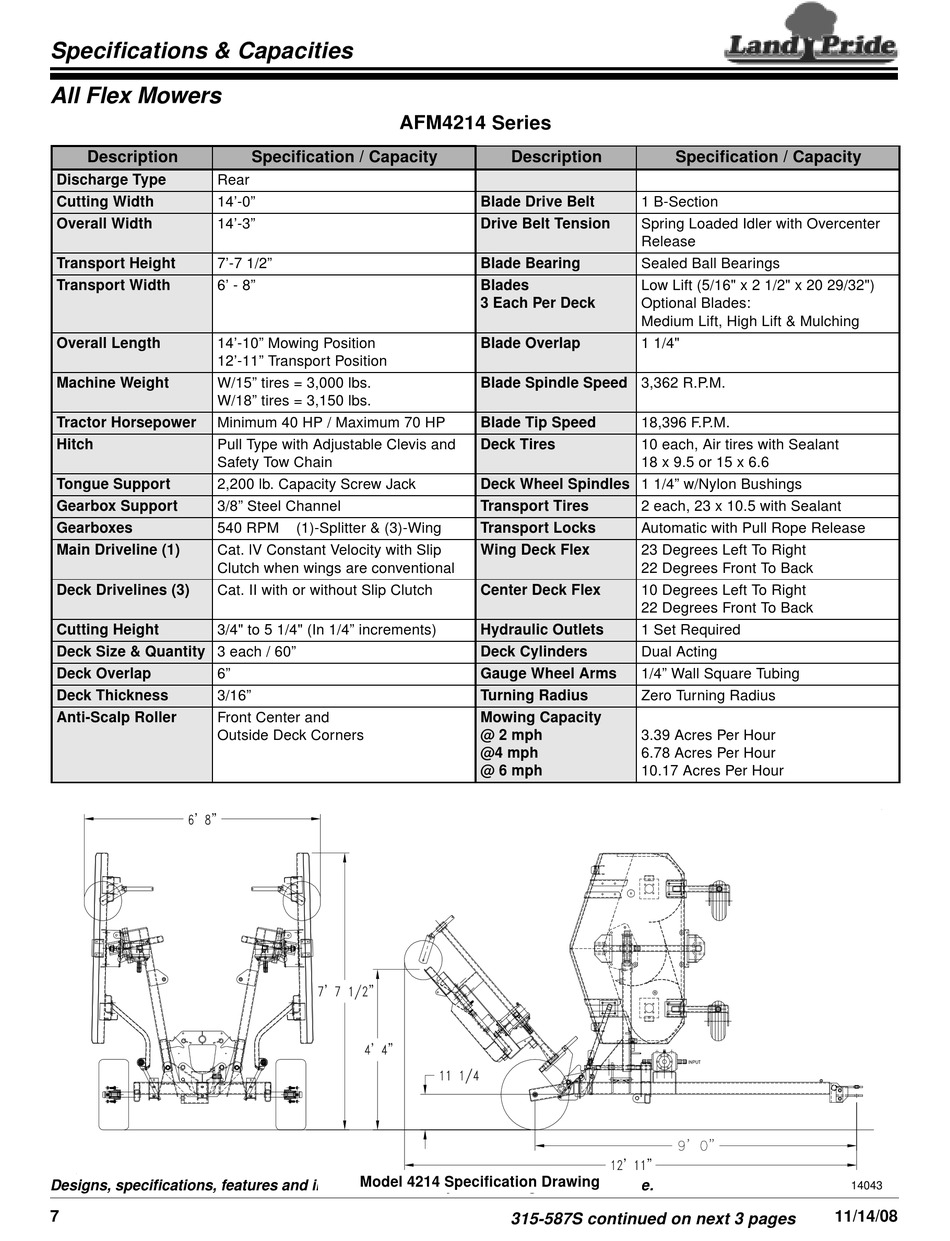

Model 4214 Specification Drawing
Description
Blade Drive Belt 1 B-Section
Drive Belt Tension Spring Loaded Idler with Overcenter
Release
Blade Bearing Sealed Ball Bearings
Blades Low Lift (5/16" x 2 1/2" x 20 29/32")
3 Each Per Deck Optional Blades:
Medium Lift, High Lift & Mulching
Blade Overlap 1 1/4"
Blade Spindle Speed 3,362 R.P.M.
Blade Tip Speed 18,396 F.P.M.
Deck Tires 10 each, Air tires with Sealant
18 x 9.5 or 15 x 6.6
Deck Wheel Spindles 1 1/4" w/Nylon Bushings
Transport Tires 2 each, 23 x 10.5 with Sealant
Transport Locks Automatic with Pull Rope Release
Wing Deck Flex 23 Degrees Left To Right
22 Degrees Front To Back
Center Deck Flex 10 Degrees Left To Right
22 Degrees Front To Back
Hydraulic Outlets 1 Set Required
Deck Cylinders Dual Acting
Gauge Wheel Arms 1/4" Wall Square Tubing
Turning Radius Zero Turning Radius
Mowing Capacity
@ 2 mph 3.39 Acres Per Hour
@4 mph 6.78 Acres Per Hour
@ 6 mph 10.17 Acres Per Hour
315-587S continued on next 3 pages
Specification / Capacity
