www.SentryUS.com
www.ZRFID.com
Additional Technology Security Inc.
dba: Sentry US
5500 Stewart Avenue
Fremont, CA 94538
E-mail: info@SentryUS.com
Tel: 1-800-916-8783
International: 510-279-9992
ZRFID is an affiliate of Sentry US
Specialized in Access Control Products
Copyright © 2010~2012.
R201205-V02
24

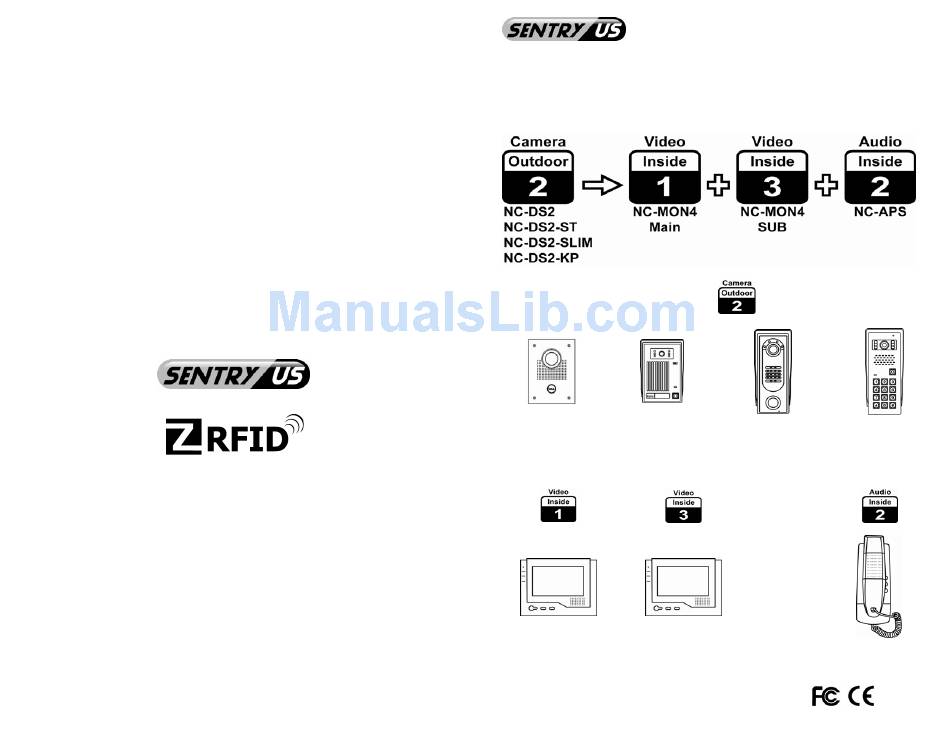

Color IR Camera & Video
Intercom System - 24 Series
Color IR Camera Outdoor Stations: Max.
Standard
NC-DS2
NC-DS2-ST
5.91"(W)x9.06"(H)x1.69"(D)
3.54"(Wx5.12"(H)x1.69"(D)
Recessed
Surface
Color Monitor Inside Stations:
Main Monitor
Sub Monitor
NC-MON4
NC-MON4-SUB
9.45"(W) x 6.89"(H) x 1.5"(D)
9.45"(W) x 6.89"(H) x 1.5"(D)
Surface
Surface
Copyright © 2010~2012. All rights reserved.
www.SentryUS.com
Operation & Installation Manual
Slim Type
With Keypad
NC-DS2-SLIM
NC-DS2-KP
2.17"(W)x5.12"(H)x1.54"(D)
2.95"(W)x7.48"(H)x1.77"(D)
Surface
Surface
Audio Phone Set
NC-APS
3.0"(W) x 9.06"(H) x 2.31"(D)
Surface
R201205-V02
RoHS
Advertisement
Related Manuals for Sentry US NC-DS2
Summary of Contents for Sentry US NC-DS2
- Page 1 9.45”(W) x 6.89”(H) x 1.5”(D) 9.45”(W) x 6.89”(H) x 1.5”(D) 3.0”(W) x 9.06”(H) x 2.31”(D) Surface Surface Surface ZRFID is an affiliate of Sentry US Specialized in Access Control Products RoHS Copyright © 2010~2012. All rights reserved. Copyright © 2010~2012.
- Page 2 • IP55 Rating; 12V~14.5V DC, 100mA • 3.54” x 5.12” x 1.69” 90mm x 130mm x 43mm NC-DS2-SLIM NC-DS2-KP (code only) • 1/3” CCD; 420 TVL; 0.05 Lux • 1/3” CCD; 420 TVL; 0.05 Lux • 3.6mm Lens • 3.6mm Lens •...
-
Page 3: Table Of Contents
PARTS & FUNCTIONS – COLOR MONITOR INSIDE STATION ………………...… 10-11 PARTS & FUNCTIONS – AUDIO PHONE SET ………………………………..………… 11 WIRING CONNECTION SYSTEM DIAGRAM ……...…………………………………..… 12 INSTALLATION ….………………………………………..…….………………..……… 1-14 OPERATION …………………………………………………………………..………… 15-17 CODE ACCESS FOR NC-DS2-KP ……………………………………………….…… 18-19 Proximity ID Reader Mifare IC Reader SPECIFICATIONS ……………………………………………………………………..… 19-20 ACR-EM26STA... -
Page 4: Features
• 3.54” x 5.12” x 1.69” B. Electric Door Strikes for Wood Door 90mm x 130mm x 43mm NC-DS2-SLIM NC-DS2-KP (code only) • 1/3” CCD; 420 TVL; 0.05 Lux • 1/3” CCD; 420 TVL; 0.05 Lux • 3.6mm Lens • 3.6mm Lens •... -
Page 5: Package Contents
Working Current 2 min Talk Time Working NC-DS2-ST 14°F ~ 131°F / -10°C ~ 55°C • One (1) NC-DS2 -ST Temperature o Three (3) Short Mounting Screws Surface Mounting Type o Three (3) Wall Anchors 9.45” x 6.89” x 1.5” / 240mm x 175mm x 38mm... - Page 6 Resalable Condition. Absolutely No Returns will be accepted if any component is missing/damaged. IMPORTANT NOTE! The Main monitor (NC-MON4) and Sub monitor (NC-MON4-SUB) must be used with Sentry US’s 14.5V DC power supply (AC-POWERDC) and each monitor requires its own power supply.
-
Page 7: Application Diagram
CODE ACCESS FOR NC-DS2-KP APPLICATION DIAGRAM The original factory defaulted Programming / Master Code is 1234. Input a 4 digit password to have the door strike or the lock unlocked. Change the Master Code Shut down the power of the unit by pressing down and holding the button. - Page 8 NC-DS2 Communication Among The Optional Monitors & Audio NC-DS2-ST NC-DS2-SLIM * Dialogue among the monitors, outdoor stations, and audio is possible only when the image of the visitor is displayed on the monitor screen.
- Page 9 Monitor NC-DS2-KP * Pass Code Additional: Light Sensor LED Indicator C. Keypad Access Door Lock Requires a separate power supply...
-
Page 10: Parts & Functions - Color Monitor Inside Station
PARTS & FUNCTIONS - COLOR MONITOR INSIDE STATION OPERATION NC-MON4 & NC-MON4-SUB Visitor Call Icon Description Icon Description Microphone Speaker Monitor Talking Volume Hang Off Brightness Door Lock Releasing Chrome/Contrast Talking System Terminal TFT Display/CRT Calling NC-MON4 - Main... -
Page 11: Parts & Functions - Audio Phone Set
NC-DS2-KP NC-MON4-SUB AUDIO PHONE SET PARTS & FUNCTIONS NC-MON4 & NC-MON4-SUB NC-APS Instructions: System Cable: Non-STP core cable, wire > 0.5mm , from Outdoor Station to the farthest monitor < 200ft / 70m. Each monitor should be paralleled. One Main monitor can extend up to 3 Sub monitors. -
Page 12: Wiring Connection System Diagram
WIRING CONNECTION SYSTEM DIAGRAM INSTALLATION NC-DS2 Door Lock NC-DS2-ST 1. Red: Voice 2. Blue: Ground 3. Yellow: Power (12V DC) 4. White: Video Requires a separate power supply Note: Socket CN1 is just retained for outdoor station in alone system (like as an outdoor unit is matched with an indoor unit).
