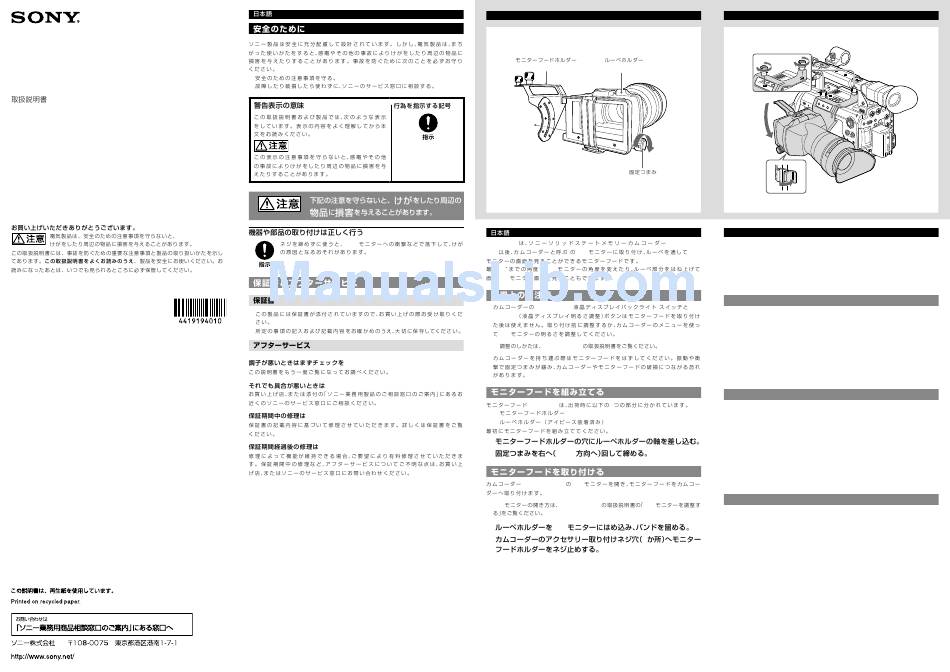

Sony CBK-MH01 Operating Instructions

4-419-194-01 (1)
Monitor Hood
Operating Instructions
CBK-MH01
© 2011 Sony Corporation
Printed in Japan
ˎ ˎ
ˎ ˎ
LCD
ˎ ˎ
ˎ ˎ
A
Monitor hood holder Magnifying lens holder
1
2
Fixing knob
CBK-MH01
F3L( ) LCD
75 LCD
LCD
ˎ ˎ LCD B.LIGHT( )
BRIGHT
LCD
˜ ˎ PMW-F3K/F3L
ˎ ˎ
CBK-MH01 2
ˎ ˎ
ˎ ˎ
1
2
LOCK
PMW-F3K/F3L LCD
˜ ˎ LCD PMW-F3K/F3L LCD
1 LCD
2 2
B
2
1
English
PMW-F3K/
The CBK-MH01 Monitor Hood is designed to be attached to the LCD monitor of
LCD the PMW-F3K/F3L Solid-State Memory Camcorder (hereinafter "the camcorder")
to enable viewing the screen of the LCD monitor through the magnifying lens of
the CBK-MH01.
The CBK-MH01 allows you to adjust the angle of the LCD monitor within 75
degrees or to view the LCD monitor screen directly by flipping up the eyepiece.
Precautions
LCD
ˎ ˎ
The LCD B.LIGHT (LCD backlight) switch and LCD BRIGHT (LCD brightness)
button cannot be operated after the monitor hood has been mounted on
the camcorder. Operate the switch/button before mounting or use the
camcorder's menu to adjust the brightness of the LCD monitor.
For the adjustment, refer to the camcorder's Operating Instructions.
ˎ ˎ
Detach the monitor hood before transporting the camcorder. Otherwise the
fixing knob may be loosened by shock or vibrations and cause damage to the
camcorder and/or the monitor hood.

Assembling the Monitor Hood
The CBK-MH01 Monitor Hood comes from the factory with the following two
pieces:
ˎ ˎ
Monitor hood holder
ˎ ˎ
Magnifying lens holder (with the eyepiece mounted)
First assemble the monitor hood.
1
Insert the axis on the magnifying lens holder into the hole on
the monitor hood holder.
 2
Tighten the fixing knob by rotating it clockwise (toward the
LOCK direction).
Attaching the Monitor Hood to the Camcorder
Open the LCD monitor on the PMW-F3K/F3L camcorder and attach the monitor
hood to the camcorder.
For how to open the LCD monitor, refer to "Adjusting the LCD Monitor" in the camcorder's
Operating Instructions.
1
Fit the magnifying lens holder onto the LCD monitor and
fasten the buckle of the belt.
2
Tighten the two screws on the monitor hood holder in the
accessory mounting screw holes on the camcorder.


