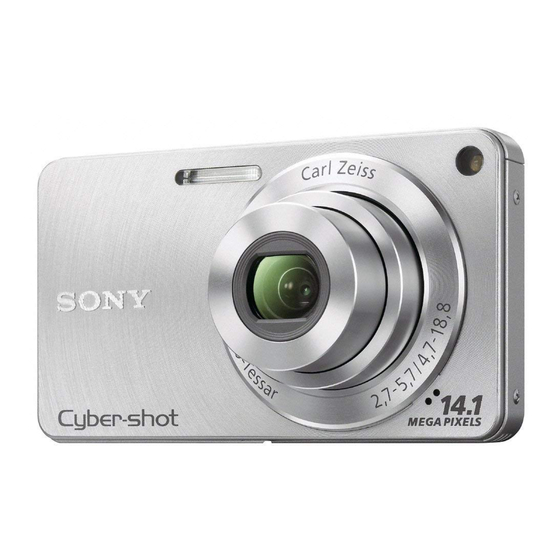

Sony DSC-W350 Service Manual
Hide thumbs Also See for DSC-W350:

Advertisement

SERVICE MANUAL
Ver. 1.0 2010.01
Internal memory
Internal memory
ON BOARD
ON BOARD
SERVICE NOTE (Check the following note before the service.)
1-1. PRECAUTION ON REPLACING THE SY-242 BOARD
1-2. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
1-3. HOW TO WRITE DATA TO INTERNAL MEMORY
1-4. SELF-DIAGNOSIS FUNCTION
1-5. PROCESS AFTER FIXING FLASH ERROR
1-6. ORNAMENTAL RING A OR BARRIER ASSY REPLACING METHOD
1-7. OPTICAL STEPING MOTOR (F1380) REPLACING METHOD
1-8. DC MOTOR WORM A ASSY REPLACING METHOD
1-9. CAM TUBE BLOCK ASSY AND STRAIGHT TUBE LUBRICATED ASSY AND
1 GROUP FRAME REPLACING METHOD
1-10. FINAL INSPECTION
The components identified by
Les composants identifiés par
mark 0 or dotted line with mark
une marque 0 sont critiques pour
0 are critical for safety.
la sécurité.
Replace only with part number
Ne les remplacer que par une piè-
specified.
ce portant le numéro spécifié.
DSC-W350_L2
9-852-742-31
DSC-W350
LEVEL
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Japanese Model
Tourist Model
Photo: Silver
DIGITAL STILL CAMERA
Ver.
Date
2
1.0
2010.01
Official Release
E Model
Sony EMCS Co.

Revision History

History
Contents
985274231.pdf
S.M. Rev.
issued
2010A0800-1
© 2010.1
Published by Tokai TEC

Advertisement

Table of Contents
loading

Summary of Contents for Sony DSC-W350

  • Page 1: Revision History

    0 sont critiques pour 0 are critical for safety. la sécurité. Replace only with part number Ne les remplacer que par une piè- specified. ce portant le numéro spécifié. 2010A0800-1 DSC-W350_L2 © 2010.1 Sony EMCS Co. 9-852-742-31 Published by Tokai TEC...
  • Page 2: Specifications

    – ENGLISH – – JAPANESE – 概略仕様 SPECIFICATIONS 本体 [入出力端子] バッテリーチャージャー Camera [Input and Output connectors] BC-CSN/BC-CSNB battery マルチ端子Type3 BC-CSN/BC-CSNB Multi use terminal Type3 charger [システム] (AV出力 (SD/HDコンポーネント) / 定格入力:AC 100 V ~ 240 V、 [System] (AV-out(SD/HD Component)/ Power requirements: AC 100 V to 撮像素子:7.76 mm (1/2.3型)...
  • Page 3: Safety Check-Out

    CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU 1. 注意事項をお守りください。...
  • Page 4: Service Note

    1. SERVICE NOTE – ENGLISH – 1-1. PRECAUTION ON REPLACING THE SY-242 BOARD 1-2. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) DESTINATION DATA When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting.
  • Page 5: How To Write Data To Internal Memory

    – ENGLISH – 1-3. HOW TO WRITE DATA TO INTERNAL MEMORY 1-4. SELF-DIAGNOSIS FUNCTION Usually, the camera has been set so as to disable the data writing from the PC to the internal memory of the camera. 1-4-1. Self-diagnosis Function 1-4-2.
  • Page 6: Process After Fixing Flash Error

    – ENGLISH – 1-4-3. Self-diagnosis Code Table 1-5. PROCESS AFTER FIXING FLASH ERROR Self-diagnosis Code When “FLASH error” (Self-diagnosis Code E : 91 : 01) occurs, to prevent any abnormal situation caused by high voltage, setting of the flash is changed automatically to disabling charge and flash setting. After fixing, this setting needs to be deactivated.
  • Page 7 – JAPANESE – 1-1. SY-242基板交換時の注意 1-2. 内蔵メモリーのデータコピーおよび消去方法 仕向けデータ 内蔵メモリーのデータコピーまたは消去はホーム画面の操作から実行可能です。 (消去する場合は内蔵メモリーの初期化を 行います。 ) 補修用基板と交換する時,補修用基板に書かれている仕向けデータは元の設定と違っている場合があります。 Adjust StationからAdjust Manualを起動させて 「DESTINATION DATA WRITE」 を実行させてください。 Note1:SY-242基板交換の際は,基板交換前に内蔵メモリーのデータを消去して下さい。 リストアデータ Note2:SY-242基板交換の際は,基板交換後に内蔵メモリーのフォーマットおよび初期化を実行して下さい。 補修用基板と交換する時,交換前の基板よりデータを取得してください。 データの取得はAdjust StationからAdjust Manualを起動させて 「RESTORE DATA」 を実行させてください。 本機で取得されるデータは下記になります。 ・ USB SERIAL No. 内蔵メモリーのコピー方法 ・ Angular Velocity Sensor ・ AWB standard data input & check, Color reproduction check Note:交換前の基板よりデータが読み取れない場合は,SY-242基板とレンズを同時に交換する必要があります。 PMB Portableについて 本機の内蔵メモリー内にはPMB Portableが書き込まれています。 補修用SY-242基板は,PMB Portableが書き込まれた状態で供給されます。 2 MENU     USBシリアルNo. セットは,1台毎に異なる固有のID (USB Serial No.) を書き込んだ後,出荷されています。 ...
  • Page 8 – JAPANESE – 1-3. 内蔵メモリーへデータを書き戻す方法 1-4. 自己診断機能 通常は,PCからカメラの内蔵メモリーへデータを書き込むことはできない設定になっています。 1-4-1. 自己診断機能について 1-4-2. 自己診断表示 基板交換後などに,内蔵メモリーへデータを書き戻す場合には,この設定を一時的に変更する必要があります。 本機の動作に不具合が生じたとき,自己診断機能が働き, 本機の動作に不具合が生じたとき, LCD画面にアルファベッ 設定の変更は,Adjust StationからAdjust Manualを起動させて書き込み許可ツール (Write Enable Tool) を使用します。 LCD画面に,どう処置したらよいか判断できる表示を行い トと4桁の数字が表示され,3.2Hzで点滅します。この5文 ます。自己診断機能については取扱説明書にも掲載されて 字の表示によって対応者分類および不具合の生じたブロッ 書き戻し方法 います。 クの分類,不具合の詳細コードを示します。 1) Adjust StationからAdjust Manualを起動する。 (Write Enable Tool) ボタンをクリックする。 3) “Activate Write Enable Mode”ボタンをクリックする。 4) 設定の変更が終了すると,次のメッセージが表示されますので“OK”ボタンをクリックする。 5) ドライバを元に戻して、カメラとPCをマスストレージ接続する。 6) PCに読み出しておいたデータをカメラの内蔵メモリーに書き込む。 7) カメラとPCの接続を解除し,カメラの電源をOFFにする。 注意: カメラの電源をOFFにすることにより,書き込み許可の設定が解除されます。 DSC-W350_L2...
  • Page 9 – JAPANESE – 1-4-3. 自己診断コード表 1-5. フラッシュエラー発生時の対処法 自己診断コード 本機はフラッシュエラー(自己診断コードE:91:01) が発生した場合,高電圧による異常を防止するために自動的にフラッ シュ充電および発光禁止の設定になります。 フラッシュエラー発生後はエラーの解除を行う必要があります。エラーの解除はホーム画面から初期化操作を実行すること により行います。 対 症状/状態 対応/方法 ブロック 詳細 応 機能 コード 者 フラッシュエラーの解除方法 内蔵メモリーに メディアエラー が 電源を入れ直す。 あった。 内蔵メモリーにフォーマットエラー 内蔵メモリーをフォーマットする。 があった。 フォーマットしていないメモリー メモリーカードをフォーマットする。 カードを入れた。 1 MENU     メモリーカードが壊れている。 新しいメモリーカードに交換する。  ...
  • Page 10 – ENGLISH – 1-6 . ORNAMENTAL RING A OR BARRIER ASSY REPLACING METHOD 1-7 . OPTICAL STEPING MOTOR (F1380) REPLACING METHOD Removal Removal 1 Turn on the power switch and extend the lens. 1 Remove four screws, and remove the Rear Mirror Plate. 2 Detach the battery.
  • Page 11 – ENGLISH – 1-8. DC MOTOR WORM A ASSY REPL ACING METHOD 1-9. CAM TUBE BLOCK ASSY AND STRAIGHT TUBE LUBRICATED ASSY AND 1 GROUP FRAME REPLACING METHOD Removal 1 Remove four screws, and remove the Rear Mirror Plate. Removal 2 Remove the Naruto Gear Lubricated Assy and Warm B Lubricated Assy.
  • Page 12 – ENGLISH – 6 Rotate the Naruto Gear and the lens is drawn out. qs Remove the 1 Group Assy. 7 Pass the Flexible Board through the hole of the Fixed Stationaly Tube. qd Rotate (about 120 degree) Straight Tube Lubricated Assy and align the two points of ditchies of the Straight Tube Lubricated Assy Note: Fold the Flexible Board so that the pattern side is come to inside.
  • Page 13 – ENGLISH – 8 Install the Straight Tube Lubricated Assy to the Cam Tube Block Assy. Installation 9 Rotate (about 120 degree) Straight Tube Lubcated Assy and align two points of ditches of the Straight Tube Lubricated Assy with 1 Install the 1 Group Lens Assy to the 1 Group Frame. ditches of the Cam Tube Block Assy.
  • Page 14 – ENGLISH – qs Match three ditches of the Fixed Stationaly Tube Block to three convex parts of the Straight Tube Lubcated Assy and install it. qj Install the Warm B Lubricated Assy. qk Connect the Iris Flexible Board from connector of 2 Frame Assy. Eyepiece Side View Warm B Lubricated Assy...
  • Page 15: Final Inspection

    1-10-2. Inspection When Tube (A) Assy Or Cam Tube Is Replaced 1-10. FINAL INSPECTION Focus check 1-10-1. Confirm There Is No Fault In Actual Motion/Actual Screen 1 Preparation • Camera installed re-assemble lens. Inspect it as follows when you exchange parts in the lens block. •...
  • Page 16: Repair Parts List

    2. REPAIR PARTS LIST IDENTIFYING PARTS (ENGLISH) NOTE: Follow the disassembly in the numerical order given. The components identified by mark 0 • -XX, -X mean standardized parts, so they may have some differences from the original or dotted line with mark 0 are critical for one.
  • Page 17: Note For Repair

    – ENGLISH – – JAPANESE – NOTE FOR REPAIR 修理時の注意 • Make sure that the flat cable and flexible board are not cracked Cut and remove the part of gilt • フラットケーブルおよびフレキシブル基板の端子面に欠け, 先端の剥がれたメッキ部はカットして of bent at the terminal. which comes off at the point. 除去してください。...
  • Page 18 2-1. EXPLODED VIEWS DISASSEMBLY 2-1-1. REAR SECTION 1. Remove to numerical order ( ) in the left figure. #156 / #159 X 6 #156 #156 #159 #159 #156 #159 (Note 3) Screw #156: M1.4 X 4.0 #159: M1.4 X 4.0 (Silver) (Black) 2-635-591-61...
  • Page 19 2-1-2. FRONT/TOP SECTION DISASSEMBLY 1. Remove to numerical order to 0) in the left figure. #156 / #159 X 1 DISCHARGING OF THE CHARGING CAPACITOR ストロボ用充電コンデンサの放電 Tape (N5) (9) Screw #156: M1.4 X 4.0 #159: M1.4 X 4.0 (Silver) (Black) 2-635-591-61 2-662-396-51 Main Section...
  • Page 20: Main Section

    2-1-3. MAIN SECTION DISASSEMBLY 1. Remove to numerical order to qg) in the left figure. 2. The meaning of the sign in left figure is as follows. Be careful when it removes. ◇-X: Solder #173 X 1 → LCD REINFORCEMENT SHEET (qd) Back View #173 #173...
  • Page 21: Lens Block Section

    2-1-4. LENS BLOCK SECTION DISASSEMBLY ns: not supplied 1. The meaning of the sign in left figure is as follows. Be careful when it removes. (including IC001 ◇: Solder (CCD imager)) (Note 3) Screw #30: M1.2 X 3.5 (Tapping) #1: M1.2 X 2.0 (Note 1, 2) (White)
  • Page 22 Checking supplied accessories. Note: This item is supplied with the unit as an accessory, but is not prepared as a service part. Battery charger Rechargeable battery pack (NP-BN1) (BC-CSN/BC-CSNB) (Note) 0 1-487-523-21 (US, CND) 0 1-487-523-31 (CH) 0 1-487-523-51 (J) 0 1-487-523-61 (EXCEPT US, CND, J, CH) Instruction Manual...
  • Page 23: Electrical Parts List

    AF-125 FPC-016 FPC-019 SP-052 ST-225 SW-562 2-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description Ref. No. Part No. Description A-1731-548-A AF-125 FLEXIBLE BOARD, COMPLETE 0* D004 6-503-001-01 DIODE RR255M-400FJTR ********************** Caution (D202 is not supplied, but this is included in AF-125 flexible complete board.) <...
  • Page 24 3. ASSEMBLY Assembly-1: Installation Method of Battery Assembly-2: Insulating Sheet (670 ) Putting Position Assembly-4: Precaution During Main Frame Assembly-6: Attaching Method of LCD Cushion (670), Terminal Board Installation. LCD Window (670) Insulating Sheet (670) Apply LCD cushion (670). Remove the battery terminal board by bending Main Frame And hav e the Tab of the Release Paper and peel it off.
  • Page 25: Overall Block Diagram

    4. BLOCK DIAGRAMS 4-1. OVERALL BLOCK DIAGRAM ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. SY-242 BOARD CD-774 FLEXIBLE LENS BLOCK LCD901 (LCD MODULE) BOARD CCD_OUT LENS IRIS IC302 CA_AD00 - CA_AD13 CN705...
  • Page 26: Power Block Diagram

    4-2. POWER BLOCK DIAGRAM ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. ST-225 BOARD SY-242 BOARD FPC-016 (FLASH UNIT) AF-125 FLEXIBLE FLEXIBLE T001 BOARD CN701 CN001 D002 BOARD L001 D003 F002...
  • Page 27: Frame Schematic Diagrams

    5. FRAME SCHEMATIC DIAGRAMS ST-225 BOARD (SIDE A) ST-225 BOARD (SIDE B) S002 S003 AF-125 FLEXIBLE BOARD BT900 S010 LITHIUM (MODE) MIC001 RECHARGEABLE MICROPHONE BATTERY BLOCK CN002 S001 SP901 (SHUTTER) S009 (LOUDSPEAKER) (PLAYBACK) S004 S007 DISP S005 (UP) S002 (SET) SP-052 BOARD (SIDE A) SP-052 BOARD (SIDE B) ON/OFF...
  • Page 28: Schematic Diagrams And Printed Wiring Boards

    6. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS – ENGLISH – – JAPANESE – THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS. 回路図,プリント図共通ノート (In addition to this, the necessary note is printed in each block.) (他に必要なノートは各セクションに記載しています) For Schematic Diagrams For Printed Wiring Boards 回路図ノート...
  • Page 29: Schematic Diagrams

    6-1. SCHEMATIC DIAGRAMS Note:FLASH UNIT is not included in ST-225 complete board. ST_UNREG ST_UNREG T001 ST_UNREG D003 L001 LND030 CRF02 (TE85R) 2.2uH XE_A(H) REG_GND R003 REG_GND C004 REG_GND R002 LND028 REG_GND C003 TRIGGER MIC_BIAS (FLASH UNIT) MIC_BIAS TRIG_GND XAF_LED XAF_LED LND029 D002 C005...
  • Page 30 D001 CL-196SYG-CD-T R007 (POWER) D_3.2V LND011 LND031 XPWR_LED LND012 LND032 SP-052 LND013 MC_GND MC_GND LND033 CN002 LND014 MC_SIG MC_SIG LND034 P a g e 6 - 3 o f LND015 LND035 L E V E L 2 MIC_BIAS MIC_BIAS LND016 LND036 VL_3V REG_GND...
  • Page 31: Key Switch

    LND001 REG_GND REG_GND LND007 LND002 KEY_AD0 LND008 KEY_AD0 SW-562 SY-242 (9/10) LND003 KEY_AD1 KEY_AD1 LND009 CN001 P a g e 6 - 4 o f CN702 LND004 MODE_DIAL1 MODE_DIAL1 LND010 S003 S002 P a g e 6 - 1 1 o f L E V E L 2 RB001 2200...
  • Page 32 Caution : 注意 : Danger of explosion if battery is incorrectly replaced. 電池の交換は,正しく行わないと破裂する恐れがあります。 Replace only with the same or equivalent type. 電池を交換する場合には必ず同じ型名の電池又は同等品と交換 してください。 Dispose of used batteries according to the instructions. 使用済み電池は,取扱指示に従って処分してください。 AF-125 FLEXIBLE BOARD SP-052 BOARD SP-052 BOARD (SIDE A) (SIDE B) BT900 LITHIUM...
  • Page 33: Printed Wiring Boards

    6-2. PRINTED WIRING BOARDS ST-225 BOARD (SIDE A) ST-225 BOARD (SIDE B) SW-562 BOARD (SIDE A) SW-562 BOARD (SIDE B) R006 S003 S002 LND004 LND003 D004 Q002 R004 R005 S010 (MODE) C007 R002 S001 RB001 IC001 (SHUTTER) VDR002 VDR001 S009 (PLAY BACK) D002 RB002...
