Summary of Contents for XTZ Master M2

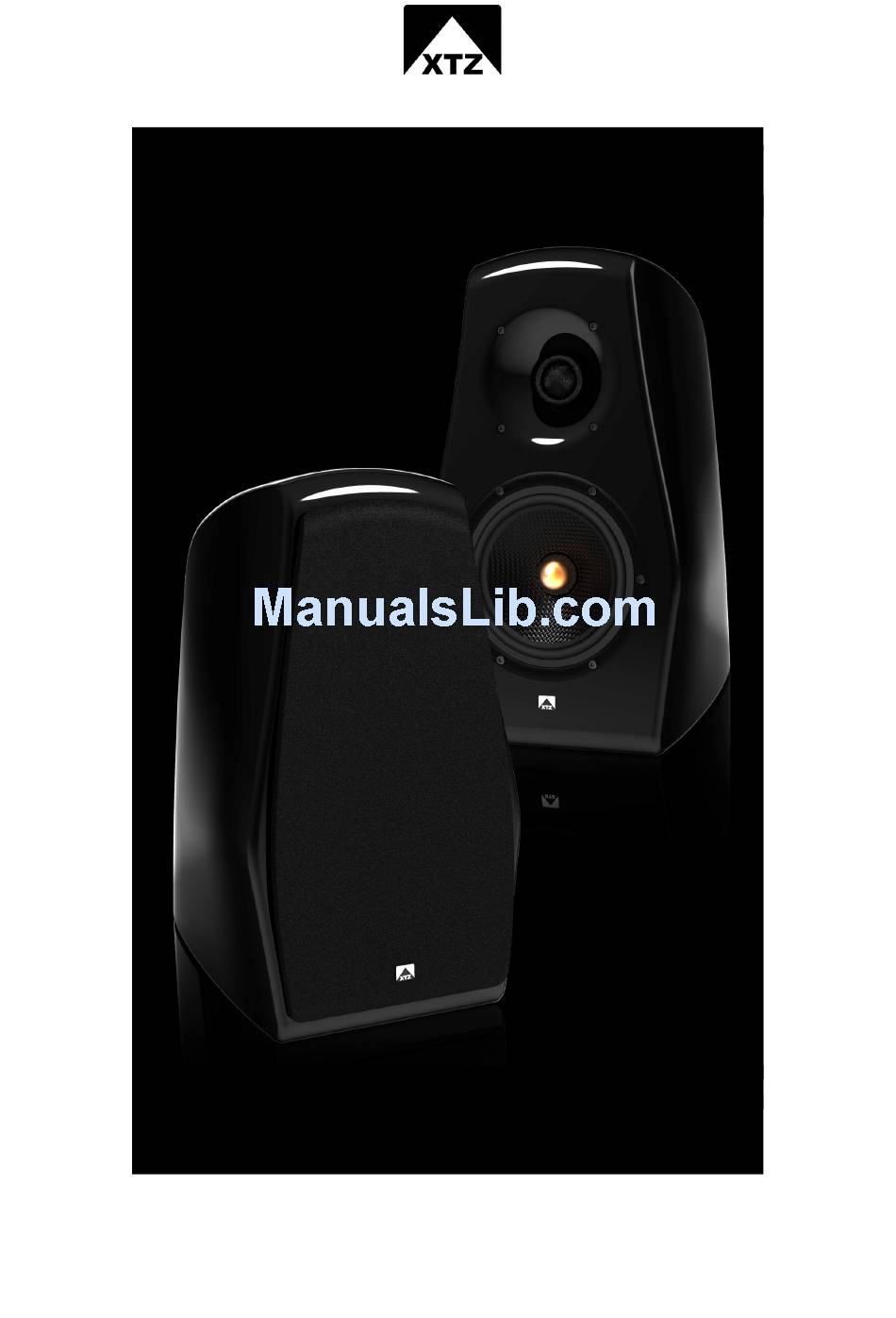

- Page 1 Master M2 Owners Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. READ INSTRUCTIONS - All safety and operating instructions should be read before this product is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS - All warnings on this product and in the operating instructions should be adhered to. -
Page 3: Table Of Contents
CONTENTS Introduction............4 About Master M2..........4 About XTZ............4 Technical presentation..........5 Preparations............7 Practice of sound / Installing and placing tips..8 Mounting and connecting tips........9 Sound settings............10 Technical specifications........11 Service & support..........12... -
Page 4: Introduction
(See further under the heading of Support on the last page of this manual). ABOUT MASTER M2 Master M2 is a truly unique product in the audio world: a compact loudspeaker designed under all aspects as a real high end speaker, but at a price point that is rare in this industry. -
Page 5: Technical Presentation
TECHNICAL PRESENTATION CABINET DESIGN Master M2 is constructed using a non-resonant, high-density and unique new material, with 40% higher density compared to MDF. Cross bracing is added to further reduce cabinet resonance. Main ingredients of this unique material are Epoxy, Polyurethane, Potassium carbonate and organic bubble. - Page 6 The magnet system is equipped with heavy copper rings and a solid copper phase plug, which reduce flux modulation and eddy current distortion. The phase plug also guides the sound waves from the driver to the listener and reduces cancellations which creates a smoother frequency response. The solid copper phase plug offers enhanced cooling and improves the air circulation around the coil windings, the coil temperature variation as well as the consequent sensitivity modulation are lowered.
-
Page 7: Preparations
PREPARATIONS UNPACKING Carefully unpack the speaker, and pay attention so you don’t accidentally break anything. If possible, save the carton box for future transportations. If there should be damage on the loudspeaker, please contact your retailer. ACCESSORIES - 1 pc bass reflex plug - 1 pc low res. -
Page 8: Practice Of Sound / Installing And Placing Tips
PRACTICE OF SOUND / INSTALLING AND PLACING TIPS This chapter contains common information on loudspeaker placement and installation. IN WHICH ROOM DO YOU No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad. There are some basic rules concerning a proper ACHIEVE THE BEST SOUND? loudspeaker installation. -
Page 9: Mounting And Connecting Tips
MOUNTING AND CONNECTING TIPS MOUNTING ALTERNATIVES Normally the Master M2 is placed standing by a wall. The wall behind and the wall beside the loudspeaker have influence on both the bass level and the bass characteristics, so please be patient and try different distances to the rear and side walls. -
Page 10: Sound Settings
By using the supplied bass plug in the bass reflex port, you can alter the lower These settings also depend on the size and shape of boundary frequency on the Master M2 ADJUSTMENT OF THE the room, and also on your... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS CONSTRUCTION TYPE 2-way, Bass reflex cabinet that may be set as a closed box. DIMENSIONS 231 x 424 x 374 mm, 9.1 x 16.7 x 14.7”(W x H x D) WEIGHT 18.6 kg, 41 lbs /pc MAGNETICALLY SHIELDED NOMINAL IMPEDANCE 8 ohm MINIMAL IMPEDANCE... -
Page 12: Service & Support
SERVICE & SUPPORT ”DO IT YOURSELF” - SERVICE We apply “do-it-yourself” service on all XTZ products. If you by yourself are able To aid service, XTZ products are constructed and produced to find out what part of the loudspeaker is defective, you are fully allowed to...
