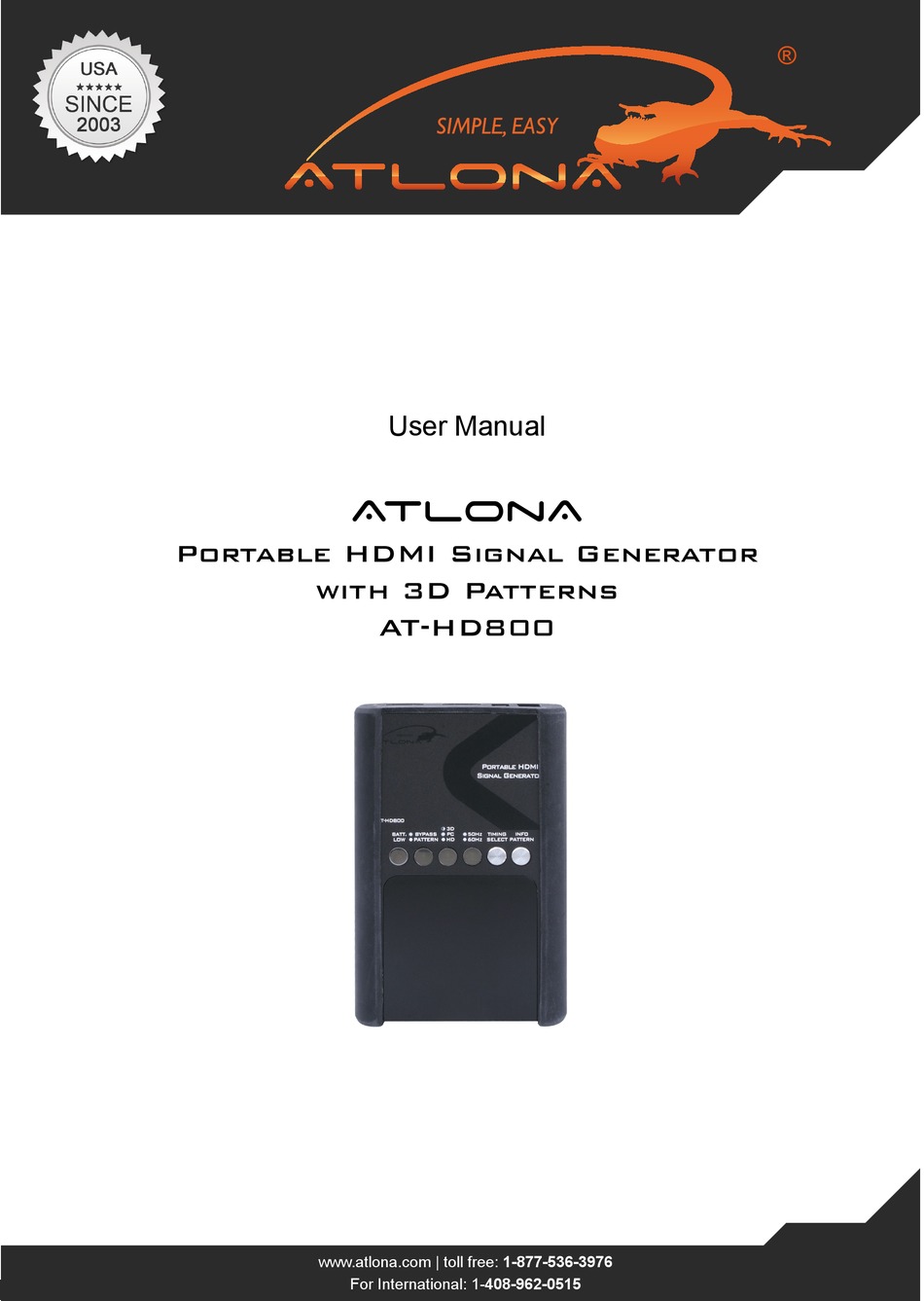

- Page 1 User Manual AtlonA Portable HDMI Signal Generator with 3D Patterns AT-HD800 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
..........7.2. Front Panel ..........8. Support Timing Table ..........9. Support Pattern Table ..........10. Connection and Installation ..........11. Safety Information ..........12. Warranty ..........13. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The Atlona HD800 is a Portable HDMI signal generator capable of testing any video resolution or timing in any digital format. The HD800 allows users to diagnose specific resolution, video timing, EDID, and color space issues in any DVI or HDMI video system. The HD800 features 19 test patterns including 3D tests Side by side, Top and Bottom, and Frame packing, a format that is mandatory for all HDMI 1.4... -
Page 4: Specification
Disclaimer: The above figures are tested base on Sony’s 2000mA AA batteries are for referencing only. Different mode/resolution and batteries used may have different results. OPERATION CONTROLS AND FUNCTIONS 7.1. Bottom Panel DC 5V HDMI IN HDMI OUT POWER ① ② ③ ④ www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Front Panel
4. HDMI OUT: This connection is for connecting the generator to a display or devices before the display when testing the full system capabilities. 5. For HDMI cable integrity test, insert both ends of the cable into the AT-HD800 Unit. See “Timing Select” button for more information. - Page 6 7. Battery Container: This container is for 4 x AA batteries. 8. If Timing Select and Info Pattern pressed at the same time, user can fast switch between 60Hz and 50Hz. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 7: Support Timing Table
Purity Pattern Full Screen Purity Purity offers five different full field pat- terns: Black, White (100% Y) Primary colors: Red, Green, Blue P01: Red P02: Green P03: Blue P04: Black P05: White www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 8 P13 6 Color Bar Gray Scale 720p 50/60 only P12 6 steps TV Timing Info 720p 50/60 only P14 VESA Timings 720p 50/60 only P15 Video Timings Battery Info 720p 50/60 only P16 Battery level www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 9: Connection And Installation
Group Pattern Description 3D Type P17 Frame Packing P18 Side-by-Side (Half) P19 Top-and- Bottom CONNECTION AND INSTALLATION LCD Monitor AT-HD800 HDTV Blu-ray www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 10: Safety Information
It may also cause damage to your the manufacturer could void the AT-HD800. Opening the product will void the user’s authority to operate this warranty. equipment. - Page 11 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
-
Page 12: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
