Page 1: User Manual

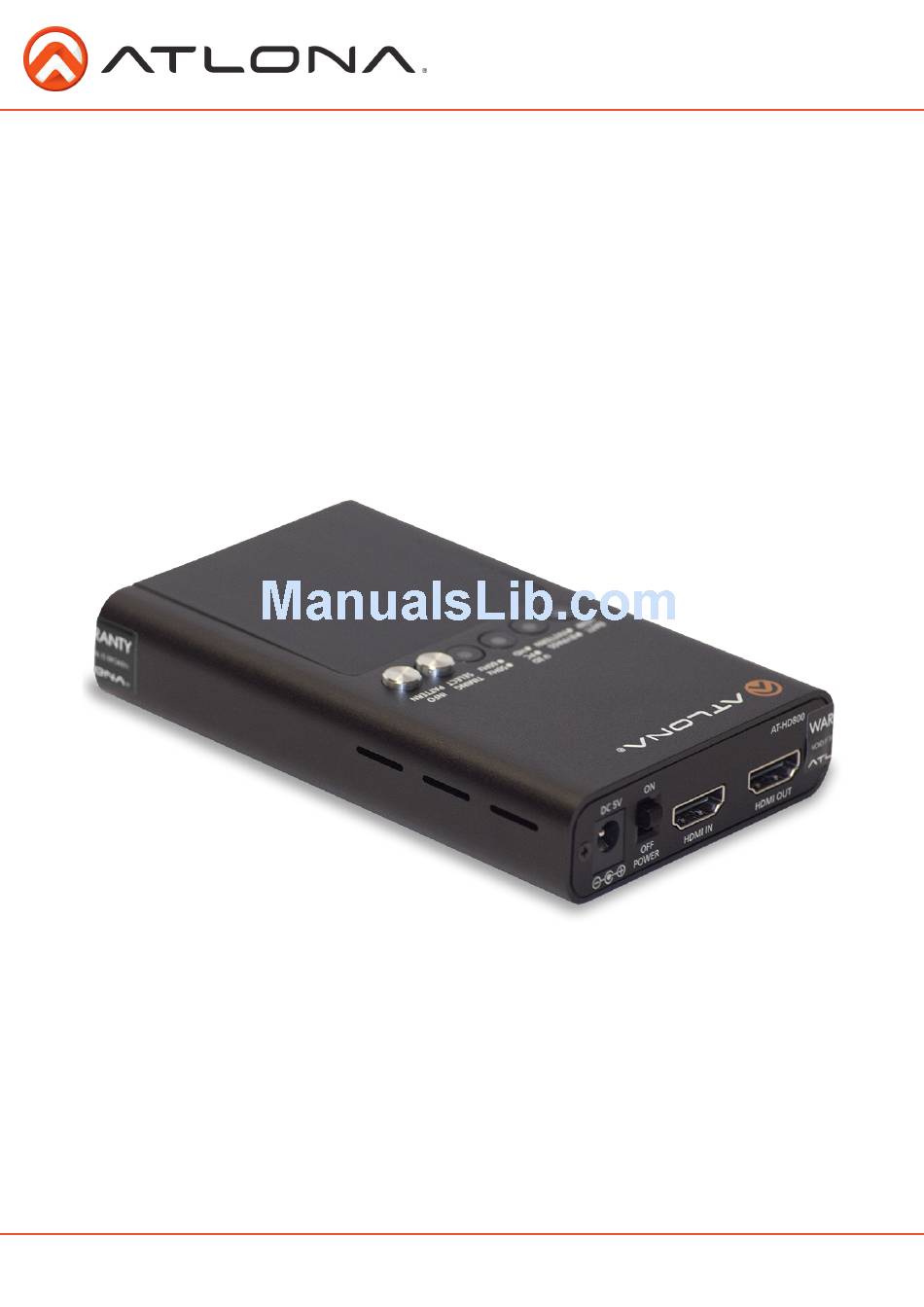

Atlona Portable HDMI Signal Generator with 3D Patterns AT-HD800 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
9. Connection and Installation ..................9 10. Specifications ..................9 11. Safety Information ..................10 12. Warranty ..................11-12 13. Atlona Product Registration ..................12 Revision C (12/14/12): Firmware Version 2.1S New timing order Page 5 Patterns 8-17 added to 1080i and 1080p... -
Page 3: Introduction
With so many potential problems in any installation it’s always better to be ready before the problem starts. With the Atlona Portable HDMI Signal Generator, test HDMI cables, determine compatible resolutions, and read EDIDs before installation to avoid problems or after to troubleshoot compatibility issues. -
Page 4: Panel Description
1. DC 5V: Input port for the included 5V DC adapter. 2. Power Switch: Turns the AT-HD800 on (switch up) and off (switch down) Note: To switch to power over 5V DC adapter, when the batteries are low, power cycle the AT-HD800 with the power switch. -
Page 5: Battery Door
3 seconds to reset to the display’s resolution (the AT-DIS7-PROHD can be used for this step). Once out of 3D mode the AT-HD800 is ready to test the HDMI cables. -
Page 6: Pattern Chart
Pattern 01 - Red Purity Pattern 02 - Green Pattern 03 - Blue Pattern 04 - Black Pattern 05 - White Color Bar Pattern 06 - Horizontal Bars Black & White HDCP testing pattern for all resolutions Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 7 Available on: 720p, 1080i and 1080p. Color Bar Pattern 11 - Color Bar Vertical and horizontal Available on: 720p, 1080i and 1080p. Pattern 12 - 6 level Grey Scale Available on: 720p, 1080i and 1080p. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 8 720p, 1080i and 1080p. Battery Info Battery level Screen Available on: 720p, 1080i and 1080p. 3D Type Pattern 17 - 3D Frame Packing Pattern 18 - 3D Side-by-Side (Half) Pattern 19 -3D Top and Bottom Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 9: Connection And Installation
Connection and Installation Game Console DC 5V AT-HD800 POWER HDMI IN HDMI OUT BATT BYPASS 50Hz TIMING INFO PATTERN 60Hz SELECT PATTERN Specifications LIFT UP Video Resolutions PUSH IN 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/50/60Hz 640x480, 800x600, 1024x768, 1280x800, 1280x1024, 1920x1200... -
Page 10: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 11: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 12: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
