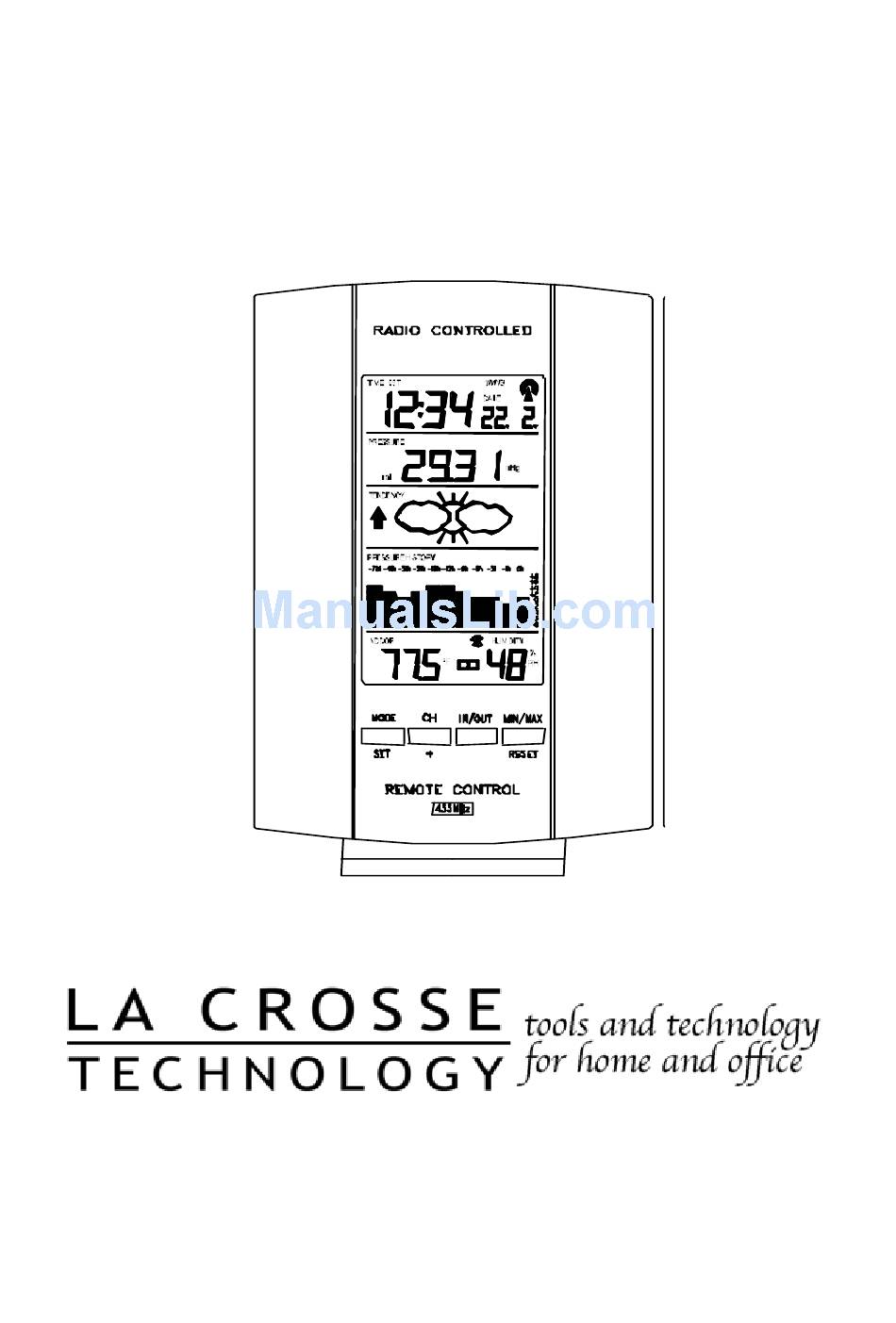

  • Page 1 WS-7059-SU Wireless 433 MHz Temperature Station Instruction Manual...

  • Page 2: Table Of Contents

    Topic Inventory of Contents/Additional Equipment About WWVB Start Up Program Mode Time Setting Options Programming Sequence LCD Contrast 12 / 24 Hour Mode Hour / Minute Setting Time Zone Setting Daylight Savings Time (DST) Year Setting Month / Date Setting Degree Setting °F or °C Setting the Forecast Sensitivity Displaying Relative/Absolute inHg/hPa...

  • Page 3: Inventory Of Contents/Additional Equipment

    INVENTORY OF CONTENTS 1. Weather display unit 2. The outdoor temperature/humidity sensor (TX4U) 3. Instruction manual and warranty card Figure 1: Weather station display unit Time Pressure Tendency Pressure History Indoor Temp/Hum ADDITIONAL EQUIPMENT (not included) 1. Five AA 1.5V batteries. Hint: USE a Good Quality Alkaline Batteries and avoid Rechargeable batteries Figure 2: Remote temp/hum sensor (TX4U)

  • Page 4: About Wwvb

    ABOUT WWVB NIST (National Institute Standards Technology—Time and Frequency Division) radio station, WWVB, is located in Ft. Collins, Colorado and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2 000 miles away through the internal antenna in the weather station.

  • Page 5: Start Up

    SET-UP GUIDE 1. Have the weather station and remote sensor 3 to 5 feet apart. 2. Batteries out of both units for at least 10 minutes. Place the batteries into the remote sensor FIRST then place batteries into the weather station NEXT. (All remote sensors must be started before the weather station) 4.

  • Page 6: Program Mode

    PROGRAM MODE Programming Note: If 20 seconds is allowed to pass during programming modes the unit will confirm/set the last information entered, the display will stop flashing and return to normal time- date readings. NOTE: There are two methods by which the time can be set: •...

  • Page 7: Programming Sequence

    Manually This is only necessary if you do not wish to wait for the WWVB reception. All manual set time and date settings will be over-ridden by the reception of the WWVB signal. In most cases all that needs to be set different from the default (factory) settings is the time zone (section “D”...

  • Page 8: 24 Hour Mode

    B. 12 OR 24 HOUR TIME SETTING 1. “12h” will be flashing in the time LCD. 2. Press and release the “CH/+” button to toggle between 12h (AM/PM) and 24h (military time). Note: in 12h mode “PM” will appear to the left of the time during the PM hours.

  • Page 9: Time Zone Setting

    D. TIME ZONE SETTING 1. –5 should be flashing in the time LCD 2. Select your appropriate time zone by pressing and releasing the “CH/+” button. The time LCD displays the 3 letter abbreviations for the time zones found in North America along the very top of the display.

  • Page 10: Year Setting

    2. Press and release the “CH/+” button to select the appropriate setting. 3. Press the “MODE/SET” button to confirm and advance to the year setting. F. SETTING THE YEAR 1. “2000” should be flashing in the time LCD. 2. Press and release the “CH/+” button to advance to the desired year.

  • Page 11: Degree Setting °F Or °C

    H. SELECTING °F OR °C 1. °F should be flashing in the time LCD. 2. Press and release the “CH/+” button to select between °F and °C. 3. Press and release the “MODE/SET” button to confirm and advance to the weather forecast sensitivity setting.

  • Page 12: Displaying Relative/Absolute Inhg/Hpa

    J. DISPLAYING RELATIVE hPa/inHg OR ABSOLUTE hPa/inHg Note: Air pressure on this unit can be displayed in four different measures: Relative hPa, Absolute hPa, Relative inHg, and Absolute inHg. The Absolute setting gives a true and real-time air pressure reading (at the users location) that cannot be manually calibrated.

  • Page 13: Manually Setting Relative Air Pressure

    K. MANUALLY SETTING THE RELATIVE AIR PRESSURE 1. The numerals in the pressure LCD will now be flashing (only for relative air pressure) 2. Press and release the “CH/+” to increase the relative air pressure. Refer to your local weather service for an appropriate setting.

  • Page 14: Weather Forecast

    FEATURES OF THE WS-7059SU A. WEATHER FORECAST The weather forecast feature is estimated to be 75% accurate. By adjusting the sensitivity setting you can achieve a better accuracy of forecast. The weather forecast is based solely upon the change of air pressure over time.

  • Page 15: Weather Tendency

    change from “sunny” directly to “clouds with rain” although it is possible for the change to occur quickly. If the symbols do not change then the weather has not changed or the change has been slow and gradual. If this happens on a regular basis, it may be necessary to adjust the weather forecast sensitivity.

  • Page 16: Indoor /Outdoor Temperature/Humidity

    the graph than the left) then the air pressure has a falling trend, and the weather should worsen. Note: The air pressure history is taken every hour by averaging the last 11 readings (taken every minute). E. INDOOR TEMPERATURE AND HUMIDITY The current indoor temperature and humidity is displayed in the indoor LCD.
  • Page 17 1. Viewing the Minimum Indoor Temperature and Humidity Press and release the “MIN/MAX/RESET” button. b. The minimum temperature and humidity is now displayed in the indoor LCD and the time and date of those values is displayed in the time LCD.

  • Page 18: Viewing Multiple Remote Sensors

    III. OUTDOOR REMOTE CONTROL SENSORS TX4U included (others are optional) The WS-7059SU is able to receive signals from 3 different remote sensors. When the TX4U and/or other units are set up the indoor LCD will display the remote sensors when the “IN/OUT” button is pressed.

  • Page 19: Mounting

    3. To view the minimum and maximum temperature select which remote sensor to read data from and then press and release the “MIN/MAX/RESET” button. 4. Pressing this button once will display the minimum temperature, minimum humidity and the date and time the data was recorded.
  • Page 20 B. The TX4U Remote Sensor 1. Mounting with screws Remove the mounting bracket/ receptor from the packaging. b. Place the mounting bracket over the desired mounting surface. Through the 2 screw holes of the bracket, mark the mounting surface with a pencil.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Problem: No reception of WWVB time signal Solution: Wait overnight for signal. Be sure Weather Station is at least 6 feet from any electrical devices, such as televisions, computers, or other radio-controlled clocks. Remove batteries for five minutes, reinsert and leave alone without pressing buttons overnight.

  • Page 22: Maintenance And Care

    • Do not submerge in water. • Immediately remove all low powered batteries to avoid leakage and damage. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs.
  • Page 23 SPECIFICATIONS Radio controlled time signal: Recommended operating temperature: Weather Station: Remote Sensor: LCD contrast: Temperature measuring range: Indoor: Outdoor: Relative indoor humidity range: If the indoor temperature is outside the range “OFL”: If the indoor relative humidity is less than 20% or greater than 95%: WWVB 32°F to 122°F (0°C to 50°C)
  • Page 24 Air pressure: Absolute inHg: Relative hPa (optional): Relative inHg (optional): Sensitivity setting hPa: Air pressure history: Data checking intervals: Indoor temperature: Indoor relative humidity: Power supply (alkaline batteries recommended): Power Supply (Remote) Dimensions (L x W x H): 20.67 inHg to 32.45 inHg 970 hPa to 1030 hPa 28.60 inHg to 30.45 inHg 2,3, and 4 hPa...

  • Page 25: Specifications / Warranty Information

    La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.
  • Page 26 (5) damage resulting from the performance of repairs or alterations by someone other than an authorized La Crosse Technology, Ltd authorized service center; (6) units used for other than home use (7) applications and uses that this product was not intended or (8) the products inability to receive a signal due to any source of interference..
  • Page 27 sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com FCC ID: OMO-01RX THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
