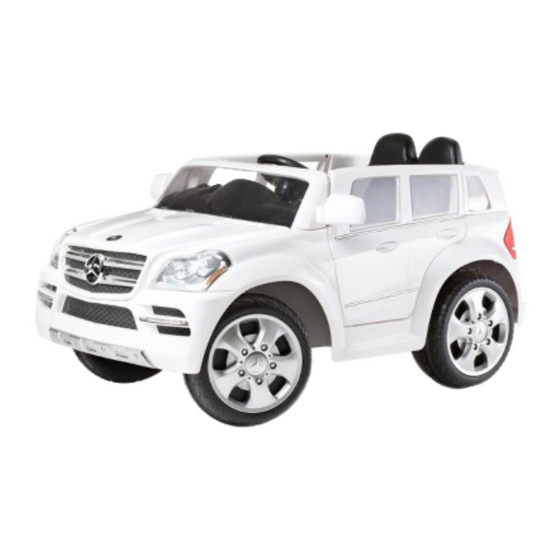

6V Mercedes-Benz
Owner's Manual and Assembly Instructions
Model W488AC
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W488AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aria Child W488AC

Summary of Contents for Aria Child W488AC

  • Page 1 6V Mercedes-Benz Owner’s Manual and Assembly Instructions Model W488AC Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and replacement parts.

  • Page 2: Specifications

    Introduction Thank you for purchasing this vehicle from Aria Child. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Call Customer Service if you need assistance or replacement parts.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Steering Wheel ......13 Attach the Mirrors ........14 Attach the Seat ........15 Battery Removal ........16 Operating Instructions ......17 Maintenance ..........18...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 77 lbs. • This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury.

  • Page 8: Parts

    Parts 1. Manual 11. Door 2. Battery 12. Seat Not Included: 3. Battery Charger 13. Back Empennage* 4. Car Body 14. Rear Decoration* 5. Windshield* 15. Tail Light* 6. Mirrors (2) 16. Front Wheel 7. Front Light* 17. Rear Wheel 8.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. Bracket 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels Helpful Tip: Using pliers will make it easier to remove the snap pin from the wheel axle 1. Slide the front thick washer (18) onto the front axle. 2. Slide the front wheel (16) onto the front axle. 3.

  • Page 11: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel Left Rear Wheel: 1. Slide the rear thick washer (18) onto the left rear axle. 2. Slide the orientation sleeve onto the left rear wheel axle. 3. Slide the left rear wheel (17) onto the left rear axle. The side with the gear teeth faces inward.

  • Page 12: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Right Rear Wheel: 1. Slide the right rear wheel (17) onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. Slide the rear flat washer (19) onto the right rear axle. 3.

  • Page 13: Attach The Steering Wheel

    Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly before attaching 2. Insert the steering wheel (10) into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod 3.

  • Page 14: Attach The Mirrors

    Attach the Mirrors 1. Align the holes of the left side mirror (6) with the hole on the mirror hinge. 2. Insert the screw through the mirror and mirror hinge holes. Screws come installed on the mirrors. 3. Screw a small nut to the bottom of the screw, don’t over tighten. 4.

  • Page 15: Attach The Seat

    Attach the Seat Bracket Car Seat Slot 1. Locate the bracket behind the back of the car seat (12) 2. Align the car seat bracket with the car seat slot and the T-Lock with the car seat lock hole. Lower the seat into place. 3.

  • Page 16: Battery Removal

    Battery Removal Battery Strap Screw Battery 1. Disconnect the red battery connector (A) from the red engine connector (B) 2. Loosen and remove the screw 3. Unfasten the battery from the strap 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging.

  • Page 17: Operating Instructions

    Operating Instructions Shift Handle Power Switch Pedal • To turn on the vehicle, turn the power switch to “On” • Push the shifter upward to move forward. Pull the shifter downward to go in reverse • Press the foot pedal down to go. Release the foot pedal to stop Sounds Sounds • Press the left and right buttons on the steering wheel to make sounds.

  • Page 18: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 19: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.

  • Page 20: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 21 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
  • Page 22 This page is intentionally left blank.

  • Page 23: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please contact Aria Child Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com...

  • Page 25: Warranty

    Proof of purchase receipt from an Aria Child certified reseller is required. • Aria Child ensures the original 6-Volt battery is warranted for 6 months from initial purchase of the vehicle from a certified retailer. Proof of purchase receipt required.
  • Page 26 This page is intentionally left blank.

  • Page 27: Product Registration

    Product Registration Fill out the form below and mail it to: Aria Child, Inc. 680 N. Lake Shore Drive Suite 1214 Chicago, IL 60611 OR fill out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
