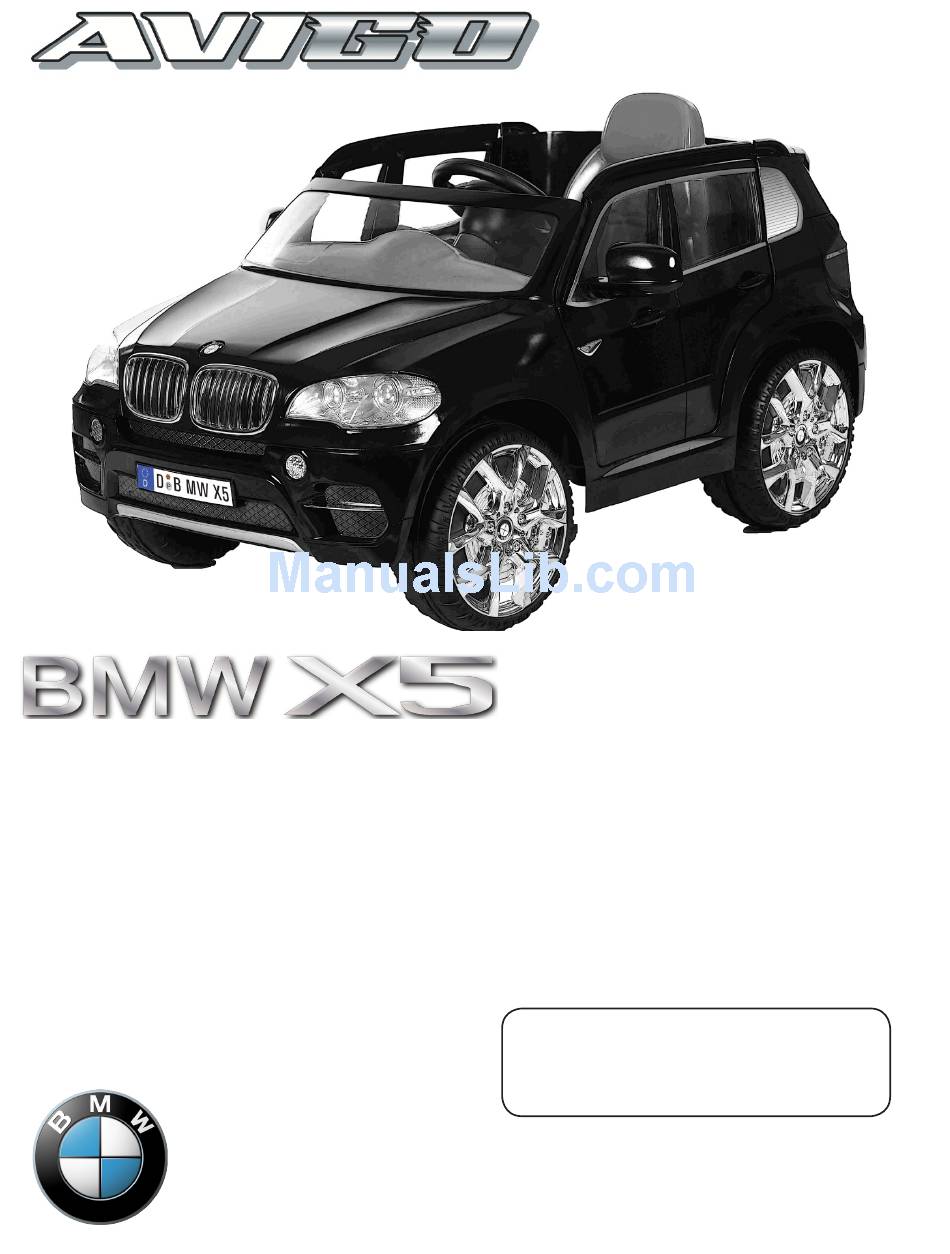

Owner's Manual and Assembly Instructions
Model 5F60E99
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for
assistance and replacement parts.
Save this manual with your sales receipt.

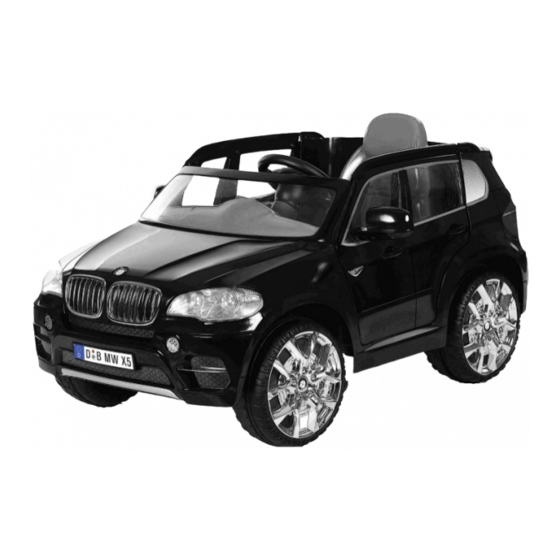

BMW X5 Children's Electronic Car manufactured by Paragon Child Products Co., Ltd. The
BMW trademarks are used under license from BMW AG. BMW X5 name and associated logos
are trademarks of BMW AG.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5F60E99 and is the answer not in the manual?

Questions and answers

Related Manuals for Aria Child 5F60E99

Summary of Contents for Aria Child 5F60E99

  • Page 1 Owner’s Manual and Assembly Instructions Model 5F60E99 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for assistance and replacement parts.
  • Page 2 Thank you for purchasing the BMW X5. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Aria Child Customer Service with any questions. Hours: 9 AM - 5 PM (CST), Monday - Friday Web: www.ariachild.com Email: customerservice@ariachild.com...
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Email or call Customer Service if you need assistance or replacement parts.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Steering Wheel ......13 Attach the Mirrors ........14 Attach the Seat ........15 Battery Removal ........16 Operating Instructions ......17 Maintenance ..........18...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 77 lbs. • This product contains small parts that are for adult assembly only.
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury.

  • Page 8: Parts

    Parts 1. Manual Not Included: 2. Seat 3. Mirrors (2) 4. Battery 5. Steering wheel assembly 6. Rear window caps (2) (pre-installed) 7. Car body 8. Gear box (pre-installed) • Phillips screwdriver 9. Washers (3) • Pliers 10. Front wheels (2) 11.

  • Page 9: To Charge Battery

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels 1. Slide the washer (9) onto the front axle (A). 2. Slide the front wheel (10) onto the front axle. 3. Push on the center of the wheel (B) and snap it into place. 4. Gently pull the wheel to ensure that it is secure. If wheel comes loose, then repeat the first three steps.

  • Page 11: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel 1. Slide the washer (9) onto the rear wheel axle (A). 2. Slide the left rear wheel (11) onto the left rear axle. The side with the gear teeth (B) faces inward. 3. Push on the center of the wheel and snap it into place. 4.

  • Page 12: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel 1. Slide the rear wheel (11) with the gear teeth facing inward onto the rear axle (A). 2. Line up the gear teeth on the wheel with the grooves on the gear box (8). 3. Push on the center of the wheel and snap it into place. 4.

  • Page 13: Attach The Steering Wheel

    Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly (5) before attaching. 2. Plug the steering wheel connector (A) into the dashboard connector (B). 3. Insert the steering wheel (5) into the steering rod, and match the screw holes of the steering wheel and the steering rod.

  • Page 14: Attach The Mirrors

    Attach the Mirrors 1. Remove the screw (A) and nut (B) from the mirror (3) before attaching 2. Insert the left side mirror (3) into the slot on the side of the body. Push it into the slot. 3. Insert the screw (A) and fasten the nut (B) to secure the mirror. 4.

  • Page 15: Attach The Seat

    Attach the Seat 1. Position the seat (2) over the battery compartment 2. Click in the hook on the back of the chair into the empty slot on the car body. 3. Turn the thumb screw clockwise on the seat to lock it properly into position.

  • Page 16: Battery Removal

    Battery Removal Screw Battery Strap Battery (4) 1. Disconnect the battery connector (A) from the engine connector (B) . 2. Loosen and remove the screw. 3. Unfasten the battery (4) from the strap. 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging.

  • Page 17: Operating Instructions

    Operating Instructions • To turn on the vehicle, turn the power switch (A) to “I.” To turn off the vehicle, turn the power switch to “O.” • Push the shifter (B) up to move forward. Push the shifter down to go in reverse.

  • Page 18: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 19: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.

  • Page 20: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 21 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 22: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 23: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please visit us online at www.ariachild.com Or contact us at: 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com Hours: 9 AM - 5 PM (CST), Monday - Friday For a list of available replacement parts, please visit www.ariachild.com.

  • Page 24: Warranty

    Proof of purchase receipt from an Aria Child certified reseller is required. • Aria Child ensures the original 6-Volt battery is warranted for 6 months from initial purchase of the vehicle from a certified retailer. Proof of purchase receipt required.
  • Page 25 This page is intentionally left blank.
  • Page 26 This page is intentionally left blank.

  • Page 27: Product Registration

    Product Registration Fill out the form below and mail it to: Aria Child, Inc. 680 N. Lakeshore Drive Suite 1214 Chicago, IL 60611 OR fill out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
