Summary of Contents for nubeca BA2318

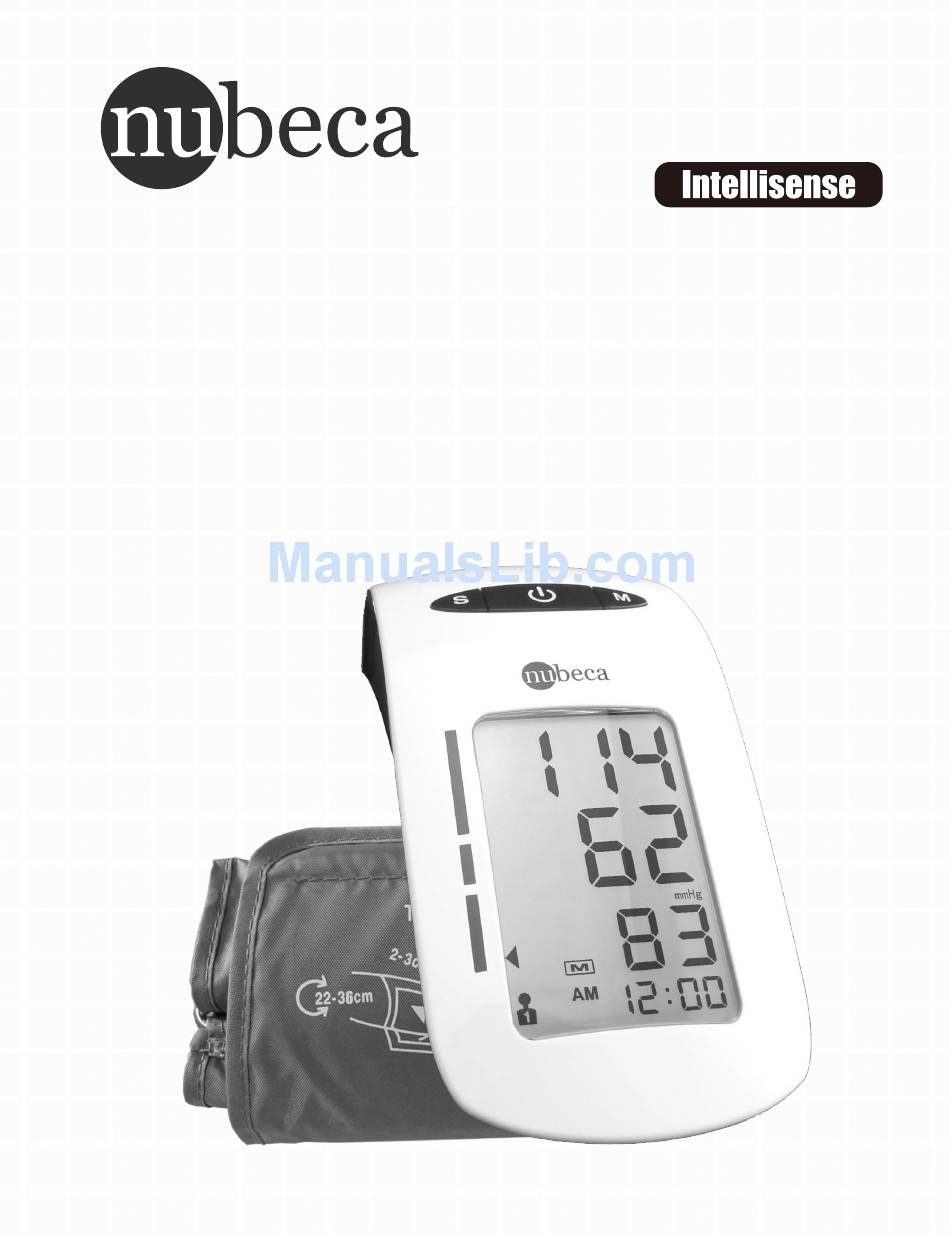

- Page 1 Arm Automatic Blood Pressure Monitor Instruction Manual Model: BA2318...
-
Page 2: Table Of Contents
Table of Contents 1. Safety Information..............1 1.1 Warning................1 1.2 Contraindications..............3 1.3 Care and maintenance............3 2. Product Feature..............4 3. Pre Measurement..............7 3.1 Battery ................7 3.2 Setting................8 4. Take a measurement............10 4.1 Important Noted...............10 t t i .. -
Page 3: Safety Information
Rev：A1 1. Safety Information 1.1 Warning Self diagnosis and treatment which use measured results may be dangerous. Follow the instructions of your physicia or licensed healthcare provider. If cuff inflation doesn’t stop, remove the cuff or power off the unit, otherwise, it may result in a hazard condition. Only take measurement with the manufacturer supplied cuff or else it will lead to inaccurate results. - Page 4 Rev：A1 The battery has positive/negative polarity. If the battery does not connect well to the unit, do not forcibly connect it. Do not use Luer lock. If Luer lock connectors are used in the construction of tubing, there is a possibility that they might be inadvertently connected to intravascular fluid systems, allowing air to be pumped into a blood vessel.
-
Page 5: Contraindications
Rev：A1 Do not measurement too frequent, or else it may result in bruising where the cuff is applied. • Do not apply the cuff over a wound or inflamed area. The application of the cuff and its pressurization on the arm can cause temporary interference to blood flow, but it would not result in injury to the patient. -
Page 6: Product Feature
Rev：A1 Avoid high temperature, moisture, dust and direct sunlight. Clean the body with soft dry cloth dipped in a concentration of 75% medical alcohol. Do not wet or cleaning the cuff with water. Clean the cuff with soft dry cloth after measurement. Do not use at extremely high temperature, high humidity, or high altitude. - Page 7 Rev：A1 Body ON/OFF Memory LCD Display Air socket Fig 1 Cuff (Type BF Applied Part) Model：BC1000 Applicable Arm Circumference: 220 mm to 360 mm Air Tube Connector Cuff Air Tube...
- Page 8 Rev：A1 2~3cm Model BC1000 Cuff label Fig 2 Symbol for TYPE BF APPLIED PART Note: Display Systolic Blood Pressure Level Indicator Diastolic Heart Mark Unit of Pressure Irregular Heat Rate Symbol Pulse Rate Battery Symbol Memory1 Memory2 Mean Symbol Date and Time Fig 3...
-
Page 9: Pre Measurement
Rev：A1 3. Pre Measurement 3.1 Battery 3.1.1 Installation and replacement 1）Remove battery cover Load 4 standard AAA alkaline battery as indicated in figure 2） below 4 x AAA Please use the same brand battery and aware of battery polarity during installation Fig 4 3）Install back the battery cover 4）Replace the battery if low battery icon is displayed... -
Page 10: Setting
Rev：A1 The batteries enclosed in the package are used for demonstration purpose. It is possible that these batteries will therefore not last for 200 measurements. The battery life can be confirmed in the bottom left of the display. If the low battery symbol is display, remaining power is low, replace with new batteries. - Page 11 Rev：A1 b) Complete setting, press ON/OFF button to exit. Fig 5 Fig 6 Fig 7 Fig 8 3.2.2 Memory Data Conversion The blood pressure monitor is capable to hold 2 sets of memory data. Prior using the blood pressure monitor, select the correct memory data.
-
Page 12: Take A Measurement
Rev：A1 4 Take a measurement 4.1 Important Noted Don't eat, drink alcohol, smoke, take a shower or exercise for at least 30 minutes before you take your blood pressure and don't use any medicines that can raise blood pressure. Try not to take your blood pressure if you are nervous or upset. -
Page 13: Body Posture During Measurement
Rev：A1 Air tube bladder locates 2 cm～3 cm in the center of the arm. 2 cm～3 cm Palm face up Fig 9 4 ) Make sure cuff air tube outlet is facing your finger. Do not over tighten. Approximate one finger should be able to fit underneath the cuff after tightening. -
Page 14: Take Measurement
Rev：A1 Arm should be at the same level of your heart. Fig 10 4.4 Take Measurement After installing the batteries and wearing the cuff, the unit is ready for measurement: 1 ) For the most accurate result please relax, do not smoke, take deep breath, speak loudly or move around during the measurement. - Page 15 Rev：A1 6) You may turn off the unit or compare with the previous results 7) Automatic shut off in 3 minutes. 8) If a problem occur during the test, “Err ” will display on the screen. 9) In the end of measurement, “ ”...
- Page 16 Rev：A1 The blood pressure level classification and definition (Fig 15) Fig 15 Notes: Do not self-diagnosis according to measurement results. Follow the instructions of your physician or licensed healthcare provider. The pillar in the left of the display and the segment color in the unit will indicate the level of the blood pressure, the blood pressure level classification and definition as show in Fig 15.
-
Page 17: Memory
Rev：A1 to 15mmHg (2kPa) does not exceed 10s. If cuff inflated up to 300 mmHg (40 kPa) doesn’t stop, please remove the cuff or power off the unit 4.5 Memory The Memory 1 and Memory 2 can hold up to 60 reading each. 1）Memory Review a）... -
Page 18: Trouble Shooting
Rev：A1 Error Cause How to correct （1） Reconnect the air tube connector Power on, cuff inflation rate is too low or main unit does not connect with the main unit （2） Cuff with the cuff. bladder leakage, necessary purchased a new one. （3）... -
Page 19: Specification
Rev：A1 *If the above suggestion doesn’t remediable, please dial Service Hotline 86-4006 755 009 for consultant. 7. Specification Arm automatic blood pressure Description Model BA2318 monitor Measuring Display LCD Digital Display Oscillometric Method principle Pressure: 0mmHg~280mmHg （±0.4kPa） Pressure : ±3mmHg （0kPa~37.3kPa）... - Page 20 Rev：A1 This unit is intended for home use and the specification may be changed without prior notice. Disposal This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally...
- Page 21 Rev：A1 Important information regarding Electro Magnetic Compatibility (EMC) With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation.
- Page 22 Rev：A1 Guidance and manufacturer’s declaration – electromagnetic immunity The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used in such an environment. Immunity IEC 60601 test Compliance...
- Page 23 Rev：A1 Guidance and manufacturer’s declaration – electromagnetic immunity – for EQUIPMENT and SYSTEMS that are not LIFE – SUPPORTING Guidance and manufacturer’s declaration – electromagnetic immunity The [EQUIPMENT or SYSTEM] is intended for use in the electromagnetic environment specified below. The customer or the user of the [EQUIPMENT or SYSTEM] should assure that it is used in such an environment.
-
Page 24: About Blood Pressure
Rev：A1 Recommended separation distances between portable and mobile RF communications equipment and the [EQUIPMENT or SYSTEM] The [EQUIPMENT or SYSTEM] is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the [EQUIPMENT or SYSTEM] can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the [EQUIPMENT or SYSTEM] as recommended below, according to the maximum output power of the... - Page 25 Rev：A1 that those with hypertension are tense, nervous or hyperactive, but hypertension has nothing to do with personality traits. The truth is, you can be a calm, relaxed person and still have HBP. Let's look at the facts about blood pressure so you can better understand how your body works and why it is smart to start protecting yourself now, no matter what your blood pressure numbers are.
-
Page 26: What Is Morning Hypertension (Morning Surge)
Rev：A1 These categories were defined by the American Heart Association. This chart applies to adults age 20 and older. 8.3 What is morning hypertension (morning surge)? Morning high blood pressure or morning surge is defined as the weekly average for morning blood pressure reading measured within 1 hour to 2 hours after awakening in the morning and exceeding 135/85mm Hg. -
Page 27: Reference Standard
Rev：A1 Reference Standard • IEC 60601-1 2005 Medical electrical equipment-Part1: General requirements for safety and essential performance. • IEC 60601-1-2:2007 Medical electrical equipment – Part 1-2: General requirements for basic safety and essential performance – Collateral standard: Electromagnetic compatibility – Requirements and tests •... -
Page 28: Guarantee Card
Rev：A1 Guarantee Card Product Model Product SN Date of Purchase Distributor Customer Name Address Details of the faults: Warranty Rule ·The unit of this product is guaranteed by nu-beca for a period of 1year after the date of purchase. ·The guarantee does not cover any of the following: -- Risks of transport. -
Page 29: After-Sale Service
Rev：A1 Symbol for "manufacturer" Symbol for "CE" Symbol for "Follow operating instructions" Symbol for " TYPE BF APPLIED PART" Symbol for "electrical and electronic equipment" IP21 Symbol for “Against ingress of solid foreign objects: ≥ 12.5mm diameter; Against ingress of water with harmful effects: vertical dripping”...
