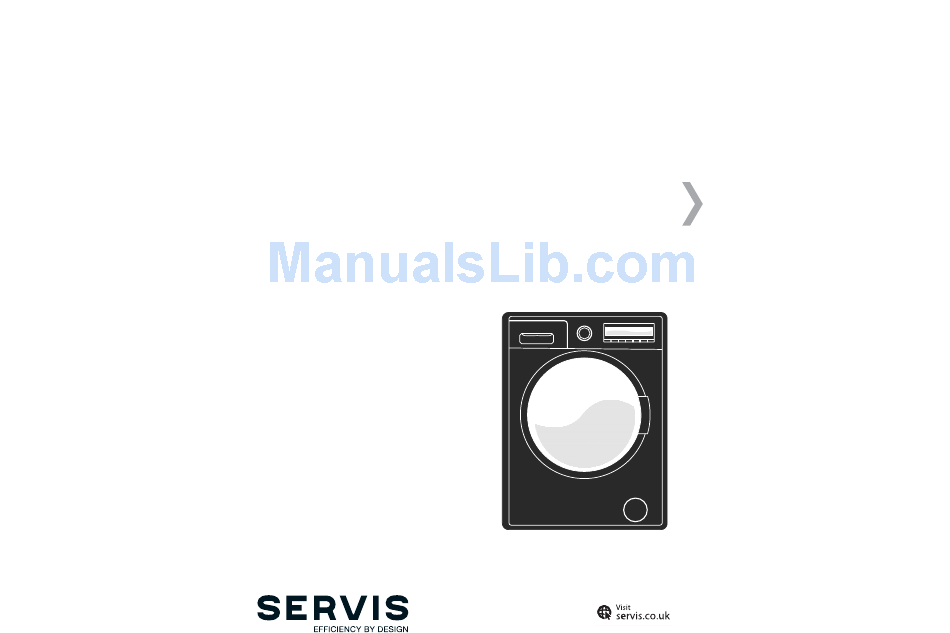

Page 1: Washing Machine
WASHING MACHINE User Manual Model Numbers: W814FLHDW W814FLHDS W814FLHDB... -
Page 2: Table Of Contents
Welcome 2 YEAR Safety Instructions Your Washing Machine GUARANTEE NOW Technical Specifi cation SERVIS.CO.UK 0800 0124382 Installation Parts & Labour for 2 years. Go to www.servis.co.uk Usage for more information Maintenance Clothing Care Troubleshooting Guarantee Index T: 0800 0124 382... -
Page 3: Safety Instructions
To ensure your safety and the safety of others, please read the following safety precautions before you operate your Washing Machine. Servis provides you with a guarantee which will protect you should your Washing Machine develop an electrical or mechanical fault during the guarantee period. To ensure that you get a Your Washing Machine conforms to current safety requirements. - Page 4 Before connecting your Washing Machine, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a Do not make any alterations to your Washing Machine, unless authorised to do so by Servis. qualified electrician.
-
Page 5: Your Washing Machine
YOUR WASHING MACHINE FRONT VIEW REAR VIEW Detergent drawer Programme dial Drain hose Control panel Cold water inlet Door handle Transit bolts Pump filter cover Detergent drawer; Allows you to insert detergent, fabric conditioner and starch. Programme dial; Allows you to select the programme for your wash. Drain hose;... -
Page 6: Detergent Drawer
YOUR WASHING MACHINE TECHNICAL SPECIFICATION DETERGENT DRAWER TECHNICAL SPECIFICATION Compartment Main Wash Voltage V/Frequency (Hz) 220-240V/50Hz Compartment Electrical Current (A) Power Rating (W) 2200 Water Consumption (Cotton 60 Full load) (L/Cycle) Energy Consumption (Cotton 60 Full load) 0.76 Pre-Wash (kWh/Cycle) Compartment Unpacked Dimensions (H x W x D) (cm) 84.5 x 59.7 x 58.2... -
Page 7: Installation Requirements
INSTALLATION Pull out the remaining plastic section of each transit bolt by hand. This will require a INSTALLATION REQUIREMENTS reasonable amount of force (fig 5c). Insert the blanking caps (4 off): Push the cap into the hole until the four connectors click into place. -
Page 8: Adjusting The Feet
INSTALLATION ADJUSTING THE FEET WATER SUPPLY CONNECTION For safe operation, it is important that your Washing Machine is level and securely positioned on Your Washing Machine uses an energy efficient cold fill system, which means that only the all four feet. Incorrect installation may cause the Washing Machine to vibrate and increase your water required to wash the laundry is heated. -
Page 9: Drain Hose Connection
INSTALLATION WATER SUPPLY CONNECTION Screw the straight end of the hose clockwise to a 19mm (3/4’’) cold water tap until hand tight (fig 8). Take care not to trap or kink the hose. a: The drain hose can be connected Max height 100cm to a standpipe, as shown. -
Page 10: Electrical Connection
INSTALLATION ELECTRICAL CONNECTION The cold water pressure for a normal household system ranges from between 0.1 to 1 Mpa. Your Washing Machine will run at optimum efficiency in this range. Your Washing Machine requires a 220-240V, 50Hz mains supply. Do not use any other supply. -
Page 11: Washing Sequence
USAGE CONTROL PANEL OVERVIEW RUNNING YOUR FIRST WASH Before using your Washing Machine for the first time; check that: The transit bolts have been removed. Your Washing Machine has been correctly connected to your water supply and your water drainage system. Your Washing Machine has been connected to an appropriate mains power supply and is switched on at the socket. - Page 12 USAGE Close zips and fasten any hooks and eyes. Gently push the door until it clicks shut. Check that no items of clothing are trapped Items such as trousers, t-shirts, sweat shirts and knitted garments should be turned inside between the rubber seal and the door. out.
- Page 13 USAGE Fabric Conditioners and Liquid Starch: It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the fluid detergent level plate into the guides in compartment II of the detergent drawer (fig 11). Use Fabric conditioners make garments soft to handle.
- Page 14 USAGE Please Note: After selecting the delay function, you can select other additional functions Day to day washing: Recommended Programmes: 2, 9, 10, 11 and 12 These programmes are ideal for washing lightly soiled cottons and synthetics as separated before pressing the Start/Pause button to activate the delay function. or mixed washes.
- Page 15 USAGE 3. ECO 20 Programme Modes: Washing Temperature ( , -- Please Note: Programme duration might change according to the load, ambient temperature Maximum Dry Load (kg) and selected additional functions. Settings in bold are factory presets. Detergent Compartment Programme Duration (minutes) 1.
- Page 16 USAGE 6. Handwash 9. Daily 60 min Washing Temperature ( , -- Washing Temperature ( , 50 , 40 , 30 , -- Maximum Dry Load (kg) Maximum Dry Load (kg) Detergent Compartment Detergent Compartment Programme Duration (minutes) Programme Duration (minutes) Laundry Type Sensitive laundry or laundry recommended Laundry Type...
- Page 17 USAGE 11. Mix 30 14. Baby Care Washing Temperature ( , -- Washing Temperature ( , 50 , 40 , 30 , -- Maximum Dry Load (kg) Maximum Dry Load (kg) Detergent Compartment Detergent Compartment Programme Duration (minutes) Programme Duration (minutes) Laundry Type Dirty cotton, synthetics, coloureds and Laundry Type...
-
Page 18: Usage
You will be pleased to learn that your Servis Washing Machine has an in-built sensor that This is the hottest temperature available on prevents your Washing Machine operating with an out-of-balance load; it will make several your Washing Machine and is suitable for attempts to balance the load prior to the spin cycle. - Page 19 USAGE Additional Functions: The table below provides information on the selectable soil level functions for each programme: To allow you to get the best washing results possible, your Washing Machine offers the Programmes Soil Level: Factory Selectable Levels following additional functions to complement the selected programme. Selectable or Preset You can select an additional function before starting a programme:...
- Page 20 USAGE Removing Your Laundry: Extra Rinse - This allows you to add up to 3 additional rinses to your laundry. Press the button until the required number is shown. For example the symbol indicates that Turn the programme selection dial to the Stop position. Your Washing Machine door lock 1 additional rinse has been selected.
-
Page 21: General Maintenance
MAINTENANCE GENERAL MAINTENANCE Filters: From time to time it may be necessary to carry out some routine maintenance of your Washing Water Inlet Filters: Machine to ensure that it operates as intended. Before cleaning your Washing Machine: Water inlet filters prevent dirt and foreign materials from entering your machine. It is Turn your mains power supply off and remove the plug from the socket. - Page 22 MAINTENANCE GENERAL MAINTENANCE Cleaning the Pump Filter: Clean the filter thoroughly with a soft brush, wash with soapy water and rinse thoroughly. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine. Pull the top of the cover forwards using the finger groove, until the Re-insert the filter by gently pushing it back into place.
- Page 23 MAINTENANCE Remove any foreign materials from the filter with a soft brush. Move the pump by hand to check that it rotates freely. Clean the pump with a soft brush. After Cleaning: Re-fit the filter by inserting it and turning clockwise. Close the filter cover.
-
Page 24: Clothing Care
CLOTHING CARE SIPHON PLUG The siphon plug is located in the compartment of the detergent drawer. Remove the detergent drawer fully and pull the plug upwards. Clean the plug with a soft brush and replace, checking that it is firmly in position. GENERAL WASHING INSTRUCTIONS Drip Dry Dry Flat... - Page 25 CLOTHING CARE STAIN REMOVAL INFORMATION If can often be hard to know the best way to treat a stubborn stain. To help with this we’ve Mustard: provided you with a few tips on dealing with the most common types before running your wash Apply glycerine to the stained area, rub with detergent and hand wash.
-
Page 26: Troubleshooting
See page 38 for detailed will provide you will more information. instructions If your machine has developed a fault not covered in this manual, please contact the Servis Your Washing Machine is not The drain hose is bent, Check the drain hose and helpdesk. - Page 27 Washing drain the water. Turn your Washing Machine information Machine off, unplug it and contact the Servis helpdesk The water from the machine The end of the water drain Check that the drain hose is There is no water supply or...
-
Page 28: Disposal Of Your Old Machine
The Servis guarantee is not transferable. break the door hinges or lock. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim. The above summary does not include all of the terms and conditions and exclusions which can Please refer to the rear cover for disposal instructions. -
Page 29: Index
INDEX Adding detergent ..........20 Fabric conditioner .........22 Power supply failure ........36 Technical specification .........08 Additional functions ........33 Feet, adjustment ...........11 Preparing your laundry ........18 Temperature selection ........22 A djusting the feet...........11 Filters .............38 Programme end ..........35 Transit bolt, re-fitting ........10 First wash ............18 Programme modes ........25 Transit bolt, removal ........09... - Page 30 T: 0800 0124 382 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
