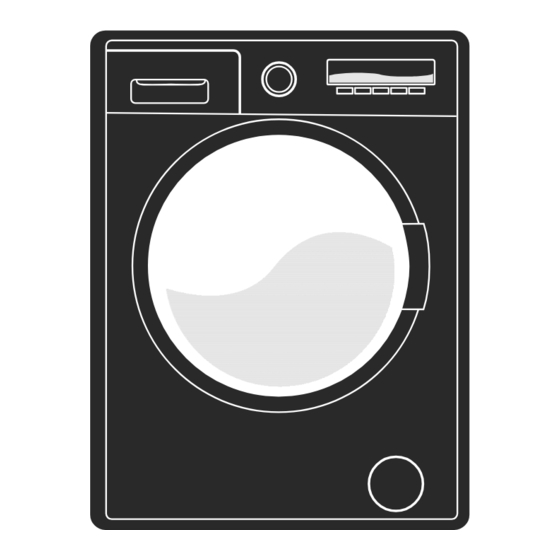

- Page 1 WASHING MACHINE User Manual Model Numbers: W81454F4B W81454F4W...
-
Page 2: Table Of Contents
Safety Instructions Your Washing Machine PARTS WARRANTY Technical Specifi cation Installation SERVIS.CO.UK 0333 577 7232 Your appliance comes with a free one year parts and labour warranty. Register within 30 days of purchase to receive a free second year Usage parts warranty. -
Page 3: Welcome
WARRANTY To ensure your safety and the safety of others, please read the following safety Servis provides you with a guarantee which will protect you should your Washing Machine precautions before you operate your Washing Machine. develop an electrical or mechanical fault during the guarantee period. To ensure that you get a prompt and efficient service, please register your Washing Machine immediately. - Page 4 Old hoses must not be reused. qualified electrician. Do not make any alterations to your Washing Machine, unless authorised to do so by Servis. Do not connect your Washing Machine to the mains electricity supply using an extension lead.
-
Page 5: Your Washing Machine
YOUR WASHING MACHINE FRONT VIEW REAR VIEW Detergent drawer Programme dial Drain hose Control panel Cold water inlet Door handle Transit bolts Pump filter cover Detergent drawer; Allows you to insert detergent, fabric conditioner and starch. Programme dial; Allows you to select the programme for your wash. Drain hose;... -
Page 6: Technical Specification
YOUR WASHING MACHINE TECHNICAL SPECIFICATION DETERGENT DRAWER TECHNICAL SPECIFICATION Compartment Main Wash Voltage V/Frequency (Hz) 220-240V/50Hz Compartment Electrical Current (A) Power Rating (W) 2200 Water Consumption (l/Cycle) Energy Consumption (Cotton 60 Full load) 0.80 (kWh/Cycle) Pre-Wash Compartment Unpacked Dimensions (H x W x D) (cm) 84.5 x 59.7 x 55.7 Gross Weight (kg) 71.5... -
Page 7: Installation
INSTALLATION Pull out the remaining plastic section of each transit bolt by hand. This will require a INSTALLATION REQUIREMENTS reasonable amount of force (fig 5c). Insert the blanking caps (4 off): Push the cap into the hole until the four connectors click into To avoid risk of injury, please take care when moving your Washing Machine. - Page 8 INSTALLATION ADJUSTING THE FEET WATER SUPPLY CONNECTION For safe operation, it is important that your Washing Machine is level and securely positioned on Your Washing Machine uses an energy efficient cold fill system, which means that only the all four feet. Incorrect installation may cause the Washing Machine to vibrate and increase your water required to wash the laundry is heated.
- Page 9 INSTALLATION WATER SUPPLY CONNECTION Screw the straight end of the hose clockwise to a 19mm (3/4’’) cold water tap until hand tight (fig 8). Take care not to trap or kink the hose. a: The drain hose can be connected Max height 100cm to a standpipe, as shown.
- Page 10 INSTALLATION ELECTRICAL CONNECTION The cold water pressure for a normal household system ranges from between 0.1 to 1 MPa. Your Washing Machine will run at optimum efficiency in this range. Your Washing Machine requires a 220-240V, 50Hz mains supply. Do not use any other supply.
-
Page 11: Usage
USAGE CONTROL PANEL OVERVIEW RUNNING YOUR FIRST WASH Before using your Washing Machine for the first time; check that: The transit bolts have been removed. Your Washing Machine has been correctly connected to your water supply and your water drainage system. Your Washing Machine has been connected to an appropriate mains power supply and is switched on at the socket. - Page 12 USAGE Close zips and fasten any hooks and eyes. Gently push the door until it clicks shut. Check that no items of clothing are trapped Items such as trousers, t-shirts, sweat shirts and knitted garments should be turned inside between the rubber seal and the door. out.
- Page 13 USAGE It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the Fabric Conditioners and Liquid Starch: fluid detergent level plate into the guides in compartment II of the detergent drawer (fig 11). Use the lines on the plate as a guide to fill the drawer to the required level.
- Page 14 USAGE Starting a Programme: Programme 15 (Super Rapid 15 Min): To start the selected programme, press the Programme Start/Pause button. The fast wash speed of this programme is made possible by the use of HydroDrive technology, which pumps water and detergent into the drum through two nozzles instead of one. The Wash Level Display: 15-minute wash is only intended for small loads and quick refreshes of laundry that is only very slightly dirty;...
- Page 15 USAGE Programme Modes: Programme Settings and Wash Cycles Programme Name Max Dry Wash Type Wash Type Wash Time Wash Time Programme Laundry Type Pre-Wash Temp Rinse Usable Load (kg) (Min) (Min) Detergent Cotton 90 Heavy Soiled Cotton and Linen Textiles Cotton Day to Day Cotton and Linen Textiles...
- Page 16 You will be pleased to learn that your Servis Washing Machine has an in-built sensor that This is the hottest temperature available on prevents your Washing Machine operating with an out-of-balance load; it will make several your Washing Machine and is suitable for white cottons and linen that show dirt.
- Page 17 USAGE Removing Your Laundry: Additional Functions: To allow you to get the best washing results possible, your Washing Machine offers the Turn the programme selection dial to the off (0) position. Your Washing Machine door lock following functions to complement the selected programme. will automatically be released approximately 2 minutes after the programme has finished.
-
Page 18: Maintenance
MAINTENANCE GENERAL MAINTENANCE Filters: From time to time it may be necessary to carry out some routine maintenance of your Washing Water Inlet Filters: Machine to ensure that it operates as intended. Before cleaning your Washing Machine: Water inlet filters prevent dirt and foreign materials from entering your machine. It is Turn the mains power supply off and remove the plug from the socket. - Page 19 MAINTENANCE GENERAL MAINTENANCE Cleaning the Pump Filter: Clean the filter thoroughly with a soft brush, wash with soapy water and rinse thoroughly. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine. Pull the top of the cover forwards using the finger groove, until the Re-insert the filter by gently pushing it back into place.
- Page 20 MAINTENANCE Remove any foreign materials from the filter with a soft brush. Move the pump by hand to check that it rotates freely. Clean the pump with a soft brush. After Cleaning: Re-fit the filter by inserting it and turning clockwise. Close the filter cover.
-
Page 21: Clothing Care
CLOTHING CARE SIPHON PLUG The siphon plug is located in the compartment of the detergent drawer. Remove the detergent drawer fully and pull the plug upwards. Clean the plug with a soft brush and replace, checking that it is firmly in position. GENERAL WASHING INSTRUCTIONS Drip Dry Dry Flat... - Page 22 CLOTHING CARE STAIN REMOVAL INFORMATION Mustard: If can often be hard to know the best way to treat a stubborn stain. To help with this we’ve Apply glycerine to the stained area, rub with detergent and hand wash. provided you with a few tips on dealing with the most common types before running your wash cycle.
-
Page 23: Troubleshooting
If your machine has developed a fault not covered in this manual, please contact the Servis twists or bends helpdesk. The pump filter is obstructed Clean the pump filter. - Page 24 The most common failure codes are shown Machines below. If your machine displays a code not shown, or if the problem persists after you have taken corrective action, consult the Servis helpdesk. The washing result is not as Your laundry is too dirty...
-
Page 25: Guarantee
The Servis guarantee is not transferable. break the door hinges or lock. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim. The above summary does not include all of the terms and conditions and exclusions which can Please refer to the rear cover for disposal instructions. -
Page 26: Index
INDEX Adding detergent ..........20 Fabric conditioner ..........21 Power supply failure ........30 Technical specification .........08 Additional functions ........29 Feet, adjustment ...........11 Preparing your laundry ........18 Temperature selection ........27 A djusting the feet...........11 Filters .............32 Programme end ..........29 Transit bolt, re-fitting ........10 First wash ............18 Programme modes ........25 Transit bolt, removal ........09... - Page 27 T: 0333 577 7232 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
