FUTABA 6EXA Instruction Manual

FUTABA 6EXA Instruction Manual

6-channel, fm radio control system for aircraft
Hide thumbs Also See for 6EXA:
Table of Contents

Advertisement

Quick Links

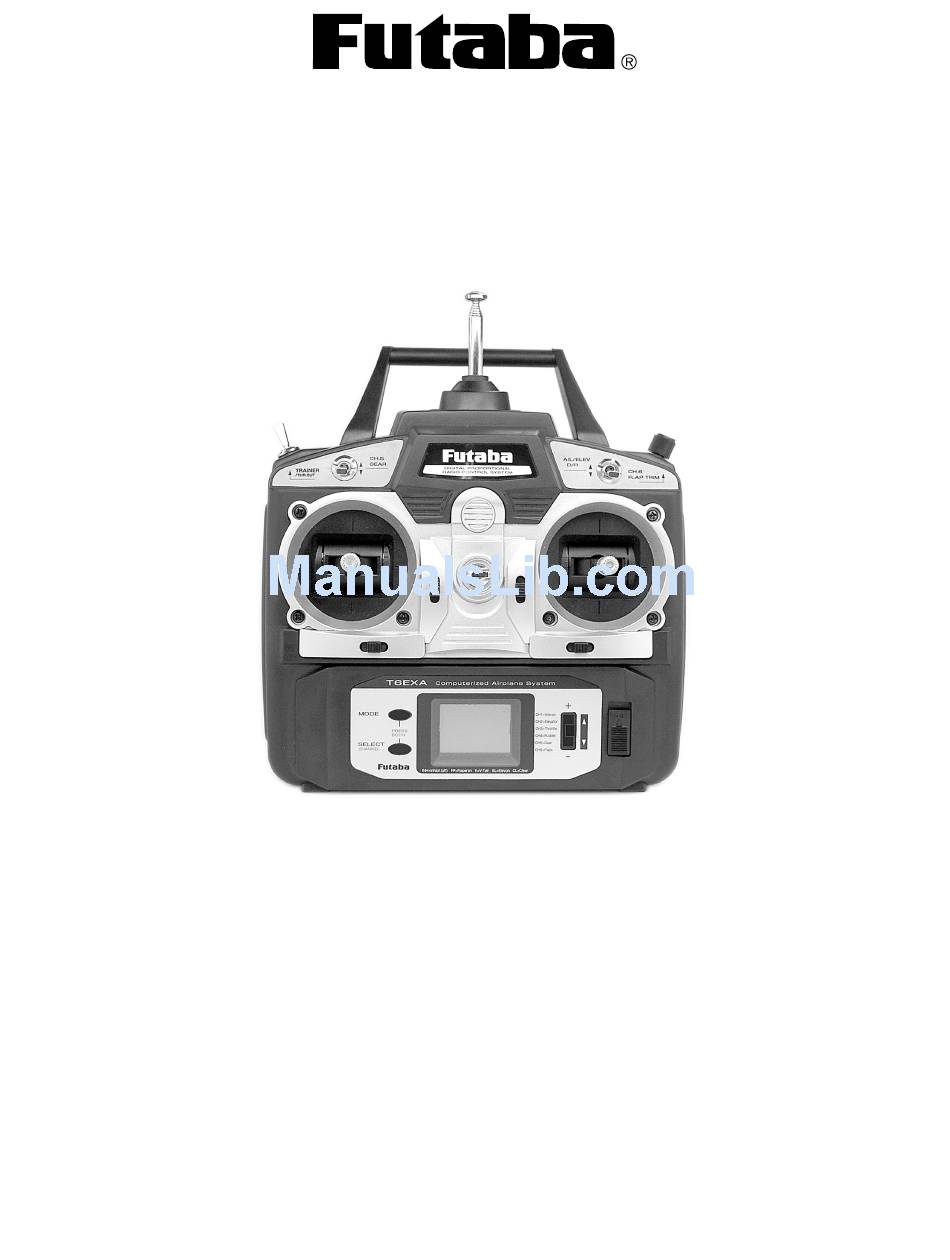

6 6
E E X
X A
A
I I N N S S T T R R U U C C T T I I O O N N M M A A N N U U A A L L
f f o o r r F F u u t t a a b b a a 6 6 E E X X A A 6-channel,
FM radio control system for aircraft
Futaba Corporation
http://www.futaba-rc.com
Technical updates available at:
Entire Contents © Copyright 2003
FUTZ9032 for FUTK55** V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6EXA and is the answer not in the manual?

Questions and answers

Related Manuals for FUTABA 6EXA

Summary of Contents for FUTABA 6EXA

  • Page 1 F F u u t t a a b b a a 6 6 E E X X A A 6-channel, FM radio control system for aircraft Futaba Corporation http://www.futaba-rc.com Technical updates available at: Entire Contents ©...

  • Page 2: Table Of Contents

    “non-computer” radio. Although this is a beginner or sport system with the requirements of those flyers in mind, in order to make the best use of your Futaba 6EXA and to operate it safely, you m m ust c c arefully r r ead a a ll o o f t t he i i nstructions.

  • Page 3: Contents A A Nd S S Pecifications

    Throw can also refer to the distance a servo arm (or wheel) travels. Dual r r ate ( ( D/R) – On the 6EXA the dual rate switch allows you to instantly switch, in flight, between two different control throws for the aileron and elevator. Often, different control throws are required for different types of flying.

  • Page 4: Introduction T T O T T He 6 6 Exa S S Ystem

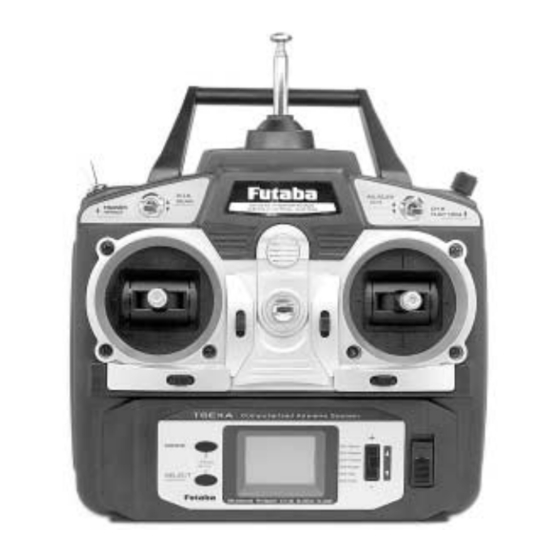

    Transmitter The T6EXA FM 6-channel transmitter may be used with any Futaba, narrow band, FM receiver. The liquid-crystal display (LCD) on the face of the compact, ergonomically-designed case is easy to read and allows rapid data input. The system also holds independent memories for six different models.

  • Page 5: Radio I I Nstallation

    • Note the small numbers (1, 2, 3, 4) molded into each arm on the Futaba 4-arm servo arms. The numbers indicate how many degrees each arm is “off” from 90 degrees to correct for minute manufacturing deviations from servo to servo.
  • Page 6 • After the servos are installed, operate each servo over its full travel and check that the pushrods and servo arms do not bind or contact each other. Also make sure the controls do not require excess force to operate. If there is an objectionable buzzing sound coming from a servo, there is probably too much resistance in the control.

  • Page 7: Receiver A A Nd S S Ervo C C Onnections

    (CH1) CHARGING T T HE N N i-C C d B B ATTERIES The transmitter and receiver batteries included with your 6EXA system are rechargeable, Ni-Cd (nickel-cadmium, pronounced ‘ni •kad) batteries. Ni-Cd batteries require special care and charging. Read t t he c c harging i i nstructions c c arefully.

  • Page 8: Lcd A A Nd P P Rogramming C C Ontrols

    If there is a noticeable drop in capacity the batteries should be replaced. Note: Charging your batteries with the included Futaba A/C battery charger is always safe. However, fast-charging with an aftermarket charger is acceptable as long as you know how to properly operate the charger. NEVER charge at a rate higher than 1,000 mAh (1 Amp).

  • Page 9: Programming T T He T T 6Exa R R Adio

    Model m m emory n n umber The Futaba T6EXA stores model memories for six models. This means all the data (control throws, trims, end points, etc.) for up to six different models can be stored in the transmitter and activated at any time (depending upon which model you choose to fly that day).

  • Page 10: Model Select/Data Reset

    D/R — — D D ual R R ates/Exponential S S ettings The aileron and elevator dual rates on the 6EXA are simultaneously activated by the dual rate switch. The amount of travel decrease for each control may be set between 0% and 100% of the values set for the end points (explained in End Point Adjustment on page 11).

  • Page 11: Exponentials

    Dual R R ate S S ettings To s s et t t he d d ual r r ates: 1. Enter the programming mode. Access the D/R screen with the MODE key. 2. Select the channel to be adjusted (1-aileron, 2-elevator) by pressing the SELECT key until the desired channel number appears on the screen.

  • Page 12: Trims

    TRIM — — T T rim S S ettings There are four trim levers (“trims”) on the front of the transmitter. Three of the trims are for adjusting the neutral position of the aileron, elevator and rudder servos. The fourth trim is for setting the idle r.p.m. of the engine when the throttle stick is all the way down.

  • Page 13: Pre Programmed "Wing" Mixing

    3. Select the channel that will control the mix (called the master) by pressing the SELECT key twice to display the channel number with the arrow above it, then by pressing the DATA INPUT lever to select the channel number desired. The channel on the screen with the arrow above it is now the master.
  • Page 14 Flaperon m m ixing ( ( FP) This function allows the ailerons to be used both as ailerons and as flaps. The flap control dial (CH 6) operates the flap function. To use flaperon mixing both ailerons must be operated by separate servos. To a a ctivate f f laperon m m ixing: 1.
  • Page 15 Flaperon + + v v -t t ail m m ixing ( ( FPv) This mixing function is used when both V-t t ail mixing and flaperon mixing are required. To a a ctivate F F laperon + + V V -t t ail m m ixing: 1.

  • Page 16: Flow Chart

    FLOW C C HART 6EXA F F UNCTIONS Stick Mode (Screen at Startup) To change the Stick Mode, turn on the transmitter holding MODE and To enter or leave Programming Mode, SELECT keys down simultaneously. press MODE and SELECT keys simultaneously for one second.

  • Page 17: Other T T 6Exa F F Unctions

    Then he will have immediate, full control. If connecting the 6EXA to another 6EXA with the small, square “micro” trainer jack, use the “Micro to Micro (MM-TC) trainer cord (FUTM4415). If connecting the 6EXA to Futaba radios with the larger, round, “DIN” connector, use “Micro to DIN” (MD-TC) trainer cord (FUTM4420).

  • Page 18: Adjustable-Length Control Sticks

    LCD screen. Push the DATA INPUT lever up or down to change the mode. If a mode is selected that moves the throttle control to the right stick, the throttle detent mechanism will have to be moved as well. This can be done by the Futaba Service Center.

  • Page 19: Flight P P Reparation

    FLIGHT P P REPARATION Flight preparation is to be done at the flying field. IMPORTANT: Your radio control system transmits a signal on a certain frequency. Be certain you know what the frequency is. This is expressed as a two-digit number (42, 56, etc.), and can be found on the container the transmitter came in and is also located on the transmitter and receiver.

  • Page 20: Frequency C C Hart

    MM-TC trainer cord............FUTM4415 Flight p p acks – since your Futaba 6EXA transmitter holds memories for up to six models, there is no need to purchase a complete radio system (including the transmitter) for every model you fly. Available separately, Futaba Flight Packs contain a receiver, servos, switch, battery and all servo mounting hardware.
