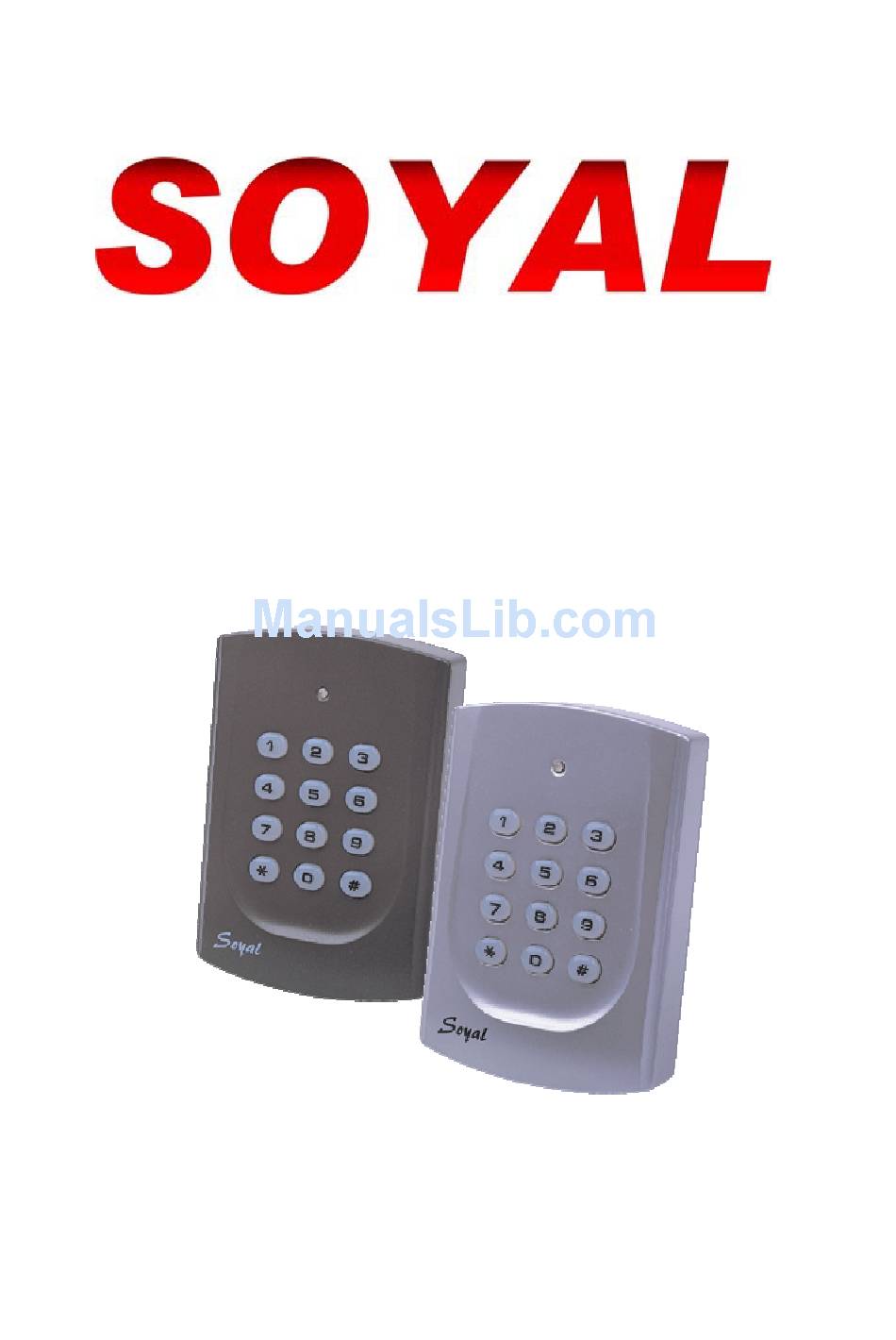

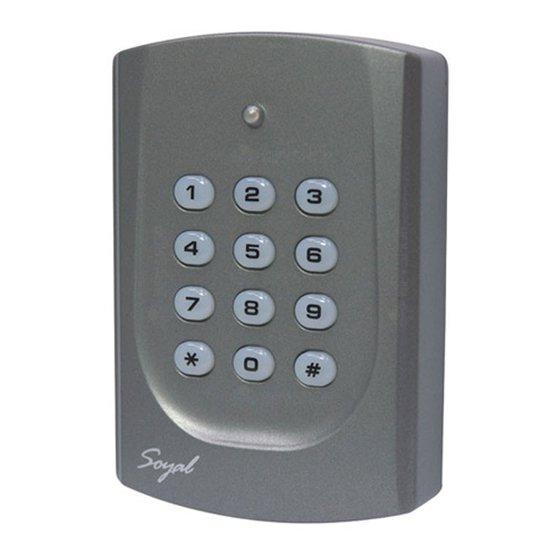

  • Page 1 Operation Manual Keypad AR-721KP 2005/12/16...

  • Page 2: Table Of Contents

    Table of Contents 1 Main Feature ------------------------------------------------------------------------------ 2 Notice ------------------------------------------------------------------------------ 3 Front Panel Indicators --------------------------------------------------------------------- 4 Easy Guide ------------------------------------------------------------------------- 3 5 Installation ----------------------------------------------------------------------------- 5.1 Steps 5.2 Installation Notice 6 Terminal Cable ------------------------------------------------------------------------------ 7 Installation diagram ------------------------------------------------------------------------------ 7.1Electric bolt lock & Electric strike 7.2 Bell &...

  • Page 3: Main Feature

    123456. If you would like to delete all user codes. Remove the AR-721KP from the mounting plate. Press and hold the reset switch 10 seconds (RESTER, on the KEYPAD circuit board).

  • Page 4: Easy Guide

    4. Easy Guide Enter the programming mode Press (all new units are preprogrammed with the master code 123456). The LED will flash green rapidly to show that the unit is in the programming mode. The unit will time out and return to the reading mode in 30 seconds if no key is pressed. Exit the programming mode Press -- exit the programming mode and return to the reading mode.
  • Page 5 Add a User Code to the system Step1: Press and master code fallow an Step2: Enter User Number User Code The above for example, the user number 001 can access the door by entering 2081#. Note that a user code must be 3 to 6 digits in length and the key # cannot be used in a code.
  • Page 6 Enable a User Code to the system Step1: Press and master code fallow an Step2: Enter Starting User Number 1 Ending User Number 1 A green light and beep means that the user code is enabled. Step3: Press Enable a range of User Code to the system Step1: Press and master code fallow an Step2: Enter...
  • Page 7 Set the door relay-1 release time Step1: Press and master code fallow an Step2: Enter 1 Seconds TTT = 000: Latch (Toggle) / TTT = 001 ~ 600 (001 ~ 600) seconds / TTT = 601 ~ 609 (0.1 ~ 0.9 ) second. A green light and beep means that the door relay release time was changed.

  • Page 8: Installation

    5.2 Installation Notice 1. Exit Switch input must be a dry contact, with no voltage present. 2. The AR-721KP does not supply power to operate electric strike or magnetic locks – a separate supply is required. Refer to strike/magnetic lock manufactures instructions.

  • Page 9: Terminal Cable

    6. Terminal Cable Table 1 - Connector CN1 Coding Wire Wire Description Application Door Relay-1 (N.C.) DC24V1Amp (N.O.) DC24V1Amp (COM) DC24V1Amp Exit Switch Door Relay-1 Negative Trigger Input Door Relay-2 Negative Trigger Input DC Power 12V Power DC Power 0V Table 2 - Connector CN2 Coding Wire Wire...

  • Page 10: Installation Diagram

    7. Installation diagram 7.1 Electric bolt lock & Electric strike...

  • Page 11: Bell & Electric Bolt Lock

    7.2 Bell & Electric bolt lock The installation of 721KP, electric strike and door bell Lock(+15VDC ) Power Supply 15VDC 2.4A Electric Strike Power Supply 15VDC 2.4A Push Button DOOR EXIT 721KP RESET ( COM. ) RELAY ( N.O. ) Power Supply 15VDC 2.4A Door Bell...

  • Page 12: Return Of Products

    God (such as floods, fire, etc.). SOYAL shall, at its option, either repair or replace product(s) which prove to be defective within the warranty period.

  • Page 13: Transponder Record Table

    11. Transponder Record Table Be sure to record the user number, the user name and the user code and keep this information in a secure place. A black user log form has been included for purpose. Do not write on this form; use it as a photocopy master. User Number User Name User Code...
