Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfill your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality, and high quality.
These are key characteristics of all our products and the reason they are greatly
appreciated throughout the world.
To get the most out of your new dishwasher, we recommend that you read the
operating instructions before using it. The operating instructions also include
information on how you can help protect the environment.
Do you need this Use&Care Guide in Spanish? Log on to
www.askousa.com/customer-care to download.
¿Necesita esta Instrucciones de uso y cuidado en español? Entre en
www.askousa.com/customer-care y descárguesela.

Operating Instructions

Dishwasher

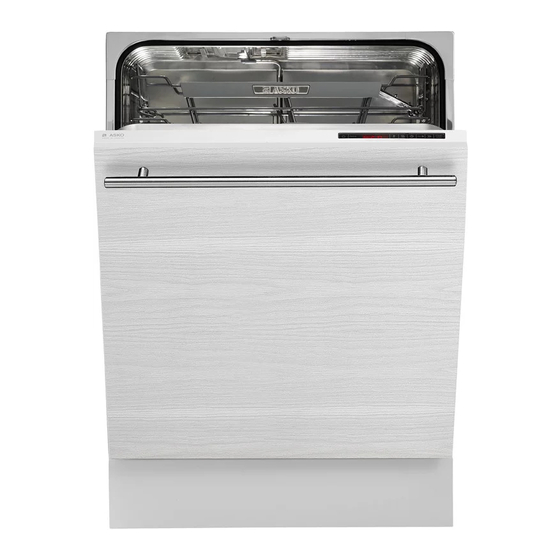

ASKO D5524XXLFI

Advertisement

Table of Contents
loading

Related Manuals for Asko D5524XXLFI

Summary of Contents for Asko D5524XXLFI

  • Page 1: Operating Instructions

    Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfill your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 2: Table Of Contents

    CONTENTS FRONT PANEL CARE AND MAINTENANCE IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS BEFORE WASHING FOR THE FIRST TIME TROUBLESHOOTING LOADING THE DISHWASHER TECHNICAL INFORMATION USING THE DISHWASHER SERVICE SETTINGS PROGRAM CHART FRONT PANEL The panel is fitted with touch buttons with audible feedback (see the chapter Settings). On/Left-on mode Display High temperature...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE • Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e., one or two glasses of milk or WARNING! water. Do not try to induce vomiting. Seek medical advice immediately: Call the National Capital Poison Center at This manual does not cover all possible conditions and situations 1-800-222-1222.

  • Page 4: Before Washing For The First Time

    BEFORE WASHING FOR THE FIRST TIME WATER SUPPLY REFILL RINSE AID INDICATOR The machine can be connected to either a hot (max. 160 °F, 70 When the rinse aid needs topping up, the above symbol lights on °C) or cold water supply. We recommend a cold water supply. the display.

  • Page 5: Loading The Dishwasher

    LOADING THE DISHWASHER Wood ECONOMIC DISHWASHING Wooden items should only be washed in a dishwasher if marked Run programs only with a full load dishwasher safe. Wait until the dishwasher is fully loaded before running a program, this way you save energy. Use the Rinse & Hold program to rinse Aluminum the dishes if there are any unpleasant odors while you wait for the Aluminum can lose its shine if washed in a dishwasher.
  • Page 6 NOTE! All dirty surfaces should face in and down! Forward mount for plate support Used for plates with a diameter greater than 9 3/4" (25 cm). LOWER BASKET CUTLERY BASKET Place plates, side plates, serving dishes, pots, and cutlery (in the Place cutlery with the handles facing down, except for knives, and cutlery basket) in the lower basket.

  • Page 7: Using The Dishwasher

    USING THE DISHWASHER ADD DETERGENT Recommended detergent amounts based on water hardness Water hardness Detergent amounts Soft Prewash 1 teaspoon (0-3 grains per gallon) Main wash 1 to 1-1/2 tablespoons Medium Prewash 1 teaspoon (4-8 grains per gallon) Main wash 1 to 2 tablespoons Hard Prewash 1 teaspoon (9+ grains*)

  • Page 8: Time Remaining

    You can vary the temperature as shown below: Daily wash Heavy wash: 140 °F (60 °C) / 160 °F (70 °C) A program suitable for day-to-day dishwashing. This program can Normal wash: 130 °F (55 °C) / 150 °F (65 °C) also clean dried leftovers, but is not intended for burnt food, such Daily wash: 140 °F (60 °C)/150 °F (65 °C)
  • Page 9 DO YOU WANT TO ADD MORE DISHES? ONCE THE PROGRAM HAS FINISHED Open the door. The dishwasher stops automatically. Add the Once the program has finished and the door is opened, "End" dishes, close the door, and the dishwasher resumes the program. appears on the display.

  • Page 10: Settings

    SETTINGS DO AS FOLLOWS TO OPEN THE SETTINGS MENU: First, open the door. Turn off the dishwasher using the On/Left-on mode button (press and hold). Release the button. Press and hold the On/Left-on mode button until the display lights up. Within five seconds, press and hold the Program selector and the Long dry button.
  • Page 11 Button press Options Settings Description Operation volume This sound is used to confirm each button press. (Off) (Low) (High) Press Start/Stop to save the setting value and continue to the next setting. LCD contrast For adjusting the contrast of the display on the panel. (Low) (High) Press Start/Stop to save the setting value and continue to the next setting.

  • Page 12: Care And Maintenance Instructions

    CARE AND MAINTENANCE INSTRUCTIONS COARSE FILTER NOTE! The coarse filter traps larger food particles, which cannot get past The dishwasher must not be used without the filter in place! the drain pump. Empty the coarse filter as necessary. Dishwashing efficiency can be affected if the coarse filter is 1 Lift the coarse filter by the handle.
  • Page 13 2 Remove any debris using a needle, toothpick, or some other DOOR similar pointed device. The spray arms also have holes When cleaning the edge around the door, use only a slightly damp underneath. cloth (with a little cleaner if necessary). WARNING! Do not use a spray bottle or the like around the door lock.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Display Type of fault Action Overfilling Call the Customer Care Center. Water outlet fault See "Water remains in the dishwasher above the filters" in the table below. Water inlet fault Check that the water supply valve is on. Inlet valve leakage Turn off the water supply valve and call the Customer Care Center.
  • Page 15 Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has been pressed Press and hold Start/Stop until the display for too short a time. shows (the door open symbol). This indicates that the dishwasher is ready to start. The door is not properly closed.
  • Page 16 Problem Possible causes Action The touch buttons do not react when pressed. You have pressed the touch buttons too soon Wait a moment then try again. after opening the door. Dirt on the touch buttons. Clean with a dry or slightly damp cloth. Open the door until the display lights up.

  • Page 17: Technical Information

    TECHNICAL INFORMATION TECHNICAL DATA Height: 33-7/8" - 36" (860-914 mm) Width: 23-5/8" (600 mm) Depth: 22-7/8" (581 mm) Weight: 110 lb (50 kg) Water pressure: 4.2–140 psi Electrical connection: See serial number tag and rating plate. Rated power: See serial number tag and rating plate. Weight can vary due to different specifications.

  • Page 18: Service

    Read the chapter Troubleshooting before contacting the Customer application must be filed with ASKO within One (1) year from date Care Center. Make a note of the information on the serial number of purchase.

  • Page 19: Program Chart

    PROGRAM CHART Customer Care Center 1-800-898-1879 www.askousa.com...

  • Page 20: Quick Guide

    Close and reopen the door, or press the On/Left-on mode button, to reactivate the panel. PRESS AND HOLD START/STOP AND CLOSE THE DOOR (SEE PAGE 8) www.asko.com Item No.: 8094327. Rev. 03. We reserve the right to make changes.
