INSTALLATION INSTRUCTIONS FOR S SERIES LOG SET
SL400TYLA SN400TYLA

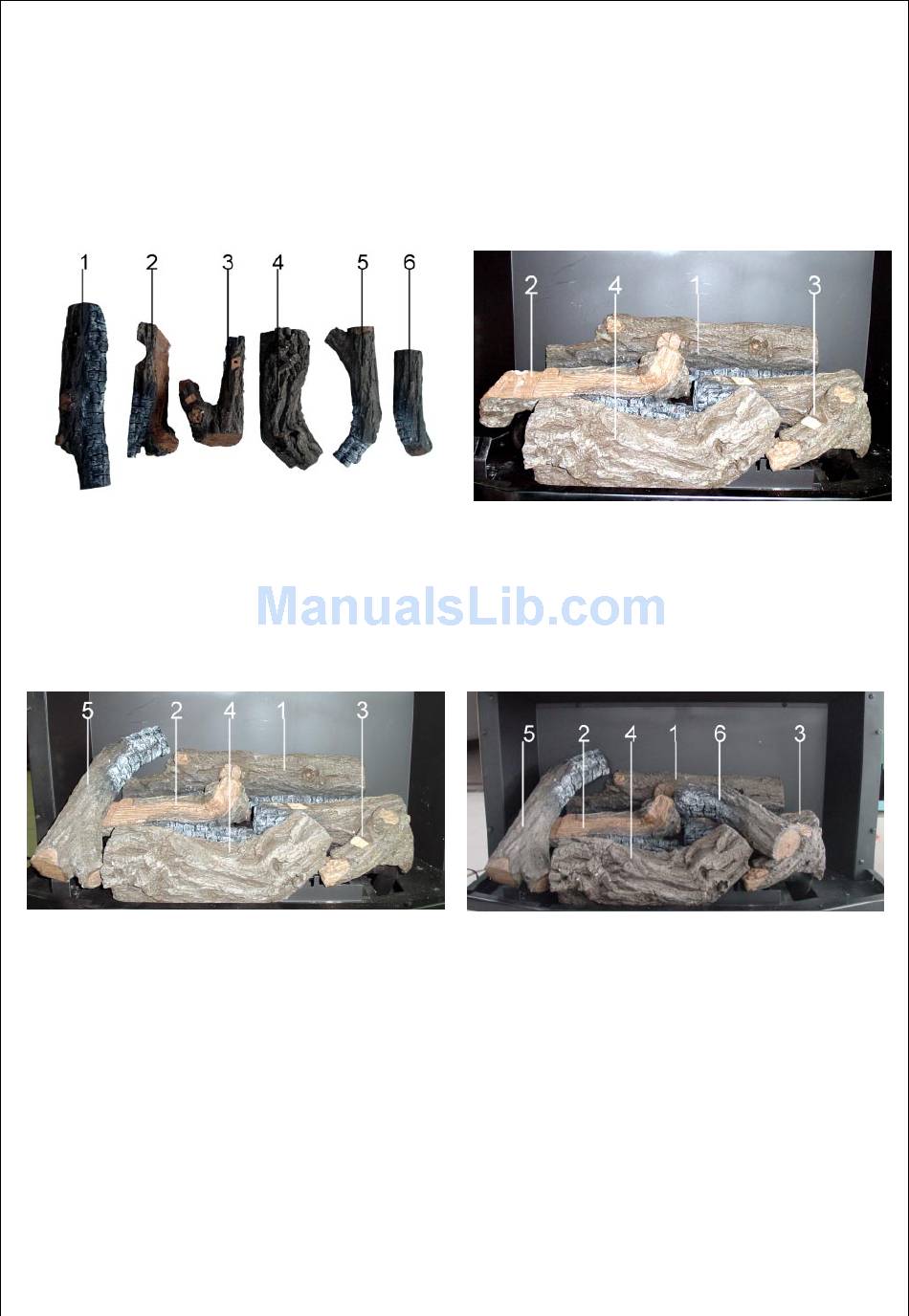

The full set of logs for SN400TYLA and SL400TYLA(See Figure 1).
Figure 1
STEP 1: Put log1, log2,log3 and log4 on the log bracket (angle iron) fixed by nuts. (See
Figure 2).
Figure 3
STEP 2: Put log 5 on top of log1 and log2, as shown in the drawing (See Figure 3).
S TEP 3: Put log6, on top of log3 as shown in the drawing (See Figure 4).
2 3
Figure 2
Figure 4
