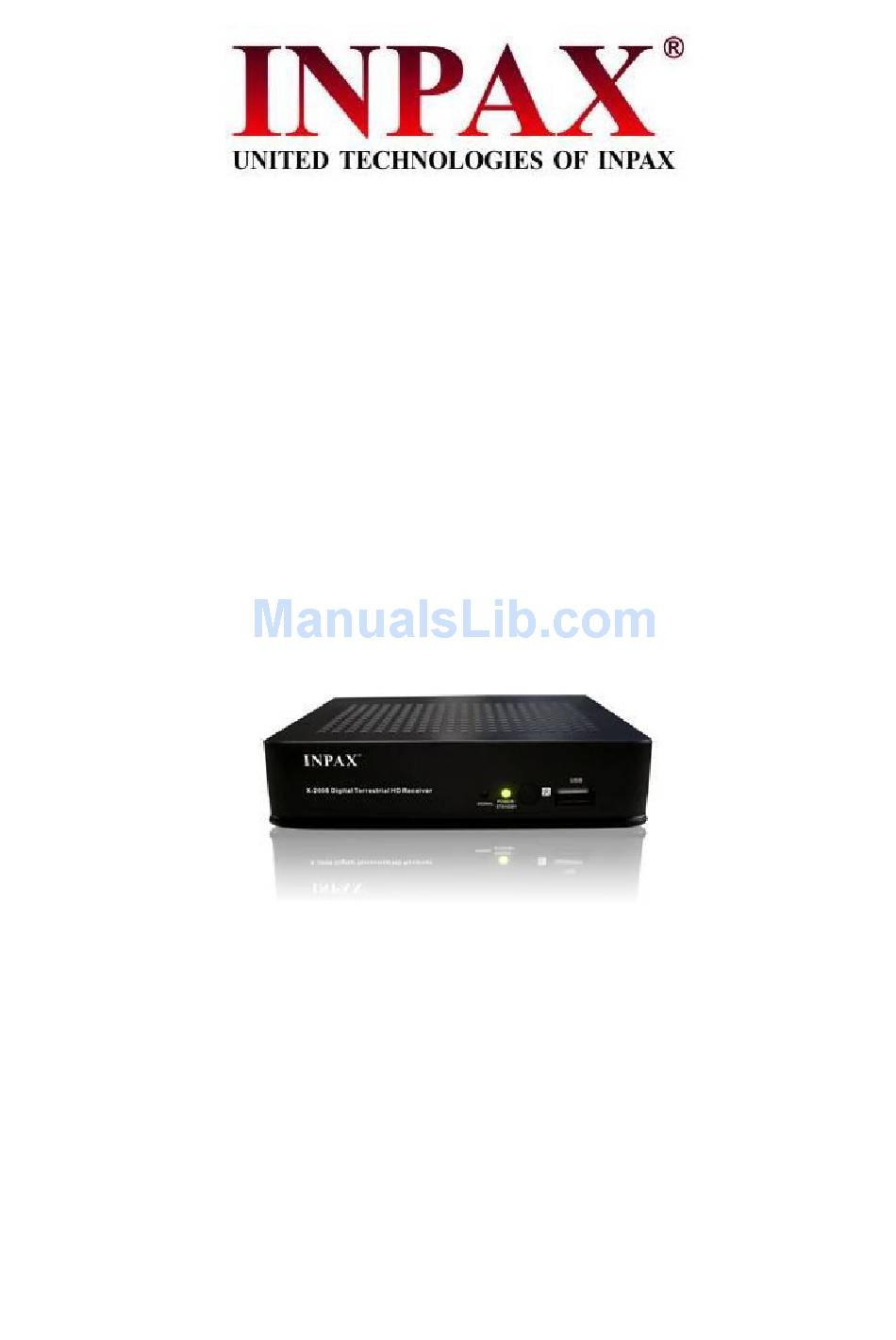

Page 1: User Manual
X -2008 DVB-T HD-Mpeg4 Receiver USER MANUAL Please read this user manual before using or connecting this product And keep it handy for future reference... -
Page 2: Table Of Contents
Contents Safety Instructions---------------------- ----------------------------- -------3 Precautions-------------------------------------- ----------------------------- --4 Features------------------------------------------------------------- ---------------4 Accessories------------------------- ---------------------------- ------------------ 5 Front Panel-------------------------------------------- ----------------------------5 Rear Panel--------------------------- -----------------------------------------------5 About Remote Control --------------------------------------------------------6 Start---------------------------------- --------------------------- --------------- 7-9 Battery Inst allation---------- ------------------------------- ------------------------------7 Service Life of Batteries--- -------------------------------------------------------- -- -----7 Oper at ion Rang e of Remo te Con tr ol-- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- --7 Basic conn ections------------ -------------- --------------- ------------------------------- 8 Pr e p a r a t io n- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8... -
Page 3: Safety Instructions
Safety Instructions Dear customer, Thank you for purchasing this DVB Terrestrial Receiver. Please read this manual carefully before operating your product and pay close attention to the precautions which are mentioned below. Note This product only can be operated where the mains supply is ~100-240V, 50/60Hz. ... -
Page 4: Precautions
Precautions Peruse the following precautions before using. Power Cord Protection Do not insert fingers or other objects into Please complaint the following regulations the product It may damage the product or even hurt to avoid malfunction, fire and electric shock or other damage to human body. -
Page 5: Accessories
Accessories After purchasing receiver, unpack it and check to make sure that all of the following items are included in the packaging. Receiver one piece Remote control one piece User Manual one piece Batteries (AAA) two pieces Front Panels 1. Signal Indicator 2. -
Page 6: About Remote Control
About Remote Control Remote control Name Descriptions Switch your device on from STANDBY standby mode. Numeric Select channel or programming Buttons parameters. Display the main menu on the MENU screen, return previous menu or status. Switch device between TV and TV/RADIO Radio mode. -
Page 7: Start
Start Battery installation Operation range of remote control (Figure D) Install the batteries and make sure the positive (+) and negative (-) polarities matches as shown in Point the remote control to the IR receiver Figure C. window. The remote control shall be effective Service life of batteries within a distance of about 5 meters and an ... -
Page 8: Basic Connections
Start Basic Connections DVB-T receiver (Not including) Preparation AC IN Switch this product other equipments before connecting Read the User Manual carefully before connecting other equipments Plug the Audio and Video cable correctly When connecting this product with TV set, only one kind of video output format will be accepted. -
Page 9: Fast Installation
Start Connect this unit and other apparatus according to Chapter “BASIC CONNECTIONS”. Plug the power cord and wait “Installation Guide” window appears: Use [CH▲/▼] button to select item and [VOL◄/►] button to enter in its setup interface. The default OSD Language is “English”, country is “England”. -
Page 10: Advanced Operation
Advanced Operation Menu Operation Main Menu Press [MENU] button to browse the Main Menu including 7 sub-menus which are listed below: Program Picture Channel Search Time Option System USB Press [CH▲/▼] button to select menu item, press [OK] button to browse its submenu. Press [EXIT] button to return to the previous menu. -
Page 11: Pictur
Advanced Operation Move Press [RED] button to enter in “Move” interface. Use [CH ▲/▼] button to move channel and press [OK] button to confirm movement. Press [OK] button again to cancel movement. Press [ EXIT ] button to quit and save according to screen. ... -
Page 12: 3. Channel Search
Advanced Operation Aspect Ratio TV Format Resolution Video Output 2.1 Aspect Ratio Auto 4:3 Full 4:3 Pan & Scan 4:3 Letter Box 16:9 Wide Screen 2.2 Resolution PAL (1080i/720P/576P/576i) NTSC (1080i/720P/480P/480i) 2.3 TV Format ... -
Page 13: Tim
Advanced Operation 3.2 Manual Search Use [CH ▲/▼] button to select “Manual Search” and press [OK] button to enter in “manual search” interface. Press [VOL◄/►] button to set up “Channel No.”, “Frequency”, ”Bandwidth” and press [OK] button to start search. 3.3 Country Select this submenu with [CH ▲/▼... -
Page 14: Op T I O
Advanced Operation 5. Option Move cursor to “Option” and press [OK] button to enter in its submenu. There are 4 submenus which are listed below. OSD Language Subtitle Language Audio Language Digital Audio 5.1 OSD Language English/ Persian The default OSD language is Persian. -
Page 15: Usb
Advanced Operation 6.3 Restore Factory Default Choose “Restore Factory Default” and press [OK] button to load factory default. Press [EXIT] button to quit. Please operate according to screen. 6.4 Information Move cursor to “Information” and press [OK] button to browse information of the device. ... - Page 16 Advanced Operation 7.1 Multimedia Move cursor to “Multimedia” and press [OK] button to enter in its setup interface. Press [EXIT] button to quit. Music Use [CH ▲/▼] button to select song and press [OK] button to play. Use [ VOL ◄/►] button to adjust the volume level.
- Page 17 Advanced Operation 7.2 Photo Configure Move cursor to “Photo Configure” and press [OK] button to enter in its setup interface. Press [EXIT] button to quit. Slide Time 1-8 Seconds Slide Mode Random/0-59 Aspect Ratio Keep/Discard 7.3 Movie Configure Move cursor to “Movie Configure”...
-
Page 18: Setup Interface Table
Advanced Operation DVB-T Receiver Setup Interface Table Main Menu Submenu Options Move Rename Program Edit Lock Delete Book View/Record Edit Book List Program Delete Exit Page Down Page Up By LCN By ONID Sort By Service Name By Service ID ON/OFF Auto 4:3 Full... -
Page 19: Advanced Operation
Advanced Operation DVB-T Receiver Setup Interface Table Main Menu Submenu Options OSD Language Subtitle Language Audio Language Option Digital Audio Parental Off/04/05/06/07/08/09/10 /11/12/13/14/15/16/17/18 Guidance Input Old Password Set Password Input New Password System Confirm Password Restore Factory OK/EXIT Default Information Music Photo Multimedia... -
Page 20: Appendix
Appendix Maintenance ◆ Unplug the power cord before maintenance. ◆ Keep the product surface clean. Please use a piece of soft cloth to clean the outer if it’s dirty. ◆ Do not use any chemical products like Alcohol or dilution to clean the product. ◆... -
Page 21: Specifications
Appendix Specifications Items Features Input Frequency Range 174～230, 470 ~~ 862MHz (VHF&UHF) Bandwidth 6, 7 or 8 MHz High －75～－20dBm Frequency Input Signal Level Tuner RF Input Connector IEC169－2, Female Input impedance 75Ω COFDM （ Code Orthogonal Frequency Division Waveform Multiplexing）... -
Page 22: Troubleshooting
Appendix Troubleshooting Look through the following table about the possible troubles and you may find answers before request service. It may help you to resolve the problems with some easy operations according to this table. If something goes wrong with the receiver and can’t back to normal, please cut off the power for few minutes and restart the product. - Page 23 Address: Floor-809,West Tower, Coastal City, Hai De 3 road, Nanshan Area, Shenzhen City, Guangdong Province,China 地址： （中国）广东省深圳市南山区海德三道海岸城西座 809 室 Tel: +86 755 216 79069 Mob: +86 159 893 964 29 Email:inpax@inpax.com.cn Inpax-china@inpax.com.cn Web: www.inpax.com.cn...
