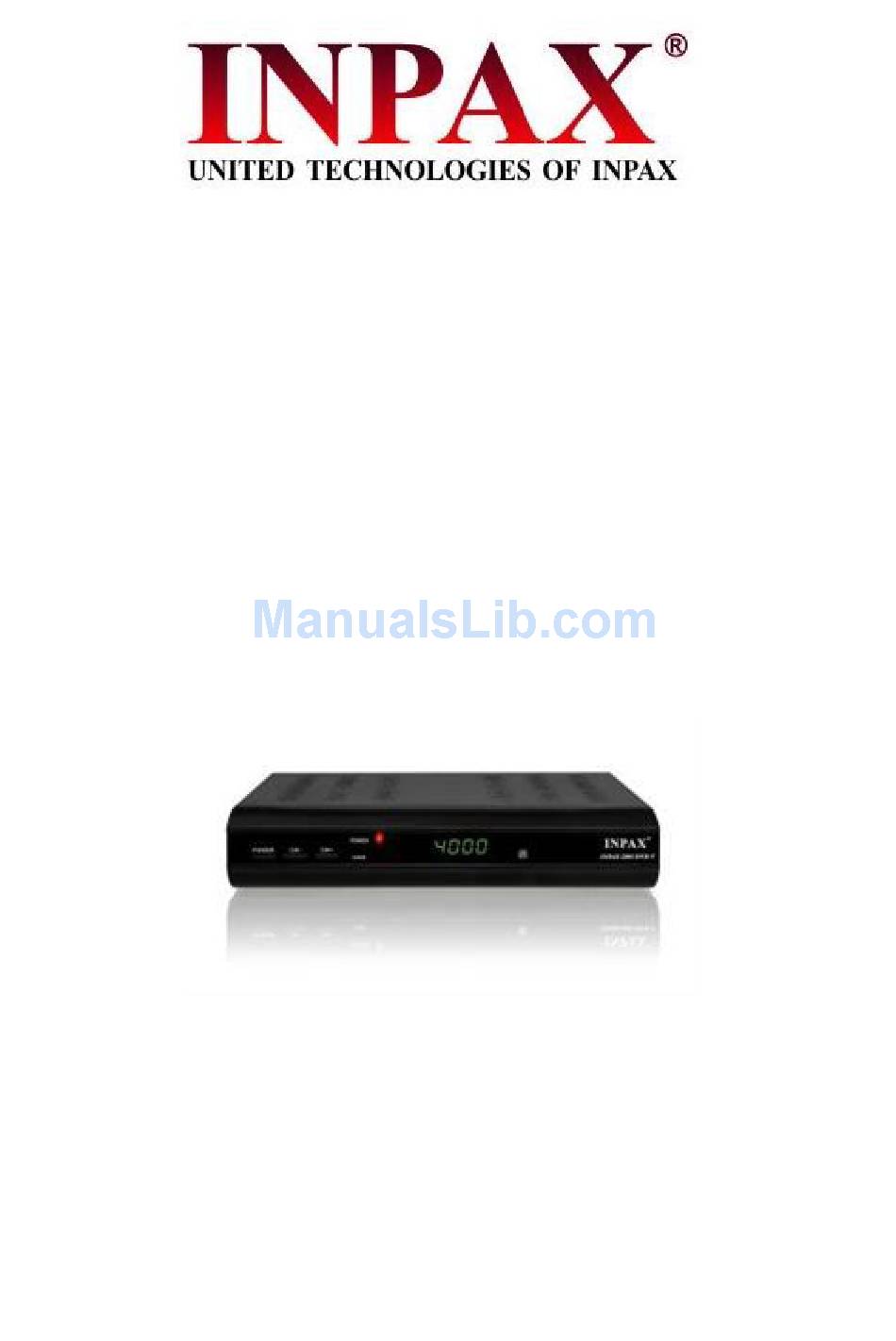

Page 1: User Manual
X-2005 DVB-T SD Mpeg-2 Receiver USER MANUAL Please read this user manual before using or connecting this product. And keep it handy for future reference. -
Page 2: Safety Precaution
SAFETY PRECAUTION CAUTION: The lightning flash with Warning: The exclamation point arrowhead symbol, within To reduce the risk of within an equilateral an equilateral triangle, is electric shock, don't open triangle is intended to intended to alert the user the cabinet. Refer alert the user to important to "dangerous voltage"... - Page 3 Attachments: Never add any attachments and/or equipment without the manufacturer consent; as such additions may result in the risk of fire, electric shock, or other personal injury. Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other similar surface, nor should it be placed over a radiator or heat register.
-
Page 4: Table Of Contents
Contents CONTENTS 1. Remote Control & Panel Description ............3 1.1 Front Panel Description ..................3 1.2 Rear Panel Description ..................3 1.3.1 Remote Control Description ................. 4 1.3.2Remote Control Description..............5 2. Hotkey ......................6 2.1 Power ........................6 2.2 TXT ........................6 2.3 Mute ........................ - Page 5 Contents 4.5 Delete All Channels .................... 17 5. Installation ....................18 5.1 Auto Scan ......................18 5.2 Channel Scan ..................... 18 5.3 Channel Setup ....................19 5.4 Aerial Adjustment ....................19 6. Setup ......................20 6.1 OSD Language ....................20 6.2 TV System ......................
-
Page 6: Remote Control & Panel Description
Remote Control & Panel Description 1. Remote Control & Panel Description 1.1 Front Panel Description POWER Is used to switch between the working mode and the standby mode. CH+/- To change channels or for navigating and changing values in menus. LED POWER Mode indicator (LED) –... -
Page 7: Remote Control Description
Remote Control & Panel Description 1.3.1 Remote Control... -
Page 8: 2Remote Control Description
Basic Operations 1.3.2 Remote Control Description 1.POWER: Is used to switch between the working mode or the standby mode. 2.PGUP: To move cursor up by page in TP list, satellite list or channel list. 3.PGDN: To move cursor down by page in TP list, satellite list or channel list. 4.OK: To select an item in the menu and confirm it or pop up the normal channel list when no menu. -
Page 9: Hotkey
Basic Operations 2. Hotkey 2.1 Power Press [Power] button to switch from TV mode to Standby mode In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. To switch off the STB complete press the main power button. 2.2 TXT Press [TXT] button in TV mode to open the teletext page. -
Page 10: Ch+/Ch
Basic Operations Press [▲/▼/◄/►] keys can moving highlight among each preview program, and only the highlighted preview program can play normally. When the highlight moves to the preview program that you want to play, you can press [OK] key to enter the full screen play. Press [Exit] key to go back to full screen. -
Page 11: Audio
Basic Operations 2.13 Audio In TV mode, press the [Audio] button to open the Audio Mode window. Select the item you want to adjust with [▲/▼] and change the value with [Volume Up/Down]. Press [Exit] key to exit. 2.14 Information In TV mode, press [INFO] button can open information screen, in the window shows the parameters of current channel. -
Page 12: Sub
Basic Operations Press number key [2] can display the current channel detail information. The window is like right: Press number key [2] in schedule and detail window can open the timer window directly. This operation can add the highlighted program to a timer quickly. -
Page 13: List
Basic Operations 2.18 List In TV mode, press the [List] button to stop the display. The sound of the channel will continue. Press [Pause] again to continue the display at the actual moment. 2.19 Pup/Pdw In full screen, press [Page Up / Page Down] key can switch group directly. 2.20 Fav In TV mode press the [Favorite] button to display the Favorite... -
Page 14: Welcome Page
Menu Operations 3. Welcome Page When first time power on, it will show welcome page like below. This Welcome page is only for easy operation when first use, user also can setting them in main menu/Tools/Welcome Page. Press [▲/▼] key to move highlight. Press [◄/►] key to modify setup. -
Page 15: Channel
Menu Operations 4. Channel Press [Menu] in the TV mode to enter the main menu. Press [▼/▲] to select the menu item among Channel, lnstallation, Setup and Tools. Press [OK] to enter the selected item. In the Channel menu: Press [▼/▲] to select the wanted menu item among TV Channel List, Radio Channel... -
Page 16: Favorite
Menu Operations 4.1.1 Favorite Press number key [1] can open the “Favorite” window like right. You can move highlight between 8 favorite groups by press [▲/▼] key and press [OK] key to make a favorite mark in the right side of the selected favorite group. -
Page 17: Sort
Menu Operations After input each character, the program list on the left will search the channel according your input, and list the matched channel. Press [Exit] key can close “Find” window and you can select channel from the channels list directly. 4.1.4 Sort Press number key [4] can open the “Sort”... - Page 18 Menu Operations 4.1.5.1 Delete In “Edit Channel” menu, press number key [1] can make a delete mark in the right side of the highlighted channel. After save and exit “Edit Channel” menu, the marked channel will be deleted. 4.1.5.2 Skip In “Edit Channel”...
-
Page 19: Radio Channel List
Menu Operations After modification, move highlight to “Save” item and press [OK] key can save the modified value and exit “Edit” mode. Otherwise, move highlight to [Exit] item and press [OK] key can exit “Edit” mode and won’t save any modification. -
Page 20: Delete All Favorites
Menu Operations 4.4 Delete All Favorites In “Delete All” item: There will display an dialogue for user to key in password. The default Password is “0000”. When you input the correct password, there will show up a warning message box to inquire you whether delete all or not. -
Page 21: Installation
Menu Operations 5. Installation When you enter to “Installation” menu, there will display the screen like right: In “Installation” menu; Press [▼/▲] key to select menu pages among Auto Scan, Channel Scan, Channel Setup and Aerial Adjustment. Press [▼/▲] key to select menu items among each items. -
Page 22: Channel Setup
Menu Operations When you complete your modification, move highlight to “Search” item and press [OK] key, then it will begin to scan. In the “Channel Scan” item, press [Exit] key to exit the scanning and save the current parameters. 5.3 Channel Setup When you enter to “Channel Setup”... -
Page 23: Setup
Menu Operations 6. Setup When you enter to “System Setup” menu, you will see the screen like right: In “System Setup” menu: Press [▼/▲] key to select menu pages among OSD Language, TV System, Start up Service, Region and Time, Timer Setting, OSD Setting and Parental Lock. -
Page 24: Tv System
Menu Operations Second Audio: If the channel has no correspond audio with “First Audio” but have corresponded audio with “Second Audio”, system will play the second audio language as default. If no audio language corresponds with the “Second Audio”, then the default language of current channel will be played automatically. -
Page 25: Start Up Service
Menu Operations 6.3 Start up Service When you enter to “Startup up Service” menu, you will see the screen like right: If the setting of “Boot on Channel” is “On”, it means the following two items can be work. If the setting is “Off”, it means the “Boot on Channel”... -
Page 26: Timer Setting
Menu Operations Time display function can control whether the time will be displayed on screen or not. Press [Exit] key to draw back from “Region and Time” menu. 6.5 Timer Setting When you enter to “Timer Setting” menu, you will see the window like right: Program Timer: Select “Program Timer”... - Page 27 Menu Operations Wakeup Time: use number keys to input your wakeup time. Once the time’s up, no matter what the system is in standby mode or in playing mode, the system will automatically switch to the channel you want and start to play.
-
Page 28: Osd Setting
Menu Operations Load Default Timer Setting When you enter “Load Default Timer Setting”, you will see the window like right: Press [OK] key on “Load Default Timer Setting”, it will show “Input Password” dialogue. After you input the correct password, there will... -
Page 29: Parental Lock
Menu Operations Load OSD Setting Default: If you are not satisfy with your setting, you can move highlight to this item and press [OK] key to reset parameters as default value. Press [Exit] key to exit the current menu. 6.7 Parental Lock You can set a password for anyone who wishes to operate in the “Installation”... -
Page 30: Tools
Menu Operations 7. Tools When you enter to “Tools” menu, you will see a screen like right: In “Tools” menu: Press [▼/▲] key to select menu pages among Information, Game, Load Factory Default, Software Upgrade and Welcome Page. Press [▼/▲] key to select menu items among each items. - Page 31 Menu Operations Tetris Moving highlight to “Setup” and press [◄/►] key to select the game level (speed). Moving highlight to “Start” and press [OK] key to start the game. Moving highlight to [Cancel] keys and press [OK] key to draw back from the game.
-
Page 32: Load Factory Default
Menu Operations Othello Moving highlight to “Setup” and press [◄/►] keys to select the game level (degree of difficulty). Moving highlight to “Start” and press [OK] key to start the game. Moving highlight to [Cancel] keys and press [OK] key to draw back from the game. -
Page 33: Software Upgrade
Menu Operations 7.4 Software Upgrade We offer the functions for user to connecting receiver (Master) to the other receiver (Slave) serial interface to upgrade software code and program list. Connect master receiver to slave receiver via serial interface. Enter “Software Upgrade” menu in master receiver and press [◄/►] keys to switch upgrade mode. -
Page 34: Technical Specification
Technical specification 8. Technical specification VIDEO Decoding MPEG-2 & MEPG-1 compatible Bit rate Max 20Mbps Output PAL/NTSC / Auto Aspect ratio 4:3PS, 4:3LB, 16:9, Auto Active pixel 720x480 @ 30fps; 720x576 @25fps Output connector RCA, TV SACRT AUDIO Decoding MPEG-2/MPEG-1 layer I & II Sampling rate 32 / 44,1 / 48 DEMODULATOR... - Page 35 Technical specification Address: Floor-809,West Tower, Coastal City, Hai De 3 road, Nanshan Area, Shenzhen City, Guangdong Province,China 地址： （中国）广东省深圳市南山区海德三道海岸城西座 809 室 Tel: +86 755 216 79069 Mob: +86 159 893 964 29 Email:inpax@inpax.com.cn Inpax-china@inpax.com.cn Web: www.inpax.com.cn...
