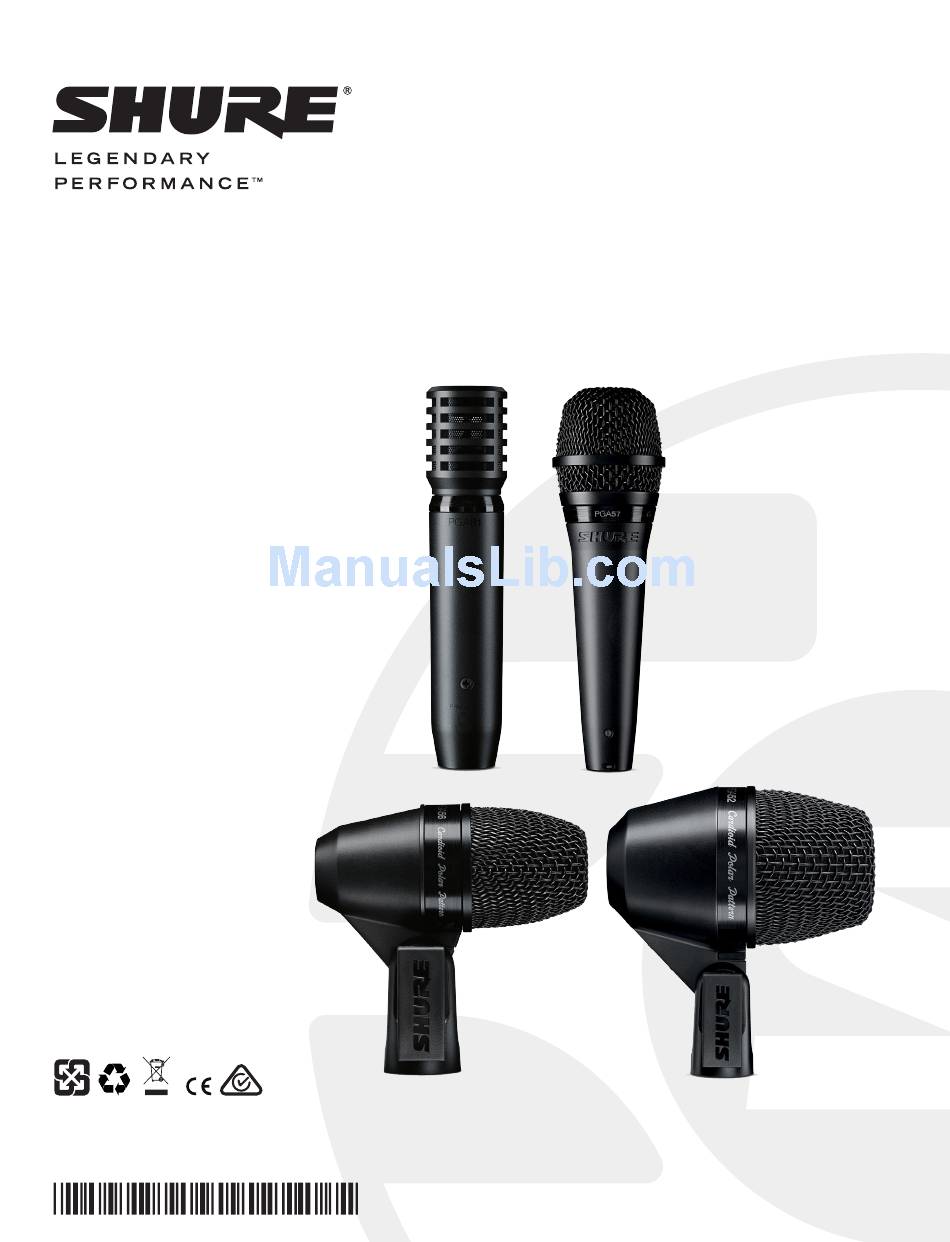

WIRED MICROPHONE
PGA DRUM MICROPHONE KIT

USER GUIDE

© 2015 Shure Incorporated
27A24483 (Rev. 2)
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGADRUMKIT4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shure PGADRUMKIT4

  • Page 1: User Guide

    WIRED MICROPHONE PGA DRUM MICROPHONE KIT USER GUIDE © 2015 Shure Incorporated 27A24483 (Rev. 2) Printed in U.S.A.
  • Page 2 PG Alta Microphones Congratulations on the purchase of a new Shure PG Alta series microphone. The PG Alta series delivers professional quality audio at an affordable price, with solutions for capturing nearly any source, including voice, acoustic instruments, drums, and amplified electric instruments.
  • Page 3: Proximity Effect

    Glyn Johns method, Recorderman, and microphone positions to achieve the preferred sound. Mid-Side. Spaced pair position - Additional information on recording drums and microphone techniques is available at shure.com ④ Proximity Effect X-Y position Directional microphones progressively boost bass frequencies as the microphone is placed in closer proximity to the source.
  • Page 4 Microphone Techniques for Stereo Using the Quick-Release Lever Recording PGA56 and PGA52 microphones feature a quick-release lever to easily adjust position. Stereo recording using two microphones adds realism by capturing sound similar to the way that humans hear. Panning 1. Pull the lever open (directing the signals left and right) adds width and directionality 2.
  • Page 5: Optional Accessories And Replacement Parts

    The CE Declaration of Conformity can be obtained from: www. shure.com/europe/compliance 10 cm (4 in.) 60 cm (2 ft.) Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: 49-7262-92 49 0 Fax: 49-7262-92 49 11 4 Email: info@shure.de...
  • Page 6 PGA56 PGA57 Type Type Dynamic (moving coil) Dynamic (moving coil) Frequency Response Frequency Response 50 to 15,000 Hz 50 to 15,000 Hz Polar Pattern Polar Pattern Cardioid Cardioid Output Impedance Output Impedance 200 Ω 150 Ω Sensitivity Sensitivity at 1 kHz, open circuit voltage at 1 kHz, open circuit voltage -57 dBV/Pa¹...
  • Page 7: Frequency Response

    PGA81 Type Electret Condenser Polar Pattern Cardioid Frequency Response 40 to 18,000 Hz Output Impedance at 1 kHz, open circuit voltage 600 Ω Sensitivity at 1 kHz, open circuit voltage -48.5 dBV/Pa[1] (3.8 mV) Maximum SPL 1 kHz at 1% THD, 1 kΩ load, typical 129.5 dB SPL Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with...
  • Page 8 108 mm (4.26 in.) 67.0 mm diameter (2.64 in.) 93 mm (3.66 in.) 44.5 mm diameter (1.75 in.) 131.1 mm (5.2 in.) 27.80 mm 24.6 mm (1.09 in.) (0.9 in.) 164 mm (6.46 in.) 48.5 mm diameter (1.91 in.)
