SERVICE MANUAL

The PDP panel made from FHP is used for this product.
Be sure to read this manual before servicing. To assure safety from fi re, electric shock, injury, harmful
radiation and materials, various measures are provided in this HITACHI display.
Be sure to read cautionary items described in the manual to maintain safety before servicing.
1. Since Panel Module and front Filter are made of glass, handling the broken Module and Filter shall be
taken care suffi ciently in order not to be injured.
2. Replacing work shall be started after the Panel Module and the AC/DC Power supply become suffi -
ciently cool.
3. Special care shall be taken to the display area in order not to damage its surface.
4. The Panel Module shall not be touched with bare hand to protect its surface from stains.
5. It is recommended to use clean soft gloves during the replacing work in order to protect not only the
display area of the Panel Module but also a serviceman himself.
6. The Chip Tube of Panel Module (located upper left of the back and surrounded by frame) and fl exible
cables connecting Panel glasses to drive circuit PWBs are very weak, so shall be taken care suffi -
ciently not to break. If you break Chip Tube, the Panel doesn't display anything forever.
1. Features ----------------------------------------------- 3
2. Specifi cations ----------------------------------------- 4
3. Service point ------------------------------------------ 5
4. Component names ---------------------------------- 6
5. New adoption technology -------------------------- 7
6. Adjustment ------------------------------------------ 11
7. Troubleshooting ------------------------------------ 37
8. Self-diagnosis function --------------------------- 53
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
Caution
Service Warning
Contents
9. Basic circuit diagram ------------------------------ 55
10.Printed wiring board diagram ------------------- 85
11.Block diagram -------------------------------------- 93
12.Connection diagram ------------------------------ 94
13.Wiring diagram ------------------------------------- 96
14.Disassembly diagram ---------------------------- 98
15.

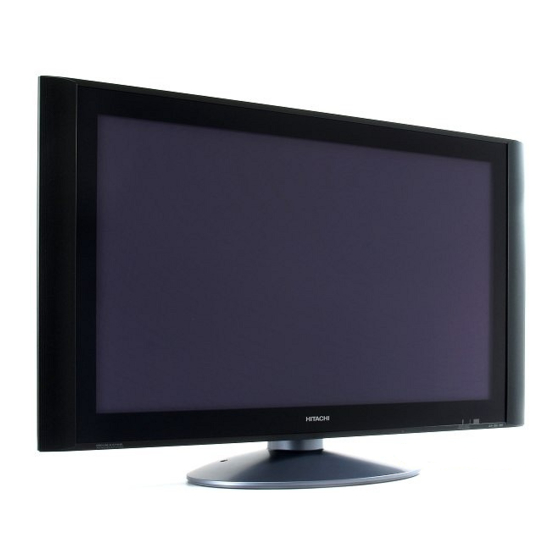

Plasma Display

May 2006
No.031E
YK
42PD8900TA(PW3)
42PD8900TA is a model based
on 42PD8800TA. The differ-
ence was to have changed PDP
module from A3 into A4.
----------------------------101

Advertisement

   Also See for Hitachi 42PD8900TA

   Related Manuals for Hitachi 42PD8900TA

   Summary of Contents for Hitachi 42PD8900TA

  • Page 1: Table Of Contents

    Be sure to read this manual before servicing. To assure safety from fi re, electric shock, injury, harmful radiation and materials, various measures are provided in this HITACHI display. Be sure to read cautionary items described in the manual to maintain safety before servicing.

  • Page 2

    42PD8900TA CAUTION FOR SAFETY Please read this page before repair the monitor. This page explains to following items for keep the safety of set and prevent to accident during repair work. We explain by symbol at happen the damage or injury when took wrong repair.

  • Page 3: Features

    42PD8900TA PRECAUTIONS How to clean the plasma screen panel of the monitor Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects.

  • Page 4: Specifi Cations

    42PD8900TA 2. Specifications Approx. 42 inches Display dimensions (922(H) x 522(V)mm, diagonal 1059mm) Panel Resolution 1024(H) x 1080(V) pixels including Opional Stand : 1134(W) x 728(H) x 350(D)mm Net dimensions excluding Optional Stand : 1134(W) x 648(H) x 108(D)mm including Opional Stand : 43.4kg Net weight excluding Opional Stand : 37.7kg...

  • Page 5: Service Point

    42PD8900TA 3. Service points Lead free solder This product uses lead free solder (unleaded) to help preserve the environment. Please read these instructions before attempting any soldering work. Caution: Always wear safety glasses to prevent fumes or molten solder from getting into the eyes. Lead free solder can splatter at high temperatures (600˚C).

  • Page 6: Component Names

    42PD8900TA 4. Component names [Main unit] Control panel Remote Control Receiver SD Memory Card Slot SD MEMO RY CARD Indicating Lamp Sub Power button • The main power switch is located on the lower surface. PUSH-EJECT Channel UP/ button Main power switch...

  • Page 7: New Adoption Technology

    42PD8900TA 5. New adoption technology [System control micom I001(M30627)] Pin function table PIN NAME Panel: PDP FUNCTION VREF (+5.0V) +5.0V AUDIO_SW1 Audio SW1 OSD_DATA OSD DATA OSD_CLK OSD CLK HP_VOL Head Phone Volume FUNC_1 EXT CONT 1 EXT CONT 1 Function1 EXTernal Control 1...

  • Page 8

    42PD8900TA PIN NAME Panel: PDP FUNCTION I2C(To the Side of Main Board) SCL1 FE/MSP3455or MSP3415G/SAA5361 I2C(To the Side of Main Board) SDA1 FE/MSP3455or MSP3415G/SAA5361 HDMI-RESET HDMI-Reset HDMI-HPD_RESET Hot Plug Detect Reset SEL_0 FC Clock/Others SW SEL_1 HDMI/DTT SW TUNER.DET_1 TUNER Detection...

  • Page 9

    42PD8900TA PIN NAME Panel: PDP FUNCTION SCL3(EEPROM) C(EEPROM) SDA3(EEPROM) C(EEPROM) EPGGO EPGGO EXT_RESET EXTERNAL RESET OSD_CS OSD CS FC_ENABLE FC MicroComputer 3 Lines Enable V_P_DET_1 V_DET_1(Power Save Return) V_P_DET_2 V_DET_2(Power Save Return) Power Delay Control IRQ_DTT DTT IRQ DTT_POWER DTT POWER...

  • Page 10

    42PD8900TA Block diagram...

  • Page 11: Adjustment

    42PD8900TA 6. Adjustment ● How to get to Adjustment mode Using the R-side control buttons with the set turned off (standby) can activate it. Press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the same time, and hold for more than 5 seconds.

  • Page 12

    42PD8900TA Service adjustment items by I C-bus control (MAIN Part) Adj. Function Max. Init. Device Adj. Item Mode Value Value 0 SUB_CONTRAST (AV1) Sub Composite mode TB1274 1 SUB_CONTRAST (AV2) Sub Composite mode TB1274 2 SUB_CONTRAST (AV3) Sub Composite mode...

  • Page 13

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 56 Vertical Enhancer Gain for B-Y/B, R-Y/R [CVEG0] NTSC/PAL/480i/576i/Multi [CVEG1] 480p/576p/1080i-50/60/720p 58 Vertical DSB Gain for B-Y/B, R-Y/R [CVDSBG0] NTSC/PAL/480i/576i/Multi [CVDSBG1] 480p/576p/1080i-50/60/720p 60 Vertical DSB coring for B-Y/B, R-Y/R...

  • Page 14

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 111 Sharpness f0(RF) TB1274 112 Sharpness f0(VIDEO) TB1274 113 Sharpness f0(VIDEO) NTSC3.58 TB1274 114 Sharpness f0(VIDEO) SECAM,B/W TB1274 115 Sharpness f0(VIDEO) NTSC4.43 TB1274 116 Sharpness f0(VIDEO) N-PAL TB1274 117 Sharpness f0(VIDEO)

  • Page 15

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 167 S_ID TB1274 168 S_GP TB1274 169 S_V_ID TB1274 170 BELL/HPF TB1274 171 HS Phase TB1274 172 Bandwidth 1 NTSC/PAL/480i/576i TA1391FG 173 Bandwidth 1 480p/576p TA1391FG 174 Bandwidth 1...

  • Page 16

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 222 HD POSITION 1 1080i_50 TA1391FG 223 HD POSITION 1 1080i_60/720p TA1391FG 224 HD POSITION 2 480i/576i TA1391FG 225 HD POSITION 2 480p/576p TA1391FG 226 HD POSITION 2 1080i_50...

  • Page 17

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 278 Vsk detect INIT. First 2Bits(Vsk_INIT) 279 Vsk detect INIT. Last 8Bits(Vsk_INIT) 280 Vak DETect First 2Bits(Vak_DET) 281 Vak DETect Last 8Bits(Vak_DET) 282 DeLTa Vrs value(DLT_Vrs) 283 DeLTa Vra value(DLT_Vra) 284 Vak detect INIT.

  • Page 18

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 331 HDMI EDID WRITE ENABLE M30627 HDMI Ccolorimetry Judgement 0:Signal Format Priority/1:AVI HDMI HDMI InfoFrame Priority 333 BPMA : Back Porch Mode,Field2 Position Adjustment HDMI 334 TMDS Equalization Control (0:0xC3, 1:0x0F, 2:0x1E, •••, 16:0xF0)

  • Page 19

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 385 Noise Level Detection Sensitivity Setting1 NDUWSC[1:0] uPD64015 386 Noise Level Detection Sensitivity Setting2 NDUXSC[1:0] uPD64015 387 3 Dimentional Y/C Separate Operation Mode Select NSDS[1:0] uPD64015 388 Line Comb Filter Operation Mode YCSV[1:0]...

  • Page 20

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value YNR Motion Detection between Frames Coring Setting uPD64015 YMVDCORE[3:0] YNR Motion Detection between Frames Gain Setting uPD64015 YNRMVDG[3:0] 441 YNR Motion Detection between Frames Setting YNRMDOFF uPD64015 442 CNR Process Stop CNRSTOP...

  • Page 21

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value Except NTSC uPD64015 480i/576i uPD64015 RF(M) *In substitution for 495 CTI Correction Amount Adjustment CTIGAIN[3:0] uPD64015 Group Delay of Correction RF(Except M) uPD64015 NTSC uPD64015 Except NTSC uPD64015 480i/576i...

  • Page 22

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value RF(I) uPD64015 RF(LL') uPD64015 TEXT uPD64015 NTSC uPD64015 Except NTSC uPD64015 480i/576i uPD64015 554 Tint Adjustment HUE[7:0] RF(M) uPD64015 RF(Except M) uPD64015 NTSC(Ex.S Input)→S:#695 uPD64015 Except NTSC(Ex.S Input)→ uPD64015...

  • Page 23

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 602 Line Lock Clock Free Run Settng at No Signal Mode NSGFRUN uPD64015 603 Vertical Sync Signal Correction VDCOR uPD64015 604 Line Lock PLL Gain Setting HPLLG[4:0] uPD64015 605 Line Lock PLL Phase Detection Condition Setting HPLLSIG...

  • Page 24

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value uPD64015 658 Trap Filter Setting at Abnormal Condition TRENNST uPD64015 uPD64015 660 Y/C timing for M(4.5) system RF-Main uPD64015 661 Y/C timing for (5.5MHz PAL/NTSC4.43) system RF Main uPD64015 662 Y/C timing for (5.5MHz SECAM) system...

  • Page 25

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 708 PC Power Save function (0:Impossible, 1:Possible) M30627 Adjustment Value is available Movement Amount of Image Retention Reduction Operation only during HD single picture 0:±2pixel/1:±4pixel/2:±6pixel/3:±10pixel mode. 710 480i,576i switch 0:uPD64015, 1:TA1391(Though)

  • Page 26

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 760 Upper Limits Value for Sync Detect of 2ms interval For Free Running at AV mode M30627 761 Upper Limits Value for Sync Detect of 2ms interval For Power Save at AV mode M30627 COLOR SYSTEM CONTROL-MODE(0:BW, 2:3.58NTSC,...

  • Page 27

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 0:always invalid ,1:100%,2:80%,3:60%, 810 Set upper limit value(%) of stable picture of DTT M30627 4:40%,5:20%,6:0% (always effective) 811 T/Text Debug mode SDA6000 812 Eye-Height-Optimisation BIT_7..BIT_0[7:0] 0:Disabled, 1:Enabled SDA6000 813 Local time offset...

  • Page 28

    42PD8900TA Adj. Function Max. Init. Device Adj. Item Mode Value Value 862 Reserved for EURO 863 Reserved for EURO 864 Reserved for EURO 865 Reserved for EURO 866 Reserved for EURO 867 Reserved for EURO 868 Reserved for EURO 869 Reserved for EURO...

  • Page 29

    42PD8900TA Service adjustment items by I C-bus control (SUB adjust menu) (*The change to a sub menu. press “ok” key after no.899 with a main menu) Adj. Function Init. Max. Device ADJ. Items Mode Value 0 R DRIVE1 [RF/VIDEO/HDMI] COOL...

  • Page 30

    42PD8900TA Adj. Function Init. Max. Device ADJ. Items Mode Value 67 Center of Sharpness (HV Enhancer Gain for Y) 480i/576i 68 Center of Sharpness (HV Enhancer Gain for Y) 480p/576p 69 Center of Sharpness (HV Enhancer Gain for Y) 720p...

  • Page 31

    42PD8900TA Adj. Function Init. Max. Device ADJ. Items Mode Value 134 (Sub Side of HD-NTSC, HD-PAL) [MCNRG1] HD-HD [MCNRG2] NT-* /PAL-* [MCNRG3] HD-* 137 Sub CFRNR Input Gain [SCNRG0] 2 Picture [SCNRG1] 4 Picture/12 Picture 139 Vertical Enhancer Gain for Y/G...

  • Page 32: Factory Reset

    42PD8900TA Adj. Function Init. Max. Device ADJ. Items Mode Value 201 Menu Init. Color (-31[0] ~ +31[62]) For Cinema 202 Menu Init. Sharpness (-15[0] ~ +15[30]) For Dynamic 203 Menu Init. Sharpness (-15[0] ~ +15[30]) For Natural 204 Menu Init. Sharpness (-15[0] ~ +15[30]) For Cinema 205 Menu Init.

  • Page 33

    42PD8900TA Item Power Unit Vs, Va Adjustment Preparation Procedure (1) Turn on the set and perform (1) Turn Vs ADJ to adjust Vs voltage pre-heat run more than 1 min to be within ±0.1V of the value on burn-in screen.

  • Page 34

    42PD8900TA RGB Amplitude Adjustment (PC D-Sub input) Item Preparation Procedure Receive PC signal (VGA [60Hz]), and indicate Input RGB amplitude adjustment signal of VGA Service Adjustment Menu.(Main) (60Hz) into RGB2 [D-sub] terminal. Select No.897 of Service Adjustment Menu. Press [OK] key more than 2 seconds to start the Black pattern: Set pedestal level.

  • Page 35

    42PD8900TA Video Color Temperature Adjustment (Cool) Item Adjustment Preparations Adjustment Procedures Set the signal generator output as All White. Perform the following adjustment with the remote control Component signal (480i) Set the CRT color analyzer (CA100) at the center Video level : 0.700Vp-p of the panel.

  • Page 36

    42PD8900TA Video Color Temperature Adjustment (Warm) Item Preparation Procedure (1) Set signal generator output as Perform the following adjustment with the remote All White (Window ratio: 100%). control. (2) Component signal (480i) Set the CRT Color Analyzer (CA100) at the center Video level : 0.700Vp-p...

  • Page 37: Troubleshooting

    42PD8900TA 7. Troubleshooting How to get to Burn-in mode This mode displays the test patterns of some single color raster in turn. These signals are from built-in gener- ator of panel. So it can be presumed that maybe the panel has some trouble when the screen of Burn-in mode is abnormal.

  • Page 38

    42PD8900TA Power unit NO POWER NO Vs,Va,Vcc,STB impedance check impedance FUSE,R004,R005 check D001 D001 impedance check Q003/Q004 Q003/Q004 check voltage over 130V R004,R005 etc D011(k)-Q101 Heat Sink impedance check Q101 under 130V Q101,IC101 See NO PICTURE Q101, IC101 IC101, D150 R004,R005 etc &...

  • Page 39

    42PD8900TA Power Power cannot be turned on (LED does not light) the input voltage applied to Power supply unit ? (CN61 (1),(3)) AC inlet Main switch AC Fuse Filter PWB (SW PWB) F902 T6.3AH 250V Are the voltages applied to...

  • Page 40

    42PD8900TA Power Power cannot be turned on (Continued) * Check stand-by Does the red-LED light? * Check STB5V for FC PWB the voltage applied to PJF1 (3)pin ? (Refer to Table2) Sub Power PWB * Check EPGgo signal the voltage...

  • Page 41

    42PD8900TA [PW3 Sound Circuit] No sound of TV (Main) No sound of TV (Sub) Are waveforms at Are waveforms at Check Check pin 2,4,5,6 of PAF1? pin 2,4,5,6 of PAF1? SOUND PWB SOUND PWB Are waveforms at Are waveforms at...

  • Page 42

    42PD8900TA [PW3 Sound Circuit] No sound of INPUT(HDMI) No sound of INPUT(RGB) AUDIO Stereo mini AUDIO Stereo mini (JF801) (JF800) Are waveforms at Check pin 2,4,5,6 of PAF1? SOUND PWB Check Are waveforms at FC PWB pin 45,47 of PFM1(L,R)?

  • Page 43

    42PD8900TA [PW3 Sound Circuit] No sound of HDMI1 No sound of HDMI2 JF400 JF401 Are waveforms at Check pin 2,4,5,6 of PAF1? SOUND PWB Are waveforms at Check pin 45,47 of PFM1(L,R)? FC PWB Are waveforms at Are waveforms at...

  • Page 44

    42PD8900TA [PW3 Sound Circuit] No sound of Bridge Media Unit Are waveforms at Check pin 2,4,5,6 of PAF1? SOUND PWB Are waveforms at Check pin 45,47 of PFM1(L,R)? FC PWB Are waveforms at pin 45,47 of PMF1(L,R)? Check around PFM1...

  • Page 45

    42PD8900TA [PW3 Sound Circuit] Check SOUND PWB Are waveforms at pin 1,2,4,5 of PAS1and pin 1,2,5,6 of PAS2? Check around SPEAKER UNIT Are waveforms at pin 34,35,38,39,46,47, 50,51 of I401? Check around PAS1,PAS2 Is voltage at pin 10,20 of I401 (RESET-N="H")?

  • Page 46

    42PD8900TA [PW3 Sound Circuit] Check FC PWB Are waveforms at pin 2,4,5,6,10,11 of PFA1? Check around PAF1 Are waveforms at pin 31,32,33 of I600? Check around PFA1 Are waveforms at pin 29,38,40 of I600? Check I600 Are waveforms at pin 10,11,12 of IC803?

  • Page 47

    42PD8900TA Main Picture [Main PWB Circuit] No picture, no color or dark Yes(Sub picture) Sub picture? Trouble of Sub picture (Signal picture or Main picture ) Are waveform at TP605(Y), TP606(Cb), and TP607(Cr)? Check FC PWB Are waveforms at 64pin(Y), 62pin(Cb), and...

  • Page 48

    42PD8900TA Sub Picture [Main PWB Circuit] Trouble of Sub picture Are waveform at TP608(Y), TP609(Cb), and TP610(Cr)? Check FC PWB Are waveforms at 42pin(Y), 44pin(Cb), and 46pin(Cr) of I601? Check Q604, Q605, Q606 (Component Video except 480i and 576i) Component Input?

  • Page 49

    42PD8900TA Main Syincronization [Main PWB Circuit] No Sync or Invalid Sync Yes(Sub picture) Sub picture? Trouble of Sub picture (Signal picture or Main picture ) Are waveform at TP601(H) and TP602(V)? Check FC PWB Are waveforms at 61pin(H) and 58pin(V) of...

  • Page 50

    42PD8900TA Sub Syncronization [Main PWB Circuit] Trouble of Sub picture Are waveform at TP603(H) and TP604(V)? Check FC PWB Are waveforms at 45pin(H) and 48pin(V) of I601? Check I602 (Component Video) Component Input? Check I601 and Input terminal (RF/Composit Video/S-Video)

  • Page 51

    42PD8900TA Teletext [Main PWB Circuit] No Teletext (Sub picture) Sub picture? waveform at TP608(Y), (TV+Text) TP609(Cb), and TP610(Cr)? Check FC PWB (Signal picture ) waveform at TP605(Y), waveforms at TP606(Cb), and 42pin(Y), 44pin(Cb), and TP607(Cr)? 46pin(Cr) of I601? Check FC PWB...

  • Page 52: Dot Clock

    42PD8900TA Photo Input Unit No picture Check to FC Unit at P301 connector 10pin, 12pin, 14pin Check to FC PWB Photo Input Unit or cable (Photo Input Unit FC Unit check to cable insertion) HDMI Picture [FC PWB Circuit] No picture...

  • Page 53: Self-diagnosis Function

    42PD8900TA 8. Self-Diagnosis Function This chassis has 2 modes of self-diagnosis function. (1) PDP panel check mode: It indicates the one latest record of the PDP panel failure with blinking of the power indication light (LED). (2) Signal circuit check mode: It indicates the check result on some points of the signal circuit and the history of them with On-Screen Display (OSD).

  • Page 54

    42PD8900TA Signal circuit self-diagnosis function This function is for the failure of the signal circuit, for example the phenomenon as below: "Sometimes power turns off abnormally." "Sometimes picture disappears abnormally." To enter to this Self-Diagnosis mode, follow the next steps: Preparation: 1) The Power Cord should be connected to AC line and the Main Power switch should be turned on.

  • Page 55: Basic Circuit Diagram

    42PD8900TA 9. Basic circuit diagram Waveform I201(MAIN.V)(44) PIN I501 YIN(S-VIDEO)(44) PIN I501 YIN(3D)(5) PIN I501 CIN(S-VIDEO)(43) PIN I201(SUB.V)(53) PIN 2Vp-p 1.0Vp-p 0.3Vp-p TP65(MY) TP66(MPB) I501 CIN(3D)(7) PIN TP68(SY) TP69(SPB) 1. 2Vp-p 1.4Vp-p 0.3Vp-p TP67(MPR) TP61(MH) TP62(MV) TP6A(SPR) TP63(SH) TP64(SV) 5.0 Vp-p 1.

  • Page 56

    42PD8900TA Basic circuit diagram list PWB assembly Power Unit 1 ..........57 PWB assembly Power Unit 2 ..........58 PWB assembly Power Unit 3 ..........59 PWB assembly Power Unit 4 ..........60 PWB assembly Power Unit 5 ..........61 PWB assembly MAIN 1 ............

  • Page 57

    42PD8900TA PWB assembly Power Unit 1 (PW3)

  • Page 58

    42PD8900TA PWB assembly Power Unit 2 (PW3)

  • Page 59

    42PD8900TA PWB assembly Power Unit 3 (PW3)

  • Page 60

    42PD8900TA PWB assembly Power Unit 4 (PW3)

  • Page 61

    42PD8900TA PWB assembly Power Unit 5 (PW3)

  • Page 62

    42PD8900TA L211 L222 Power save STB+5V 2518 A+9V 2518 D201 R277 SDS511 J201 AV1-Y/CV C225 T-389906-02 C226 GND201 AV1-CB 1.0/10 AV1_COMP_DET AV1-CR 2125 R279 10/16 1.0K X201 NFL21SP107X1C3 MVK/SKV AV2-Y/CV AV1-Y/CV 2125 Y/CV AV2-CB I204 Component SW X202 V_P_DET1 COMP_SW...

  • Page 63

    42PD8900TA D+3.3V A+5V I505 C5A1 47/16 SI-3033LSA TP510 MVK/SKV IN-1 Vout-8 Vout-7 D+3.3V M_T15k-HD C5A2 M_T15k-VD 0.1/10 IN-3 GND-6 1005 M15k-VD COLOR_SYS M15k-HD GND-5 COLOR_SYS SHEET-4 R5A1 1.0K EXT_RESET EXT_RESET D+1.5V D+3.3V C526 GND501 C528 S-Yvi C531 C529 0.1/10 L501 C530 0.1/10...

  • Page 64

    42PD8900TA A+9V C645 I603 SI-3012KS 22/16 MVK/SKV GND-8 +8.2V C646 GND-7 REG. 0.1/16 Vout GND-6 GND-5 R642 24K-1% GND601 L607 [A-Side] SCL0 SCL0 SDA0 SHEET-1,2,4 SDA0 2518 AV1-Y/CV AV1-Y/CV R643 AV1-CB AV1-CB AV1-CR AV1-CR R652 SHEET-1 Main-Y AV2-Y/CV AV2-Y/CV R644...

  • Page 65

    42PD8900TA SWIVEL X301 ACH3218 I701 PMSP EH-09V-D C306 FIN/IN1 RIN/IN2 MODE 4.7/16-F I301 +30V 3216 BA6287F X302 ACH3218 OUT1 A+10V OUT2 Vref GND301 R311 100 SW_R_OUT A+6V C307 R302 R303 R312 C304 100/16 R310 100 0.01 MVK/SKV SW_L_OUT STB+5V Q303...

  • Page 66

    42PD8900TA MTV-L MTV-R MTV-CV SHEET-1 STV-CV STV-AUD EXT_RESET SHEET-4 MTV-AFC SHEET-4 STV-AFC RT70 M_T15k-VD SHEET-2.3 RT71 M_T15k-HD SDA1 SCL1 SHEET-2.4 RT88 LT02 R1A0 RT90 S15k-VD A+5V 3225 SHEET-2.3 S15k-HD LT03 A+9V 3225 I101 SI-3050KM GND103 A2/NICAM/ IT04 OUT PUT US/JPN/KOREA...

  • Page 67

    42PD8900TA PWB assembly LED PDP (PW3)

  • Page 68

    42PD8900TA PWB assembly SWIEVEL (PW3)

  • Page 69

    42PD8900TA PWB assembly FILTER (PW3)

  • Page 70

    42PD8900TA PWB assembly Sub POWER (PW3)

  • Page 71

    42PD8900TA PWB assembly TERMINAL (PW3)

  • Page 72

    42PD8900TA PWB assembly CONTROL (PW3)

  • Page 73

    42PD8900TA PWB assembly SENSOR (PW3)

  • Page 74

    42PD8900TA PWB assembly SOUND (PW3)

  • Page 75

    42PD8900TA PWB assembly SW (PW3)

  • Page 76

    42PD8900TA PWB assembly FC 1 (PW3)

  • Page 77

    42PD8900TA PWB assembly FC 2 (PW3)

  • Page 78

    42PD8900TA PWB assembly FC 3 (PW3)

  • Page 79

    42PD8900TA PWB assembly FC 4 (PW3)

  • Page 80

    42PD8900TA PWB assembly FC 5 (PW3)

  • Page 81

    42PD8900TA PWB assembly FC 6 (PW3)

  • Page 82

    42PD8900TA PWB assembly FC 7 (PW3)

  • Page 83

    42PD8900TA PWB assembly FC 8 (PW3)

  • Page 84

    42PD8900TA PWB assembly FC 9 (PW3)

  • Page 85: Printed Wiring Board Diagram

    42PD8900TA 10. Printed wiring board diagram MAIN board ( side-A ) LED PDP board ( side-A ) LED LCD board ( side-A ) SWIVEL board ( side-A ) MAIN board LED PDP board SWIVEL board LED LCD board...

  • Page 86

    42PD8900TA MAIN board ( side-B ) LED PDP board ( side-B ) LED LCD board ( side-B ) SWIVEL board ( side-B ) MAIN board SWIVEL board LED PDP board LED LCD board...

  • Page 87

    42PD8900TA MAIN / LED PDP / LED LCD / SWIVEL board Mainly chip parts reference table ( side-B ) ( side-A ) CIR.No. Position CIR.No. Position CIR.No. Position CIR.No. Position CIR.No. Position CIR.No. Position CIR.No. Position D101 L102 PLP1 TP101...

  • Page 88

    42PD8900TA FC board ( side-A ) Mainly chip parts reference table CIR.No. Position CIR.No. Position D100 L404 D101 L405 D200A L406 D400 L407 D401 L410 D402 L500 D404 L501 D407 L502 D408 L503 D409 L504 D500 L600 D501 L601 D502...

  • Page 89

    42PD8900TA FC board ( side-B ) Mainly chip parts reference table CIR.No. Position CIR.No. Position D102 L505 D103 L700 D201A L801 D202A Q100 D203A Q101 D403 Q102 D405 Q103 D406 Q104 D900 Q105 IC102 Q106 IC103 Q201D IC104 Q202A IC105...

  • Page 90

    42PD8900TA AUDIO / CONTROL / SW board ( side-A ) Mainly chip parts reference table AUDIO board AUDIO board CONTROL board Cir.No. Position Cir.No. Position Cir.No. Position D401 L401 ICC1 D402 L402 ICC2 D403 L407 ICC3 D404 L408 JCC1 D405...

  • Page 91

    42PD8900TA AUDIO / CONTROL / SW board ( side-B ) AUDIO board SW board CONTROL board Mainly chip parts reference table Cir.No. Position TPC_CLK TPC_CMD TPC_CS TPC_DAT0 TPC_DET...

  • Page 92

    42PD8900TA FILTER board SUB POWER board TERM board...

  • Page 93: Block Diagram

    42PD8900TA 11. Block diagram...

  • Page 94: Connection Diagram

    42PD8900TA 12. Connection diagram Connection diagram 1/2 to connection diagram 2/2...

  • Page 95

    42PD8900TA Connection diagram 2/2 to connection diagram 1/2...

  • Page 96: Wiring Diagram

    42PD8900TA 13. Wiring diagram [ 42PD8900TA (1/2) ] ECN64 P#W002 PAF1 AUDIO PAS1 #W002 PAS2 P701 P301 P501 Ferrite core Power Unit PWB with lead PAJ1 NVS3 NVS7 E003 Sub Power PJA1 Ferrite core to PANEL EPU1 with lead LOGIC CN6...

  • Page 97

    42PD8900TA [ 42PD8900TA (2/2) ] E901 AC INLET to B.M Fasten connctor with lock : Connect it completely to be locked. to power PWB E902 Disconnect it pushing the button to release the lock. to PJB1 to CN63 AC INLET...

  • Page 98: Disassembly Diagram

    42PD8900TA 14. Disassembly diagram code Material [ 42PD8900TA ] Acrylonitrile Butadine Styrene Steel PolyStyrene #155 PC+ABS PolyCarbonate + Acrylonitrile Butadine Styrene Aluminium #160 #110A (AL) #722 #712 #722 #726 (PC+ABS) #720 #114 #150 #130A (ABS) #0800 #142 #148 #152 #120A...

  • Page 99

    42PD8900TA Panel Module 42PD8900TA Attachment for packing Apply it before packing this panel module. Y-SUS PWB Assy Manufactured at FHP factory X-SUS PWB Assy Manufactured at FHP factory Panel A BUS-L Logic PWB Assy Panel A BUS-R Joint Holder x 8...

  • Page 100

    42PD8900TA MEMO...

  • Page 101: Replacement Parts List

    42PD8900TA 15. Replacement Parts list PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing.

  • Page 102

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don’t degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 103

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 104

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 105

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 106

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 107

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 108

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 109

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL...

  • Page 110

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL SYMBOL PART NO.

  • Page 111

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL SYMBOL PART NO.

  • Page 112

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL SYMBOL PART NO.

  • Page 113

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL SYMBOL PART NO.

  • Page 114

    42PD8900TA PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual. Don't degrade the safety of the receiver through improper servicing. SYMBOL SYMBOL PART NO.

  • Page 115

    42PD8900TA MEMO...

  • Page 116

    42PD8900TA YK No.031E QR66413 Printed in Japan (JE)

Comments to this Manuals

Symbols: 0
Latest comments:
