Light Weight

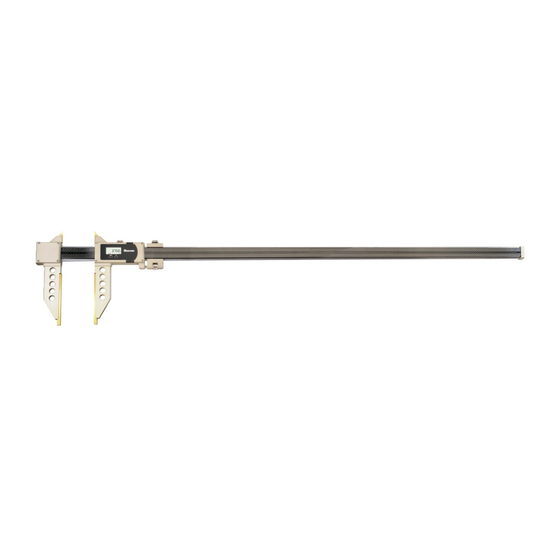

Carbon Fiber Calipers
No. 5001B Series
User's Guide
INTRODUCTION
This Starrett product is designed for ease
of use and provides the ability to output
measurements to a variety of peripherals,
either through a traditional wire or by
connecting to a Starrett DataSure
®
Wireless Data Collection System End Node.
Changing Battery
If a "B" is displayed on the left side of the
display, the battery needs to be changed.
3
Remove cartridge and replace with Lithium
3V CR2032 battery. Changing the battery
will automatically reset the indicator to
factory defaults.
1
To remove the catridge, slide the battery
2
carrier (2) in the direction of the arrow
in Fig. 1. Remove the battery from the
carrier and replace it with a fresh CR2032
battery. Then, slide the carrier back into
Fig. 1
the housing.
OPERATING INSTRUCTIONS
Button Functions
Mode and SET button operations are:
Press and Release and Press and Hold
ON / OFF
To turn gage ON:
Press and Release ON/OFF
To turn gage OFF:
Press and Hold ON/OFF
(Note: When the tool is turned on it will
remain in whichever mode it was in when
it was turned off.)
1
Advertisement
Table of Contents
Related Manuals for Starrett 5001B Series
Summary of Contents for Starrett 5001B Series

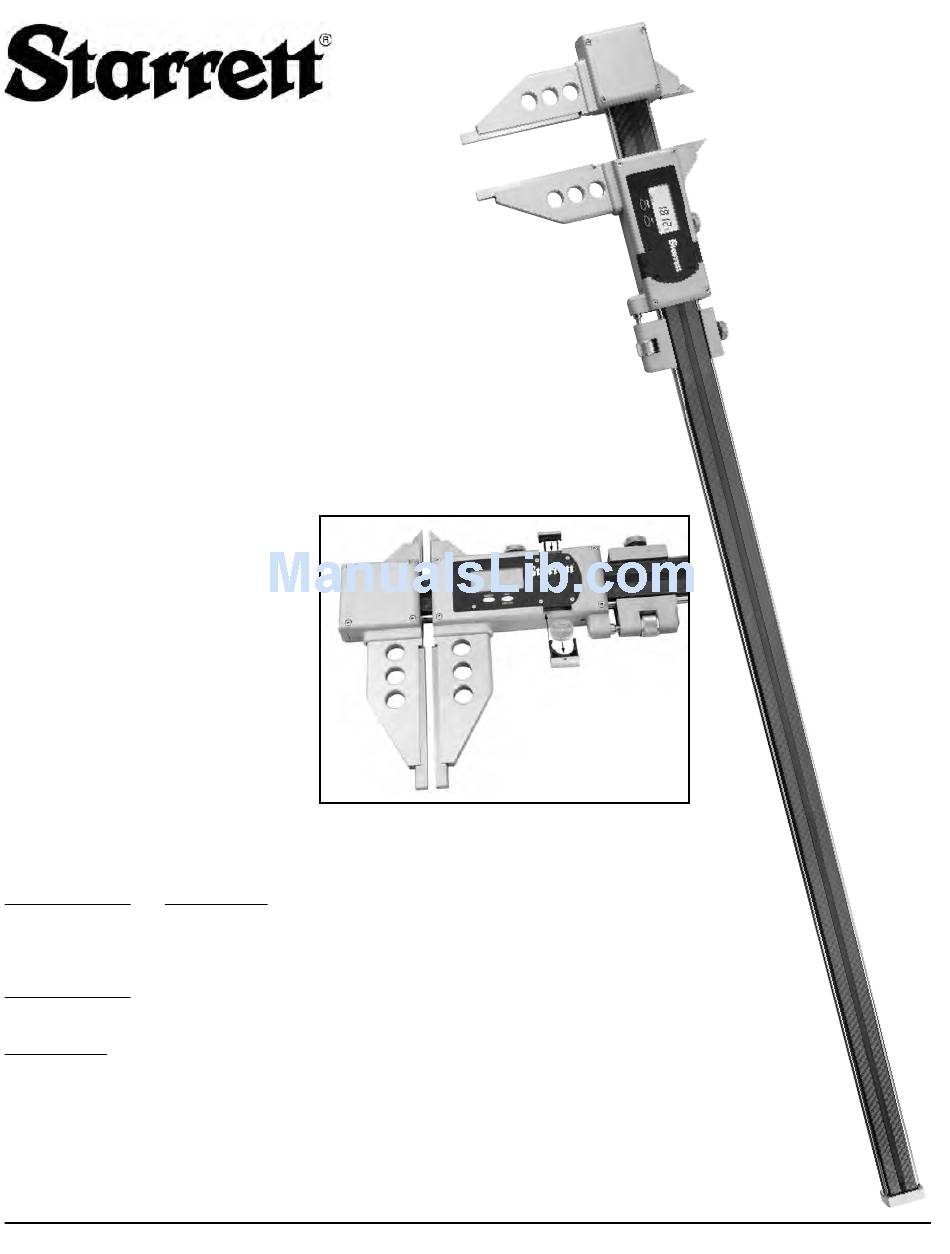

- Page 1 Carbon Fiber Calipers No. 5001B Series User’s Guide INTRODUCTION This Starrett product is designed for ease of use and provides the ability to output measurements to a variety of peripherals, either through a traditional wire or by connecting to a Starrett DataSure ®...
- Page 2 LCD Display Taking Measurements Measurements can be taken from: SET, REF I, REF II, MIN / MAX, and TOLERANCE Modes Indicator of Min Max Mode Indicator of Reference Mode Measured value Negative sign Battery life warning display Indicating cursor for Preset and Tolerance Indicator of Measuring unit Indicator of Tolerance Mode Indicator of Preset Mode...
- Page 3 Reference Mode RECALL PRESET REFERENCE VALUE Measuring in MIN / MAX Mode REF I and REF II Modes will allow for two Used to calibrate the gage to a preset To enter MIN / MAX MODE: Press and Hold MODE until MIN MAX and independent preset values to be set up.
- Page 4 To store upper value and return to Tolerance Mode: Press and Hold MODE until TOL appears To exit Tolerance Setting Mode: Press and Hold MODE MEASUREMENTS CAN NOW BE TAKEN starrett.com • 978-249-3551 Form No. 953 09/09 Specifications subject to change.
