Starrett 5000B Series User Manual

Electronic calipers

Table of Contents

Download this manual

5006B

INTRODUCTION

This Starrett product is designed for ease of use and provides the ability to output measurements to a variety of peripherals , either

through a traditional wire or by connecting to a Starrett DataSure

This tool requires one CR2032 Lithium battery to operate the electronics. The battery is installed by first removing the aluminum

cover held in place by four screws [Fig.1]. If the battery is to be replaced , carefully slide it out of the battery compartment . Next,

install a new battery with the positive side facing upward, then reinstall the cover by securing it in place with the four screws

The gage can be switched from inch mode to millimeter mode, or the reverse, with one quick push of this button. When an

RS232 cable is installed in the output slot of the tool, the mm/inch function is disabled and the button becomes a send button.

Electronic Calipers

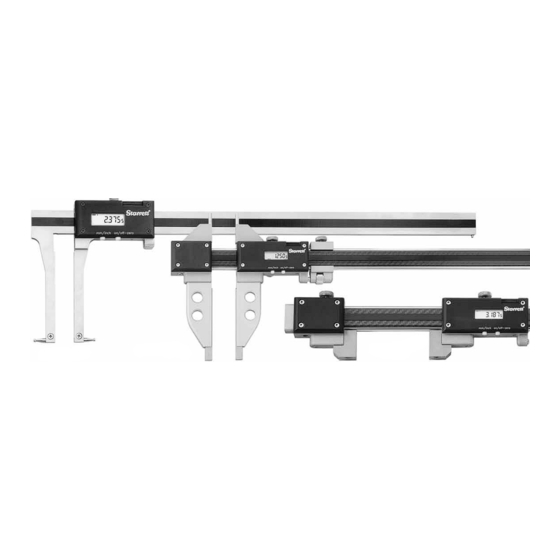

No. 5000B, 5002B, 5005B & 5006B

5000B

Series

User's Guide

Wireless Data Collection System End Node.

5005B

5002B

Table of Contents

Do you have a question about the 5000B Series and is the answer not in the manual?

Page 1 5006B INTRODUCTION This Starrett product is designed for ease of use and provides the ability to output measurements to a variety of peripherals , either through a traditional wire or by connecting to a Starrett DataSure Wireless Data Collection System End Node.
Page 2 Hold Feature In order to use this function, the display must either be in REF I or REF II mode. A quick push of the on/off-zero button will freeze the display and the word Hold will appear in the upper right hand corner of the display. A second push will update the display to the current position reading.
Page 3 Output This tool comes with an Opto-RS232 output port that allows data transmission thru a traditional wire to a variety of peripherals or by connecting to a Starrett DataSure ® Wireless Data Collection System using a Cat.1500-3-1N end node. The print command is controlled by the mm/inch button.
