Imax Quattro B6 User Manual

TABLE OF CONTENTS

Introduction.................................................................................01
Special features...........................................................................03
Warning and safety notes..............................................................05
Program flow chart........................................................................10
Lithium polymer balance charge program connection diagram..........11
Initial parameter setup (users set up).............................................12
Charging of lithium battery............................................................14
Balance charging of lithium battery................................................15
Fast charging of lithium battery......................................................16
Storage control of lithium battery...................................................16
Discharging of lithium battery.........................................................17
Charging of NiCd/NiMH battery .....................................................17
Discharge of NiCd/NiMH battery....................................................18
Charge/discharge and discharge/charge cycle of NiCd/NiMH battery
Charging of the Pb battery.............................................................19
Discharging of the Pb battery.........................................................19
Storage data program...................................................................20
Load data program........................................................................20
Various information in the program................................................21
Warning and error message..........................................................22
Specification................................................................................23
The set contains...........................................................................23
Recommended accessories...........................................................24
Conformity declaration..................................................................25
Warranty and service....................................................................25

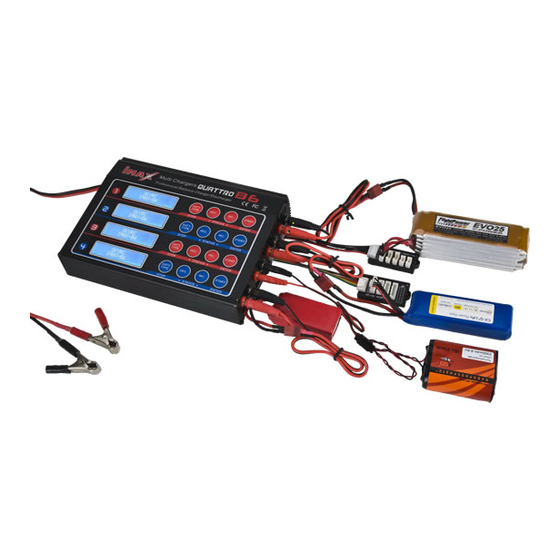

Congratulations on your choice of the iMAX Quattro B6 digital intelligent charger from
SKYRC Technology Co., Ltd. You are now the owner of a compact charger with battery
management and integral balancer.
The unit is simple to use, but the operation of a sophisticated automatic charger such as
the iMAX Quattro B6 does require some knowledge on the part of the user. These
operating instructions are designed to ensure that you quickly become familiar with its
functions.
It is therefore important that you read right through the Operating Instructions, Warning
and Safety Notes before you attempt to use your new automatic charger for the first time.
We hope you have many years of pleasure and success with your new battery charger.
iMAX Quattro B6 employs the circuit that features four totally independent but identical
power outputs which are powered 50 watts each. Total powers are 200 watts. As a result ,
it can charge or discharge up to 4 x 15 cells of NiCd/NiMH or 4 x 6 series of Lithium
batteries simultaneously. Quattro B6 has four individual cell voltage balancer at each
outputs, so it does not required any balancer separately when charging Lithium batteries
(LiPo/LiIon/LiFe) for voltage balancing.
The twin-fan cooling system is so smart and efficiently. The fan speed is controlled by
internal temperature sensor.
.....18
Following instructions only apply to one of the four chargers, as all of them operate
according to same principle.
Please BE SURE to read these instructions and Warning and Safety Notes before you
use the charger for the first time.
It can be dangerous to mis-handle batteries and battery chargers, as there is always a
risk of batteries catching fire and exploding.
Liability Exclusion
This charger is designed and approved exclusively for use with the types of battery
stated in these Instruction Manual. SkyRC accepts no liablility of any kind if the charger
is used for any purpose other than that stated.
We are unable to ensure that you follow the instructions supplied with the charger, and
we have no control over the methods you employ for using, operating and maintaining
the device. For this reason we are obliged to deny all liability for loss, damage or costs
which are incurred due to the incompetent or incorrect use and operation of our products,
or which are connected with such operation in any way.
Unless otherwise prescribed by law, our obligation to pay compensation, regardless of
the legal argument employed, is limited to the invoice value of those SkyRC products
which were immediately and directly involved in the event in which the damage occurred.
INTRODUCTION
01
