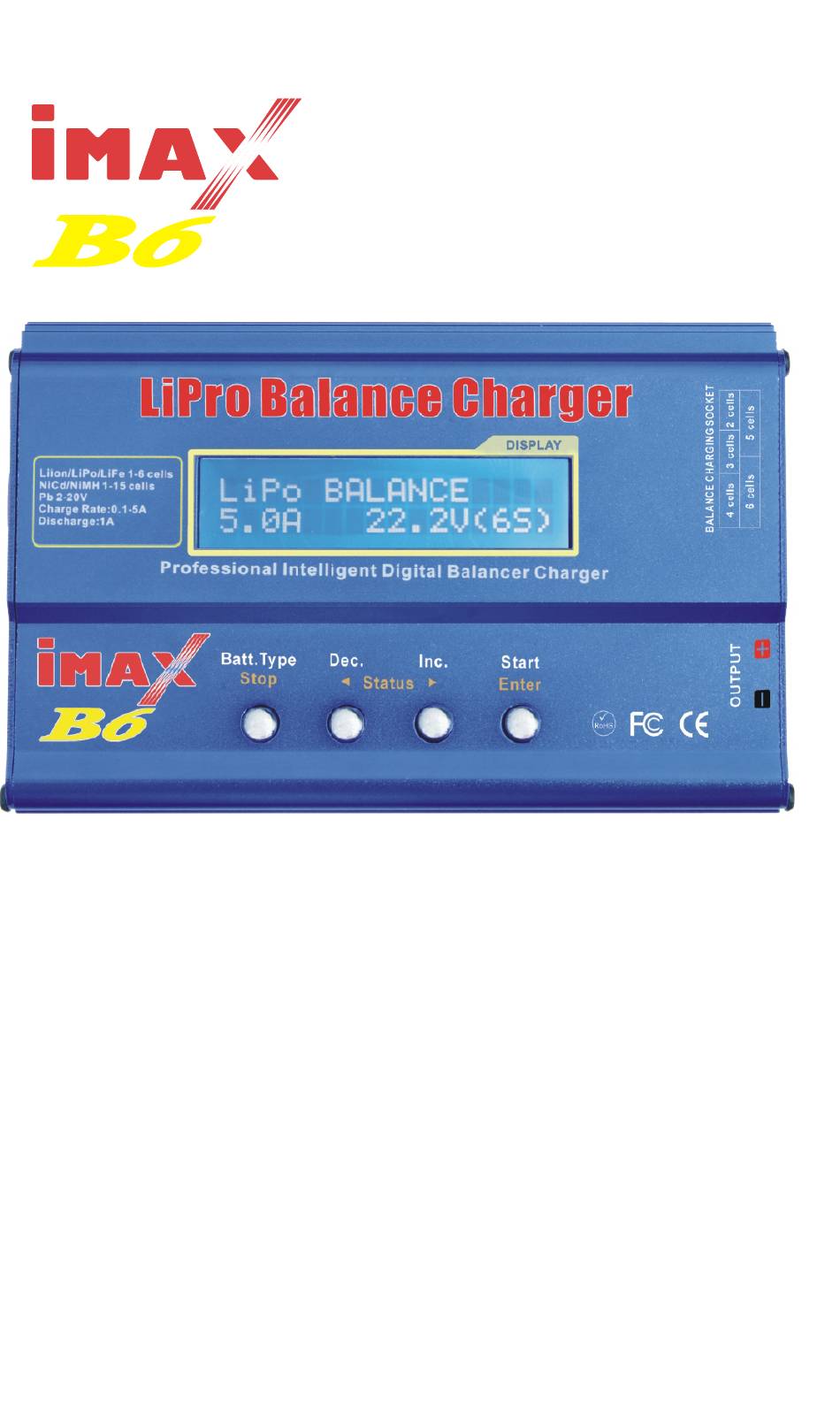

- Page 1 Instruction Manual...
-
Page 2: Specifications
Balancing individual cells battery discharging During the process of discharging, B6 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is... - Page 3 Adaptable to various type of Lithium battery B6 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries. Fast and storage mode of Lithium battery Purposes to charge Lithium battery varies, ‘fast’ charge reduce the duration of charging, whereas ‘store’...
- Page 4 Analysis is available in PC through USB communication ** For technical specialist, B6 offers PC-based software which can analyze the characteristic of the battery via USB port. A graph of voltage, current, capacity and temperature curves, and voltage of individual battery of the battery pack will be displayed.

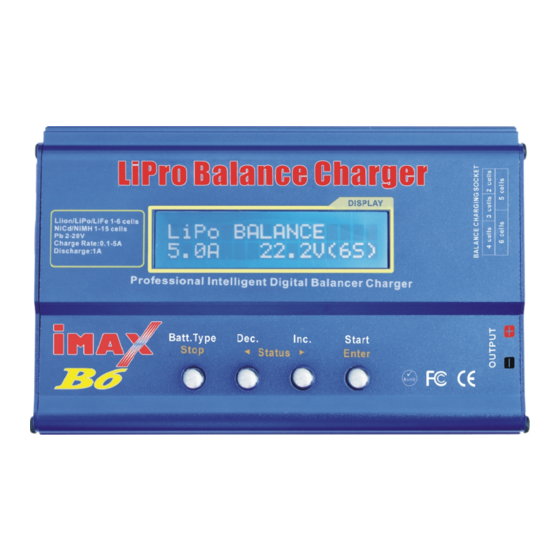

- Page 5 Output charge lead Input power cable 4mm banana plug 11-18V DC Balance lead sockets JST-XH ports LCD screen .Scroll through the Main Menu .Stop any charge processes .Resume or start charge processes .Confirm an action Alter values See the status of individual cells in balance charge mode...
- Page 6 LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM This diagram shows the correct way to connect your battery to the B6 charger while charging in the balance charge program mode only. WARNING: Failure to connect as shown in this diagram will damage this charger.
- Page 7 WARNING AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Never leave the charger unattended when it is connected to its power supply.
- Page 8 To avoid short circuit between the charge lead always connect the charge cable to the charger first, then connect the battery. Reverse the sequence when disconnecting. Do not connect more than one battery pack to this charger at any one time. Never attempt to charge or discharge the following types of batteries.
- Page 9 Charging During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer.
- Page 10 Program flow chart Start Start Program Select LiXX Enter Enter LiXX Charge LiXX Balance Lithium Battery Fast Charge Bat. Type Stop LiXX LiXX Discharge Storage Start Enter Program Select NiMH NiMH NiMH Charge NiMH Battery Discharge Cycle ‘Aut/Man’ Bat. Type Stop Start Program Select...
- Page 11 LiPo/LiIo/LiFe To avoid from erroneous setting by CHK Time 10 min CHK Time 10 min users,B6 detects the cell count of Lithium battery automatically at the beginning of charge or discharge process. But battery that is deep-discharged can't be detected correctly.
- Page 12 There is a 3-pin port on the left of the charger used as USB interface or temperature sensor port. If the screen displays temperature, you can use the optional temperature probe to connect to the surface of the battery. If it is set as the USB port, you can connect the charger to your PC through the optional USB cable to monitor the charging process through optional software.
-
Page 13: Charging Of Lithium Battery
Safe timer Calculation When charging NiCd or NiMH batteries, divide the capacity by current, then divide the result by 11.9, set this number of minutes as the value for safety timer setting. If the charger stopped at this time threshold, about 140% of the capacity will have been fed into the battery. -
Page 14: Charging Lithium Battery In The Balance Mode
This screen shows the real-time status during charge process. Press BATT TYPE/STOP key once to stop the charge process. Charging lithium battery in the balance mode This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the balance mode, the battery needs to have a balance lead to connect to the individual port at the right side of the charger. -
Page 15: Fast Charging Of Lithium Battery
Fast charging of Lithium battery Charging current will become lower LiPo FAST CHG when it progress to the end of 2.0A 11.1V(3S) charging. A specific CV process will be reduced to end the charging process earlier. In fact, the charging current will goes to 1/5 when the charging process comes to 1/10. -
Page 16: Discharging Of Lithium Battery
“storage” and “discharging” process. To achieve this feature, plug each battery to the charger individually. If voltage of any cell is abnormal, B6 will show error message and terminate the program forcibly. So if there is battery damage or disconnection, you can see the error message and press INC to know which cell is damaged. -
Page 17: Charging Of Nicd/Nimh Battery
Charging of NiCd/NiMH battery This program is for charging and discharging of NiCd/NiMH NiCd Sensitivity NIMH CHARGE Aut batteries associated with R/C models applications. You can CUR LIMIT 5.0A D.Peak Default press START/ENTER key to make it blink and then INC or DEC to change the parameter value. -
Page 18: Charge/Discharge And Discharge/Charge Cycle Of Nicd/Nimh Battery
Charge/discharge and discharge/charge cycle of NiCd/NiMH battery You can set up sequence on the left and the number of cycles on NiCd Sensitivity NIMH CYCLE the right. You can balance, refresh D.Peak DCHG>CHG Default and break-in the battery with this function .You can set a temporary cool-off procedure in the user's setting. -
Page 19: Charging Of The Pb Battery
Charging of the Pb battery Set up the charge current on the left and nominal voltage on Pb CHARGE the right. Range of current is 4.0A 12.0V(6P) 0.1-5.0A, the voltage should m a t c h t h e b a t t e r y b e i n g c h a r g e d . - Page 20 Data storage program For your convenience, B6 has a data storage and load program. It can store five battery data representing the respective specifications of batteries. You can call back the data when charging or discharging without setting up the program again. Press START/ENTER key to make it blink, and use INC or DEC to set up the parameter.
-
Page 21: Load Data Program
Load data program This program is to load the data stored at the “save data” program. Press START/ENTER key to make the data field blink and press INC or DEC for more than 3 seconds to load the data. PROGRAM SELECT LOAD DATA Start Enter... -
Page 22: Safety Timer
It comes to the final voltage when the End Voltage program ended. 12.6v(3s) Capacity Cut-Off 5000mAh Safety Timer 200min 3-pin connector is selected to be the USB USB/Temp Select port. Enabled The external temperature is displayed Ext.Temp when the temperature probe is used. Present input voltage. -
Page 23: Warning And Error Information
Warning and error information B6 incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error the screen will display the cause of error and emit an audible sound. -
Page 24: Warranty And Service
Warranty and service We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at t he time of purchase. During that period, we will repair or replace free of service charge for products deemed defective due to those causes.
