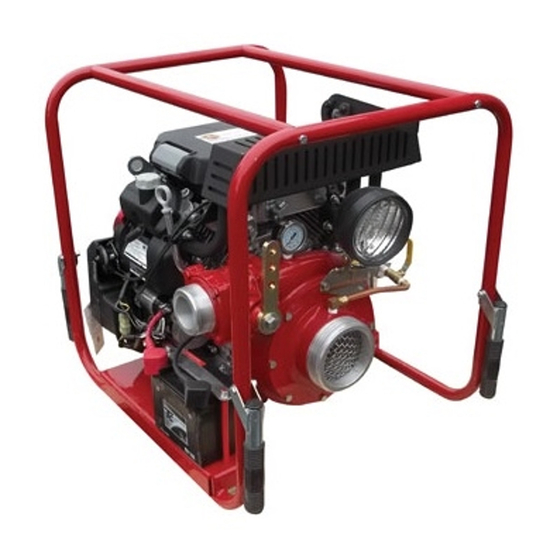

CET PFP-20HP-HND-1D Instruction Manual

PFP-20HP-HND-1D
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Honda 20hp at 3600 RPM, air cooled engine.
• V-Twin cylinder gasoline engine.
• Electric start.
• 6 gallon (22 l) detachable fuel tank.
PUMP UNIT SPECIFIC TIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Exhaust priming system, guaranteed up to 20' (6 meter) lift.
• One 2 1/2" (65 mm) delivery outlet with 1/4-turn ball valve.
• One 4 " (100 mm) suction inlet.
• Dimensions : Length : 25 7/8" (650 mm); Width : 20 1/4 " (514 mm); Height : 22 1/8" (561 mm).
• Weight : 185 lbs (84 kg).
INCLUDED CCESSORIES
• Swivel spotlight.
• 36 watts alternator.
• Low oil alert.
• Pressure gauge.
• 12-V battery.
PERFORM NCE
510 GPM (1928 LPM) @ 10 PSI (0.7 bar)
410 GPM (1550 LPM) @ 25 PSI (1.7 bar)
315 GPM (1191 LPM) @ 50 PSI (3.5 bar)
190 GPM (718 LPM) @ 75 PSI (5.2 bar)
75 GPM (284 LPM) @ 100 PSI (6.9 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST 75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS M NU L
Telephone: 1-800-567-2719 Fax: 1-800-434-2613 www.fire-pump.com
