ACCUSPLIT, Inc.
2290A Ringwood Ave., San Jose, CA 95131
800-965-2008 • 925-226-0888 • FAX 925-463-0147
www.ACCUSPLIT.com/support • support@ACCUSPLIT.com
Eat Right! Walk More! Live Well!
The ACCUSPLIT Lifestyle
Functions
• Step counter.
• Distance in mi or km.
• Calories, based on high-accuracy proprietary formula.
For complete Function Specifications, go to page 27.
2
2
HOW TO OPEN YOUR PEDOMETER
See diagrams at right.
The cover must be closed for the
pedometer to work.
4
Getting Acquainted
• Press the MODE button to cycle through the display
modes (Steps, Activity T ime, ...).
See page 19 and Specifications for details.
• The RESET button sets your counts back to zero.
See page 20 for details.
MODES
• STEP: STEP mode shows step count.
• DIST: DISTANCE mode shows distance traveled (mi/km).
• CAL: CALORIE mode shows calories burned.
6

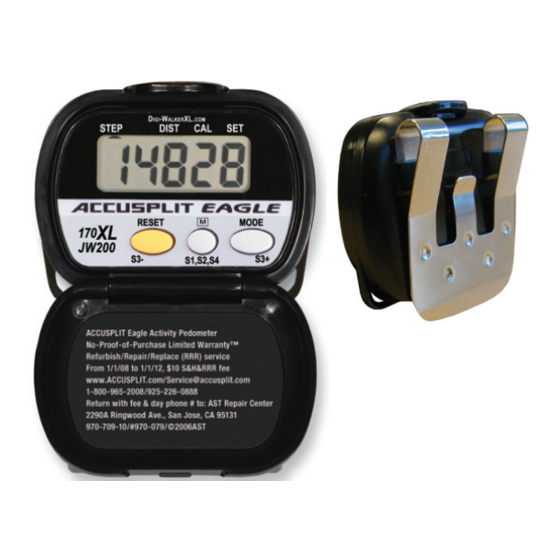

ACCUSPLIT®
AE170XL
PEDOMETER
Operating Instructions
970-084
Sept 07
Key Features
• Built around the Japanese-made JW200 PedometerEngine™
Step Sensor, the current gold standard for accuracy.
• Extra Large Digits.
• The ACCUSPLIT exclusive case makes this the slimmest
available pedometer built around the JW200 Step Sensor.
• Chromed, Spring Steel clip resists breakage.
• Case includes two leash slots, for attaching safety leash
on either side. Made from tough polycarbonate plastic.
• Step filter, can be set from 0-5 steps to further increase
accuracy.
USE IT NOW!
Your pedometer is preset with standardized settings
that allow you to use it now! Y ou can customize the
settings later. Skip to pages 16-19 to use it now!
SETTING UP YOUR PEDOMETER
It's a good idea to set up your pedometer before first using it.
To record your distance and calories accurately, you will need
to set your stride length and body weight. Y ou may also wish
to set the clock to the correct time of day.
See page 9 when you are ready to set up your unit.
Mode
indicator
EAGLE
-
D
W
XL
IGI
ALKER
.COM
STEP
DIST
CAL
SET
XL
170
JW200
S3-
S1,S2,S4
S3+
RESET Button (yellow)
3
5
Steps
Counted
MODE Button
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Accusplit Eagle AE170XL
Summary of Contents for Accusplit Eagle AE170XL
-
Page 1: Operating Instructions
ACCUSPLIT, Inc. 2290A Ringwood Ave., San Jose, CA 95131 800-965-2008 • 925-226-0888 • FAX 925-463-0147 www.ACCUSPLIT.com/support • support@ACCUSPLIT.com Eat Right! Walk More! Live Well! The ACCUSPLIT Lifestyle Functions • Step counter. • Distance in mi or km. • Calories, based on high-accuracy proprietary formula. For complete Function Specifications, go to page 27. HOW TO OPEN YOUR PEDOMETER See diagrams at right. - Page 2 SETTING PROCEDURE ACCUSPLIT products use a common setting procedure known as “S1- S2-S3-S4. ” Here’s how it works: Press S1 for 2 seconds: Enter the SET mode Press S2: Change the field to be set Press S3: Change the field value Press S4 for 2 seconds: Exit the SET mode You can enter and exit Set mode from any of the regular display screens. Once in Set mode, you can cycle through all of these settings by pressing S2 repeatedly: Set Stride Length g Set Weight g Set Stride Length “in” indicator for inches ALKER .COM STEP TIME DIST 140S JW200 S1,S2,S4 Setting Stride Length Finding Your Stride Length: Your stride length is the length of one of your steps, measured from “toe to toe. ” T o measure, walk 10 steps with your normal stride and measure the T OTAL DISTANCE from the toe of your starting step to the toe of your 10th step (see diagram below). Divide the...
- Page 3 WEARING YOUR PEDOMETER Gently slide the pedometer onto your belt or the top edge of your pants or skirt. It should fit snugly and level, above one knee. T he strong steel clip makes it easy. Note: T he pedometer should be as vertical as possible. Walkers with larger stomachs may find it helpful to wear the pedometer farther back on the body, toward one hip. The cover must be closed for the pedometer to work. First, loop leash through slot on side of pedomete Next, clasp clothing Or, loop a belt or belt loop RESETTING YOUR PEDOMETER...
- Page 4 9,999.9 Kcal, then rollover. Automatically counts whenever step activity is occurring. • Uses a proprietary formula for high accuracy in Calorie computation. REGISTER NOW Please return your AE170XL Registration to the Repair Center address in the warranty, and we will let you know about future products. NO-PROOF-OF-PURCHASE LIMITED WARRANTY Free service for first year of ownership; $12 fee for service thereafter. See label inside unit for date.
