INSTALLATION

Before installing the keypad, the unit must be partially disassembled
to access the mounting plate.

Opening the Keypad

The keypad assembly is secured with two screws that are hidden
behind the keypad's nameplate. Refer to Figure 3 for disassembly
details.
❑ Use a small fl at blade screwdriver to pry off the keypad's
nameplate.
❑ Use a philips head screwdriver to remove the two screws.
❑ Separate the mounting plate from the keypad assembly.
1
PRY UP ON THE
NAMEPLATE
HERE
MOUNTING
PLATE
SEPARATE THE
3
MOUNTING PLATE
FROM THE KEYPAD

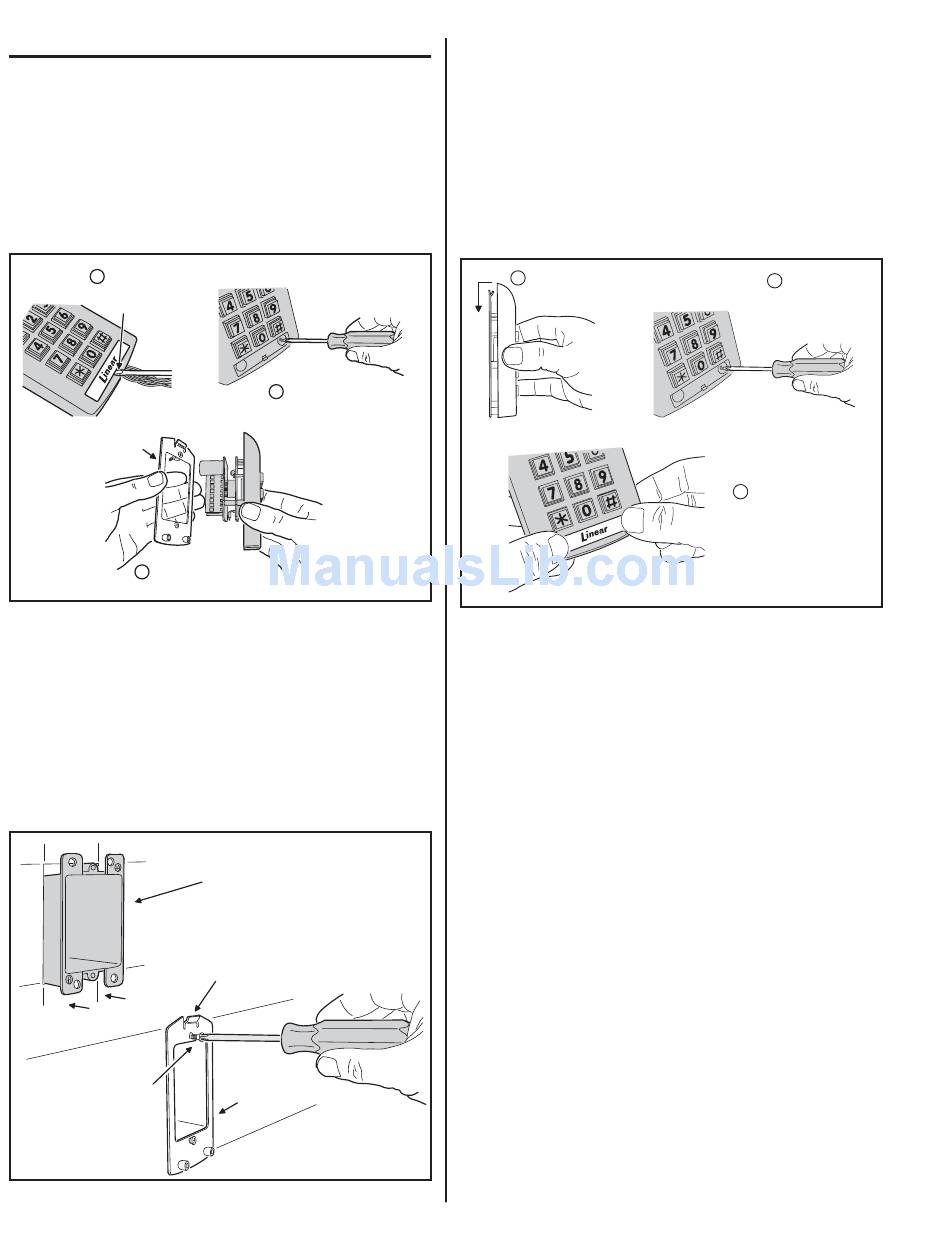

Figure 3. Opening the Keypad

Install the Electrical Box and Mounting Plate

The keypad is designed to fi t into a standard single-gang electrical
box. Select a location near the controlled door and choose a
convenient height for the keypad. Be sure there is good wiring
accessibility for the unit's power and the output to the door strike
or access device.
❑ Install the electrical box in the wall.
❑ Screw the mounting plate onto the electrical box (see
Figure 4).
ATTACH THE MOUNTING
PLATE TO THE
ELECTRICAL BOX
Figure 4. Installing the Mounting Plate
2
2
REMOVE THE
TWO SCREWS
INSTALL A SINGLE-GANG
ELECTRICAL BOX AT THE
PROPER LOCATION
FOR THE KEYPAD
MAKE SURE THE
TAB IS UP
MOUNTING
PLATE

Final Keypad Installation

After wiring the keypad (see next page), complete the installation
by securing the keypad to the mounting plate.
❑ If a lower beeper sound level is required, before installing
the keypad, remove Jumper at P4 (place the jumper block
on one pin to save the jumper).
❑ Hook the keypad assembly onto the mounting plate tab (see
Figure 5).
❑ Secure with two philips screws.
❑ Snap nameplate into position over screws.
1
HOOK THE KEYPAD ASSEMBLY
ONTO THE MOUNTING PLATE
Figure 5. Connecting the Keypad to the Mounting Plate
2
INSTALL THE
TWO SCREWS
3
SNAP THE NAMEPLATE
INTO PLACE
