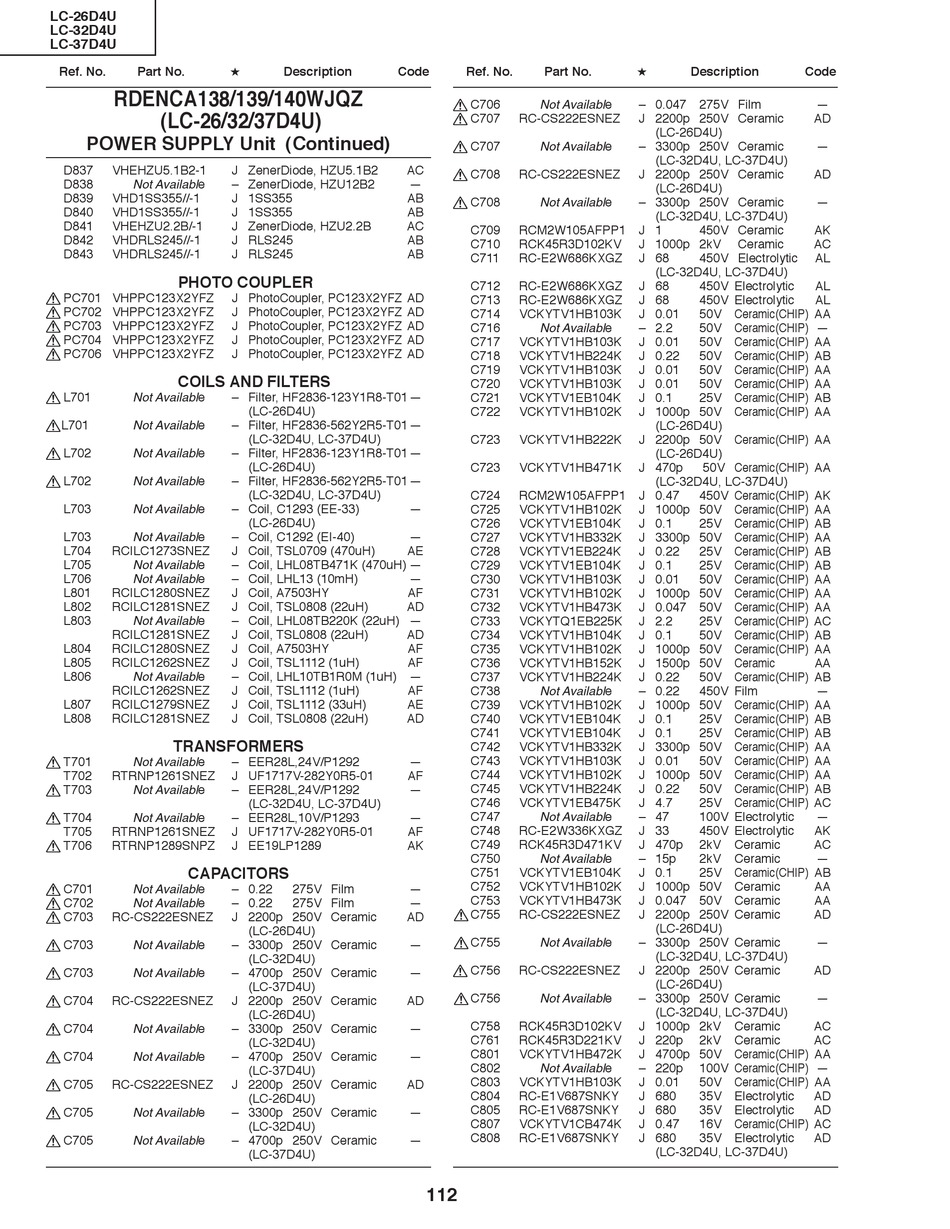

Sharp LC-26D4U Service Manual page 91

LC-26D4U
LC-32D4U
LC-37D4U
Ref. No. Part No.
RDENCA138/139/140WJQZ
(LC-26/32/37D4U)
POWER SUPPLY Unit (Continued)
D837 VHEHZU5.1B2-1
D838 Not Availabl e
D839 VHD1SS355//-1
D840 VHD1SS355//-1
D841 VHEHZU2.2B/-1
D842 VHDRLS245//-1
D843 VHDRLS245//-1
PHOTO COUPLER
å PC701 VHPPC123X2YFZ
å PC702 VHPPC123X2YFZ
å PC703 VHPPC123X2YFZ
å PC704 VHPPC123X2YFZ
å PC706 VHPPC123X2YFZ
COILS AND FILTERS
å L701
Not Availabl e
åL701
Not Availabl e
å L702
Not Availabl e
å L702
Not Availabl e
L703 Not Availabl e
L703 Not Availabl e
L704 RCILC1273SNEZ
L705 Not Availabl e
L706 Not Availabl e
L801 RCILC1280SNEZ
L802 RCILC1281SNEZ
L803 Not Availabl e
RCILC1281SNEZ
L804 RCILC1280SNEZ
L805 RCILC1262SNEZ
L806 Not Availabl e
RCILC1262SNEZ
L807 RCILC1279SNEZ
L808 RCILC1281SNEZ
TRANSFORMERS
å T701
Not Availabl e
T702 RTRNP1261SNEZ
å T703
Not Availabl e
å T704
Not Availabl e
T705 RTRNP1261SNEZ
å T706
RTRNP1289SNPZ
CAPACITORS
å C701
Not Availabl e
å C702
Not Availabl e
å C703
RC-CS222ESNEZ
å C703
Not Availabl e
å C703
Not Availabl e
å C704
RC-CS222ESNEZ
å C704
Not Availabl e
å C704
Not Availabl e
å C705
RC-CS222ESNEZ
å C705
Not Availabl e
å C705
Not Availabl e
★
Description Code
J ZenerDiode, HZU5.1B2 AC
– ZenerDiode, HZU12B2 —
J 1SS355 AB
J 1SS355 AB
J ZenerDiode, HZU2.2B AC
J RLS245 AB
J RLS245 AB
J PhotoCoupler, PC123X2YFZ AD
J PhotoCoupler, PC123X2YFZ AD
J PhotoCoupler, PC123X2YFZ AD
J PhotoCoupler, PC123X2YFZ AD
J PhotoCoupler, PC123X2YFZ AD
– Filter, HF2836-123Y1R8-T01 —
(LC-26D4U)
– Filter, HF2836-562Y2R5-T01 —
(LC-32D4U, LC-37D4U)
– Filter, HF2836-123Y1R8-T01 —
(LC-26D4U)
– Filter, HF2836-562Y2R5-T01 —
(LC-32D4U, LC-37D4U)
– Coil, C1293 (EE-33) —
(LC-26D4U)
– Coil, C1292 (EI-40) —
J Coil, TSL0709 (470uH) AE
– Coil, LHL08TB471K (470uH) —
– Coil, LHL13 (10mH) —
J Coil, A7503HY AF
J Coil, TSL0808 (22uH) AD
– Coil, LHL08TB220K (22uH) —
J Coil, TSL0808 (22uH) AD
J Coil, A7503HY AF
J Coil, TSL1112 (1uH) AF
– Coil, LHL10TB1R0M (1uH) —
J Coil, TSL1112 (1uH) AF
J Coil, TSL1112 (33uH) AE
J Coil, TSL0808 (22uH) AD
– EER28L,24V/P1292 —
J UF1717V-282Y0R5-01 AF
– EER28L,24V/P1292 —
(LC-32D4U, LC-37D4U)
– EER28L,10V/P1293 —
J UF1717V-282Y0R5-01 AF
J EE19LP1289 AK
– 0.22 275V Film —
– 0.22 275V Film —
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic —
(LC-32D4U)
– 4700p 250V Ceramic —
(LC-37D4U)
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic —
(LC-32D4U)
– 4700p 250V Ceramic —
(LC-37D4U)
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic —
(LC-32D4U)
– 4700p 250V Ceramic —
(LC-37D4U)
Ref. No. Part No.
å C706
Not Availabl e
å C707
RC-CS222ESNEZ
å C707
Not Availabl e
å C708
RC-CS222ESNEZ
å C708
Not Availabl e
C709 RCM2W105AFPP1
C710 RCK45R3D102KV
C711 RC-E2W686KXGZ
C712 RC-E2W686KXGZ
C713 RC-E2W686KXGZ
C714 VCKYTV1HB103K
C716 Not Availabl e
C717 VCKYTV1HB103K
C718 VCKYTV1HB224K
C719 VCKYTV1HB103K
C720 VCKYTV1HB103K
C721 VCKYTV1EB104K
C722 VCKYTV1HB102K
C723 VCKYTV1HB222K
C723 VCKYTV1HB471K
C724 RCM2W105AFPP1
C725 VCKYTV1HB102K
C726 VCKYTV1EB104K
C727 VCKYTV1HB332K
C728 VCKYTV1EB224K
C729 VCKYTV1EB104K
C730 VCKYTV1HB103K
C731 VCKYTV1HB102K
C732 VCKYTV1HB473K
C733 VCKYTQ1EB225K
C734 VCKYTV1HB104K
C735 VCKYTV1HB102K
C736 VCKYTV1HB152K
C737 VCKYTV1HB224K
C738 Not Availabl e
C739 VCKYTV1HB102K
C740 VCKYTV1EB104K
C741 VCKYTV1EB104K
C742 VCKYTV1HB332K
C743 VCKYTV1HB103K
C744 VCKYTV1HB102K
C745 VCKYTV1HB224K
C746 VCKYTV1EB475K
C747 Not Availabl e
C748 RC-E2W336KXGZ
C749 RCK45R3D471KV
C750 Not Availabl e
C751 VCKYTV1EB104K
C752 VCKYTV1HB102K
C753 VCKYTV1HB473K
å C755
RC-CS222ESNEZ
å C755
Not Availabl e
å C756
RC-CS222ESNEZ
å C756
Not Availabl e
C758 RCK45R3D102KV
C761 RCK45R3D221KV
C801 VCKYTV1HB472K
C802 Not Availabl e
C803 VCKYTV1HB103K
C804 RC-E1V687SNKY
C805 RC-E1V687SNKY
C807 VCKYTV1CB474K
C808 RC-E1V687SNKY
112
★
Description Code
– 0.047 275V Film
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic
(LC-32D4U, LC-37D4U)
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic
(LC-32D4U, LC-37D4U)
J 1 450V Ceramic AK
J 1000p 2kV Ceramic AC
J 68 450V Electrolytic AL
(LC-32D4U, LC-37D4U)
J 68 450V Electrolytic AL
J 68 450V Electrolytic AL
J 0.01 50V Ceramic(CHIP) AA
– 2.2 50V Ceramic(CHIP) —
J 0.01 50V Ceramic(CHIP) AA
J 0.22 50V Ceramic(CHIP) AB
J 0.01 50V Ceramic(CHIP) AA
J 0.01 50V Ceramic(CHIP) AA
J 0.1 25V Ceramic(CHIP) AB
J 1000p 50V Ceramic(CHIP) AA
(LC-26D4U)
J 2200p 50V Ceramic(CHIP) AA
(LC-26D4U)
J 470p 50V Ceramic(CHIP) AA
(LC-32D4U, LC-37D4U)
J 0.47 450V Ceramic(CHIP) AK
J 1000p 50V Ceramic(CHIP) AA
J 0.1 25V Ceramic(CHIP) AB
J 3300p 50V Ceramic(CHIP) AA
J 0.22 25V Ceramic(CHIP) AB
J 0.1 25V Ceramic(CHIP) AB
J 0.01 50V Ceramic(CHIP) AA
J 1000p 50V Ceramic(CHIP) AA
J 0.047 50V Ceramic(CHIP) AA
J 2.2 25V Ceramic(CHIP) AC
J 0.1 50V Ceramic(CHIP) AB
J 1000p 50V Ceramic(CHIP) AA
J 1500p 50V Ceramic AA
J 0.22 50V Ceramic(CHIP) AB
– 0.22 450V Film
J 1000p 50V Ceramic(CHIP) AA
J 0.1 25V Ceramic(CHIP) AB
J 0.1 25V Ceramic(CHIP) AB
J 3300p 50V Ceramic(CHIP) AA
J 0.01 50V Ceramic(CHIP) AA
J 1000p 50V Ceramic(CHIP) AA
J 0.22 50V Ceramic(CHIP) AB
J 4.7 25V Ceramic(CHIP) AC
– 47 100V Electrolytic
J 33 450V Electrolytic AK
J 470p 2kV Ceramic AC
– 15p 2kV Ceramic
J 0.1 25V Ceramic(CHIP) AB
J 1000p 50V Ceramic AA
J 0.047 50V Ceramic AA
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic
(LC-32D4U, LC-37D4U)
J 2200p 250V Ceramic AD
(LC-26D4U)
– 3300p 250V Ceramic
(LC-32D4U, LC-37D4U)
J 1000p 2kV Ceramic AC
J 220p 2kV Ceramic AC
J 4700p 50V Ceramic(CHIP) AA
– 220p 100V Ceramic(CHIP) —
J 0.01 50V Ceramic(CHIP) AA
J 680 35V Electrolytic AD
J 680 35V Electrolytic AD
J 0.47 16V Ceramic(CHIP) AC
J 680 35V Electrolytic AD
(LC-32D4U, LC-37D4U)
—
—
—
—
—
—
—
—
