Myron L ULTRAPEN PTBT2 Manual

Myron l ultrapen series temperature, ph water sensor
Hide thumbs Also See for ULTRAPEN PTBT2:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual

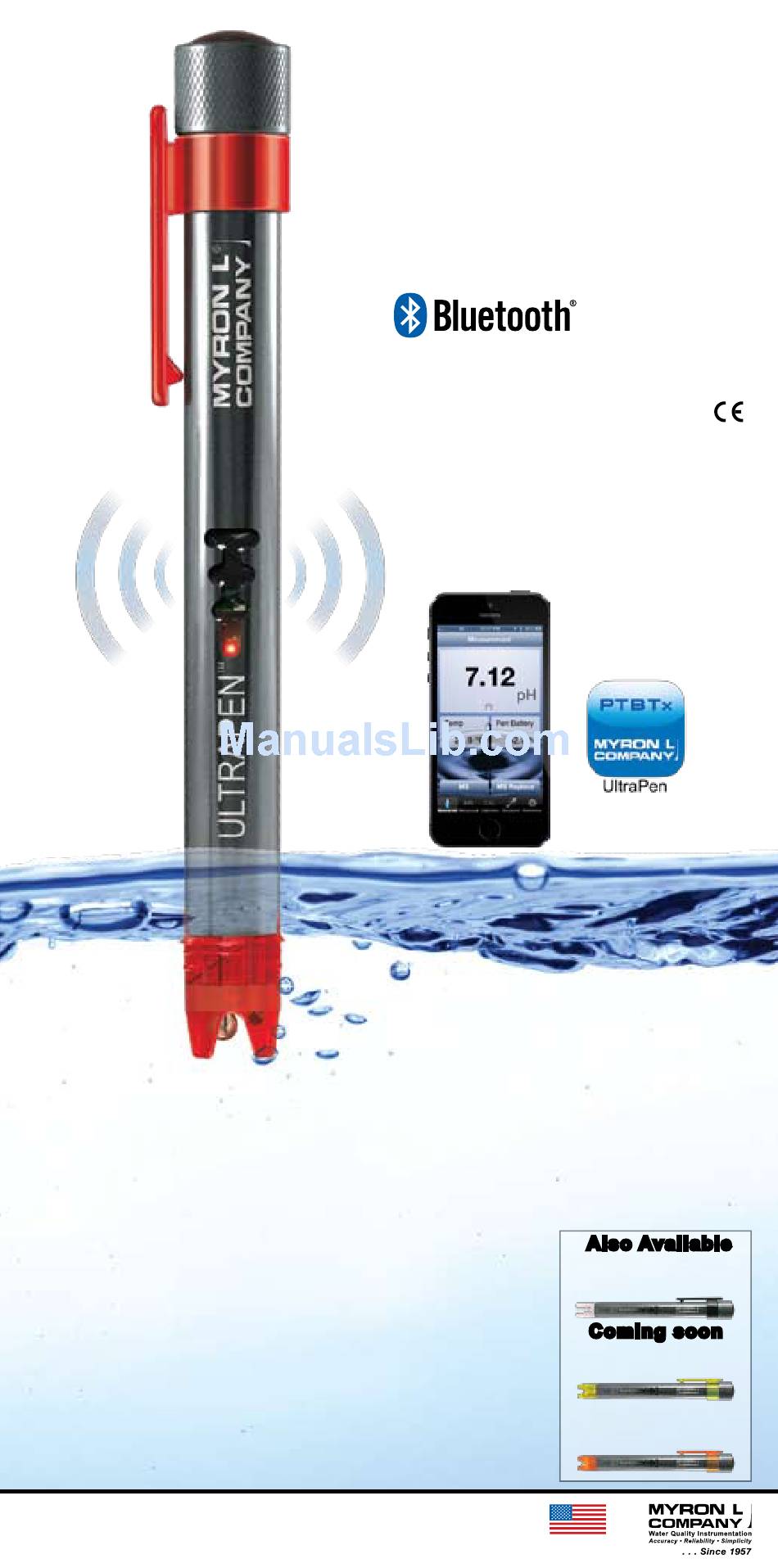

myronl.com
ULTRAPEn
PTBT2
pH
and Temperature Pen
for use with your mobile device
S ACCURATE
S RELIABLE
Professional Water Analysis
• Accuracy of ±0.01 pH
• Proprietary Sensor Design
• 1, 2 and 3 point calibration
• Automatic Temperature Compensation
• Temperature Readout
• Waterproof
• Powered by 1 N Type battery (included)
• Measurement and Calibration storage with
time, date and location.
• Export stored measurement data via email.
PACkAgE ConTEnTS:
•
PTBT2 Pocket Tester
Pen - battery installed
•
Soaker Cap
•
Scoop
•
Pocket Clip
•
Holster
•
Lanyard
•
Vi s it o ur website:
myron l. com /PTBT2. htm
™
Enabled
EDITED FOR USE
Minimum height 5 mm
S SIMPLE
Available at
Apple App Store
Also Available
ULTRAPEn™ PTBT1
Conductivity, TDS, Salinity
& Temperature
Coming soon
ULTRAPEn™ PTBT3
oRP & Temperature
ULTRAPEn™ PTBT4
Free Chlorine Equivalent
(FC
) & Temperature
E
MADE IN USA
MADE IN USA
ORIGINAL
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRAPEN PTBT2 and is the answer not in the manual?

Questions and answers

Related Manuals for Myron L ULTRAPEN PTBT2

Summary of Contents for Myron L ULTRAPEN PTBT2

  • Page 1 Pocket Clip ULTRAPEn™ PTBT3 • Holster oRP & Temperature • Lanyard • Operating Instructions ULTRAPEn™ PTBT4 Free Chlorine Equivalent Vi s it o ur website: ) & Temperature myron l. com /PTBT2. htm myronl.com ® MADE IN USA MADE IN USA...
  • Page 2 INTRODUCTION Thank you for purchasing the Myron L ULTRAPEN™ PTBT2 pH Pen. This ® instrument is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include 1, 2 and 3 point calibration; automatic temperature compensation; highly stable microprocessor-based circuitry; waterproof housing; and Mobile Device Application that is user intuitive. The PTBT2 is easy to calibrate and easy to use. Downloading the Mobile Device App 1. Go to the Apple App Store. 2. Search for the “ULTRAPEN PTBTx” iPhone App. 3. Open the ULTRAPEN page and tap the Install button. 4. Be sure to read the End User License Agreement (EULA) and the Data Use Liability Agreement (DULA). Opening the ULTRAPEN App 1. Tap ULTRAPEN App icon on the mobile device’s HOME screen.

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS The following are basic instructions for operating the PTBT2 ULTRAPEN & App. To access a full Operations Manual: 1. Inside the App tap the Preferences button on the Feature Navigation Bar. Select Help from the Settings Menu screen. The browser of your mobile devices will open and link to the Myron L ® Company website page where the PTBTx Operations Manual can be accessed. Connecting the ULTRAPEN to the Mobile Device To pair and connect the PTBT2 to your mobile device: 1. Inside the App tap the Connect button in the Feature Navigation Bar. Push and release the button on the PTBT2 to turn it ON. 3. When the PTBT2’s name appears on the Connect Screen, select that line. 4. A checkmark will appear next to PTBT2’s name. NOTE: The default name for all PTBT2’s is, “MLC-PTBTx”. To edit the name, Tap the Preferences button and go to ULTRAPEN Settings section. See the PTBTx Operations Manual for full instructiions.
  • Page 4 Rinse the pen. If measuring from a container, submerge the pen and swirl it around in FRESH sample solution 3 times. Alternatively, swirl for 30 seconds under a stream or in a body of water. 2. If the Measurement screen is not displayed, tap the Measurement button in the Feature Navigation Bar. The screen will say, “Paired ULTRAPEN is Offline“. 3. Grasp the pen near the pen cap to avoid sample contamination. 4. Remove pen from the rinse solution. 5. Press and release the PTBT2’s push button to turn it ON. 6. When the LED flashes rapidly, IMMEDIATELY dip the pen in the sample solution so that the cell is completely submerged. If you do not submerge the cell in solution before the flashing slows, allow the pen to power off and retake the reading. 7. The App screen will display “Measuring ...” 8. When the LED flashes slowly, swirl the pen to remove bubbles, keeping the cell submerged and preferably at least 1 inch (2½ cm) away from sides/bottom of container. a. In Hold mode when the LED turns on solid the display will show the final pH and temperature readings. b. In LIVE mode allow the pen to remain in solution while the LED flashes slowly. The display will show live pH and temperature readings. The pen will time out after 5 minute. Push and release the pen’s button to power it OFF at any time during LIVE measurement 9. The ULTRAPEN will turn OFF once the measurement is completed. V. Recording and Recalling Measurements Once a measurement is finished, tap the MS button (Memory Store).
  • Page 5 ... Continued from page 3 8. When the LED flashes slowly, swirl the pen around to remove bubbles, keeping the cell submerged. The Calibration screen will display. “Calibrating 7.0 pH ...” 9. When the LED light goes solid ON, the Calibration screen will display “7.0 ph CAL SAVED” along with the before and after calibration values. 10. DONE and CONTINUE Buttons will appear at the bottom of the Calibration Screen. NOTE: Tap the DONE button to end the calibration at this point, or; 11. Rinse the pH sensor with the next pH buffer (it can be either 4.0 pH or 10.0 pH buffer). 12. Tap the CONTINUE Button to calibrate the next point.

  • Page 6: Specifications

    LED turns solid ON then turns OFF: Measurement is complete and reading is displayed. Feature Navigation Bar This button always returns the App to the Measurement Screen. This button displays a list of saved measurements. This button places the App in Calibration mode. This button opens the App’s Bluetooth Connect / Disconnect screen. This button opens the App’s preferences and settings mode. An internet link to full Operations Manual (Help button) is found here. ACCESSORIES STANDARD SOLUTIONS FOR CALIBRATION: The ULTRAPEN™ PT2 requires pH 4, pH 7, and pH 10 buffer solutions for wet calibration and pH Sensor Storage Solution for proper storage. — Order MODEL#s: PH4, PH7, PH10, and PHSS. Replacement pH Sensor (with instructions) — Order Model: RPT2 MYRON L ® WARRANTY ® Excepting sensor and battery, the Myron L Company PTBT2 pH ULTRAPEN is war- ranted to be free from manufacture defect for 1 year. The pH sencer has a six (6) month limitted warrenty. MYRON L ® COMPANY 2450 Impala Drive • Carlsbad, Ca 92010-7226 • Phone: +1-760-438-2021 E-Mail: Customer Service – info@myronl.com • Technical Support – techquestions@myronl.com Website: www.myronl.com...
