Myron L ULTRAPEN PTBT2 Quick Start Manual

For a complete set of operating instructions, maintenace procedures, calibration procedures, and the FACTORY CAL reset procedure download the full
the PTBTx Ultrapen App Operation Manual and the PTBT2 Operation Manual from www.myronl.com.
1. Turn ON Ultrapen App: Tap Ultrapen icon on mobile device's home screen.
2. Turn ON PTBT2: Press and release the push button on PTBT2.
3. LED flashes rapidly: Dip PTBT2 in sample solution so sensor is totally
submerged.
4. LED flashes slowly: Swirl PTBT2 to remove bubbles, keep sensor submerged.
Avoid contact with sides/bottom of container. Measurement is ongoing.
5. LED turns solid ON then turns OFF: Measurement is complete.

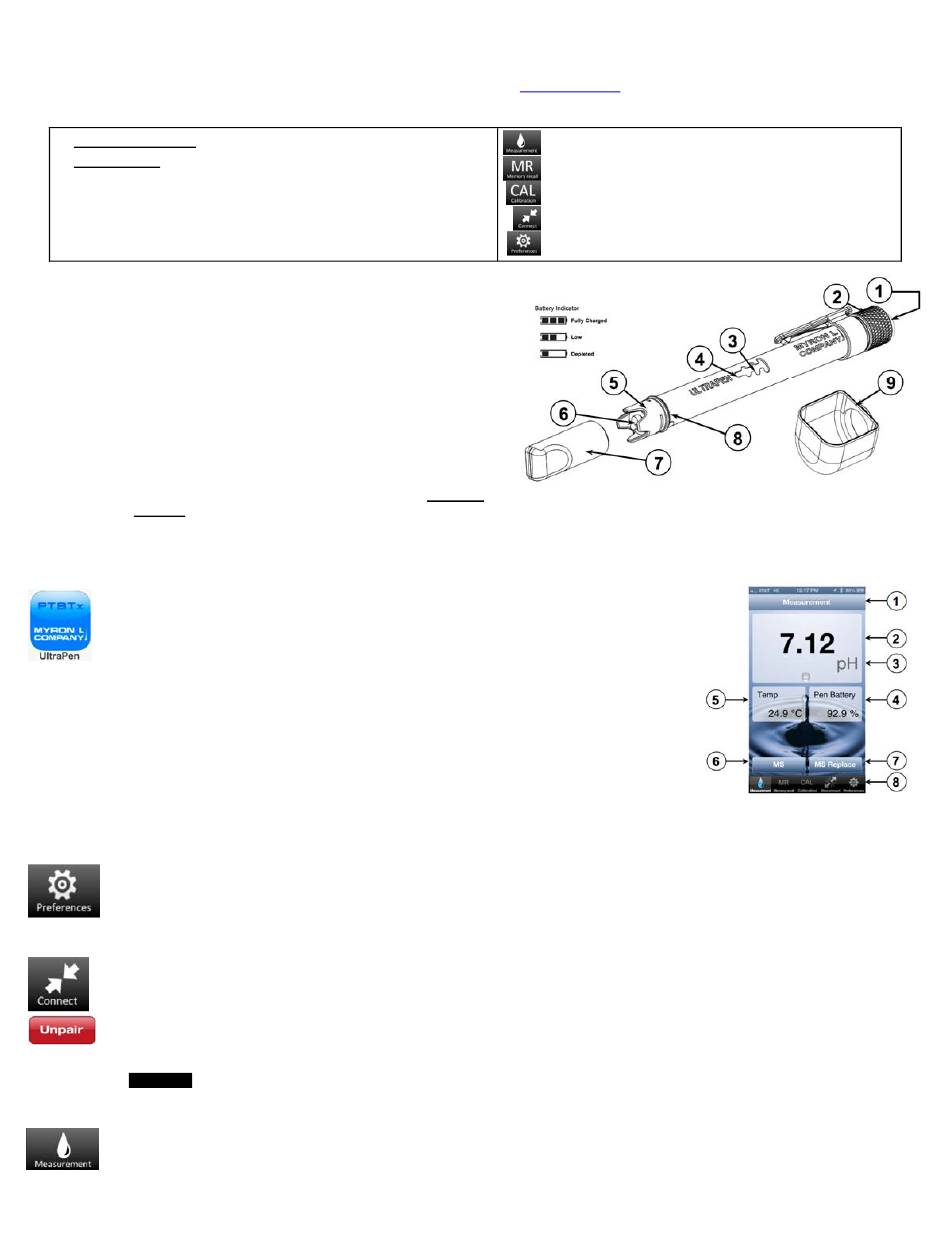

PTBT2 FEATURES

1. PUSH BUTTON – Press to turn ON and select mode settings.
2. BATTERY CAP – Unscrew to access battery for replacement.
3. WIRELESS TRANSCEIVER WINDOW - Bluetooth antenna is located here.
4. LED INDICATOR LIGHT – Tells the user when to dip & swirl PTBT2 during
measurements and calibration.
5. pH SENSOR – Measures hydrogen ion concentration of solution.
6. pH SENSOR BULB – Measures test sample's hydrogen ion concentration.
7. SOAKER CAP – Contains pH sensor storage solution to maintain sensor
hydration. To remove, twist the soaker cap while pulling off using caution not
to spill the storage solution. To replace, fill the soaker cap half full with
storage solution. Twist the soaker cap while pushing back on using caution
as excess storage solution may squirt out.
NOTE: The formation of KCl crystals around the soaker cap is normal. These
crystals do not affect the sensor life, performance, or accuracy. ALWAYS rinse them off with clean water prior to a performing a test.
8. CAP STOP – DO NOT push the protective cap beyond the cap stop as sensor damage could occur.
9. SCOOP – Used to hold sample solution when dipping is not possible. To install, push the scoop onto the sensor while shifting side-to-side. To
remove, pull the scoop off while shifting side-to-side. Verify the pH sensor remained fully inserted into the PTBT2. If not, download the full PTBT2
Operation Manual from the Myron L
stream during measurement, avoiding bubbles.

DOWNLOADING AND OPENING THE MOBILE DEVICE APP

1. Go to the Apple App Store. And search for the "Ultrapen PTBTx" iPhone App.
2. Open the Ultrapen page and tap the Install button.
3. Tap Ultrapen App icon on the mobile device's home screen. The App's main
Measurement screen will appear.

ULTRAPEN APP MEASUREMENT SCREEN

1. MOBILE DEVICE STATUS BAR - Standard Status Bar for your mobile device.
2. MEASUREMENT VALUE FIELD - Displays the measured value of the solution. When the Ultrapen turns
OFF, displays the message, "Ultrapen is Offline" and values gray out.
3. UNITS OF MEASURE - Displays correct units for pH measurements.
4. ULTRAPEN BATTERY LEVEL - Displays battery charge level in %. Flashes RED when battery is ≤ 25%.
5. SOLUTION TEMPERATURE - Measured temperature of the solution.
6. MEMORY STORE BUTTON - Tap here to record the measurement in the App's database.
7. MEMORY REPLACE BUTTON - Tap here to replace a previously stored measurement with data from a new measurement.
8. FEATURE NAVIGATION BAR - These buttons activate various App features.
TEMPERTURE UNITS: °C (Temp. value alternates on Display with pH value)
NOTE: For or a full description of the PTBT2 and Mobile App settings, download the PTBTx App Operation Manual by tapping the
Preferences button on the Feature Navigation Bar, select the Help option, then select PTBTxOM Operation Manual.
I. CONNECTING THE ULTRAPEN TO THE MOBILE DEVICE
1. Tap the Connect in the Feature Navigation Bar.
2. Press and release the push button on the PTBT2 to turn it ON.
3. When the PTBT2's name appears on the Connect screen, select that line. A checkmark will appear next to PTBT2's name.
NOTE: The default name for all PTBT2's is, "MLC-PTBTx". For instructions on editing the PTBT2's name, tap the Preferences on the
Feature Navigation Bar, select the Help option and refer to the Ultrapen Settings section.
NOTE: To unpair from a PTBTx, tap the red Unpair next to the PTBT2's name then select Disconnect.
II. MAKING MEASUREMENTS:
measurements. CAUTION: To measure solution at the extremes of the specified temperature range, allow the PTBT2 to equilibrate by submerging the
sensor in the sample solution for 1 minute prior to taking a measurement.
NOTE: When testing a vertical stream of sample, use the scoop. Recalibrate the PTBT2 using the scoop to retain accuracy.
1. Rinse the sensor by swirling it in clean water (preferably DI, RO, or purified water) patting it dry with a clean cloth or tissue.
2. Open the Ultrapen App.
3. Tap the Measurement in the Feature Navigation Bar. The screen will say, "Paired Ultrapen is Offline".
4. Press and release the push button to turn the PTBT2 ON.
™
ULTRAPEN
pH and Temperature Pen for Use with your Mobile Device

QUICK REFERENCE INSTRUCTIONS

®
Company website for instructions on reinstalling the sensor. To use, hold the scoop directly under a vertical

PTBT2 DEFAULT SETTINGS

OPERATING INSTRUCTIONS

Make sure the PTBT2 is clean. Myron L
PTBT2 – Quick Start Guide
Returns the App to the Measurement screen.
Displays a list of saved measurements.
Places the App in Calibration mode.
Opens the App's Bluetooth Connect / Disconnect screen.
Opens the App's Preferences and Settings modes. A internet
link to full Operation Manual (Help button) is found here.
®
Company recommends that you calibrate the PTBT2 before taking
MEASUREMENT MODE: HOLD
PTBT2QSI 07-16
