ALL0235mini – Wireless 11n 1T1R Router – User Manual
ALL0235mini
Wireless 11n 1T1R Router
User's Manual
Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALL0235mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allnet ALL0235mini

Summary of Contents for Allnet ALL0235mini

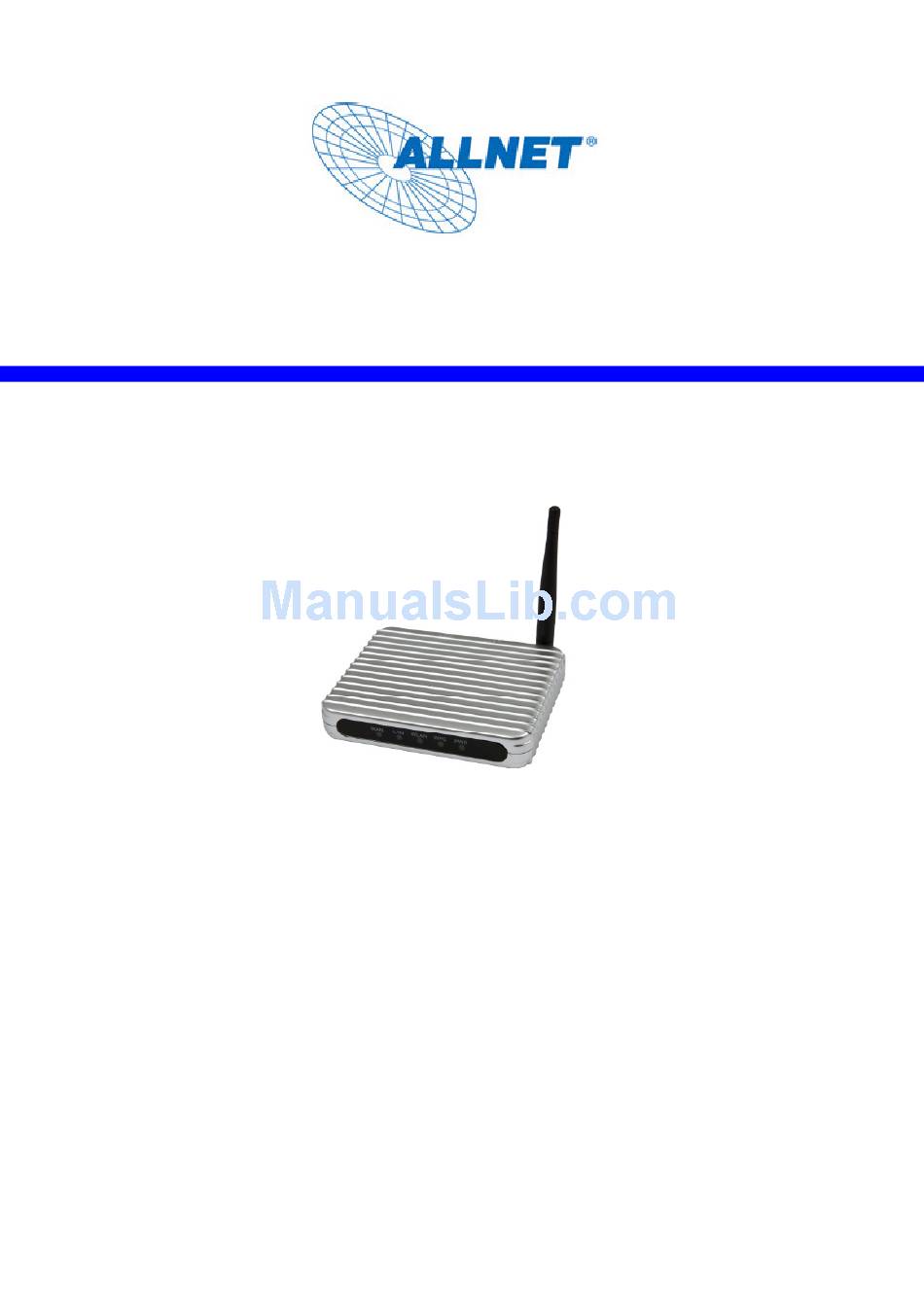

  • Page 1 ALL0235mini – Wireless 11n 1T1R Router – User Manual ALL0235mini Wireless 11n 1T1R Router User’s Manual Version 2.1...
  • Page 2 FCC Certifications Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Ce Mark Warning

    CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility and R&TTE Directive 1999/5/EC...

  • Page 4: Table Of Contents

    Contents Unpacking Information ························································································ 5 Chapter 1 Introduction to the Wireless Router ····················································· 6 General Description ········································································· 6 Key Features ·················································································· 6 The Front Panel ·············································································· 7 The Rear Panel ··············································································· 8 Chapter 2 Installation and Basic Configuration ····················································· 9 Operation Mode ··············································································...

  • Page 5: Unpacking Information

    Unpacking Information Thank you for purchasing the product. Before you start, please check all the contents of this package. The product package should include the following: 1. One Wireless Router 2. One USB cable 3. One CD Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.

  • Page 6: Chapter 1 Introduction To The Wireless Router

    Chapter 1 Introduction to the Wireless Router 1.1 General Description This is a wireless router with 1T1R MIMO technology, providing an excellent network solution for home, SOHO and hotspot users. It complies with standards IEEE 802.11n with data rate up to 150 Mbps, and IEEE 802.11b/g with maximum data rate of 54 Mbps.

  • Page 7: The Front Panel

    1.3 The Front Panel The front panel of the Wireless Router: Name Status Indication Green Power on Dark Power off Blink green one time System reboot Blink green WPS connecting Dark System stability The wireless function is disabled. WLAN Flashing The wireless function is enabled.

  • Page 8: The Rear Panel

    1.4 The Rear Panel The rear panel of the Wireless Router is shown below. LAN: Through this port, you can connect the router to your PCs and the other Ethernet network devices. WAN: This WAN port is where you will connect the cable/DSL Modem, or Ethernet. DC IN: Plug the circle end of the USB cable firmly into the rear panel of the router, and put the other end into an electric service outlet, then the system is ready.

  • Page 9: Chapter 2 Installation And Basic Configuration

    Chapter 2 Installation and Basic Configuration This chapter will guide you steps by steps to install and configure the Wireless Router. We suggest you go over the whole chapter first and then do more advanced operation. Operation Mode In this device, there are two modes for your selection: AP mode Router mode Different mode functions different.

  • Page 10: Configure The Ip Address Of Your Computer

    Configure the IP Address of Your Computer In order to communicate with this Wireless Router, you have to configure the IP address of your computer to make it compatible with the device. Note: The router supports DHCP server and it is enabled as default. Users who configure his IP address as “Obtain an IP address automatically”...
  • Page 11 2. Right-click Local Area Connection item and click Properties. 3. Choose Internet Protocol (TCP/IP) and click Properties.
  • Page 12 You may choose Obtain an IP address automatically (recommend) to get an IP address automatically. Or you can choose Use the following IP address to specify an IP address manually. Please click the OK button after your configuration.

  • Page 13: Chapter 3 Web-Based Management

    Chapter 3 Web-Based Management Start the Web-Based Management Interface The device uses Web as the management interface. You can use a browser to access the management interface easily. Please follow the steps listed below. 1. Open the Internet Web browser. 2.

  • Page 14: The Graphic User Interface

    The Graphic User Interface After the password authorization, the information page shows up as the home page of the graphic user interface. You may click the menu link on left column of the window to get access to each configuration page. Router Mode:...
  • Page 15 AP Mode:...

  • Page 16: Setup Wizard

    Setup Wizard If you are using the router for the first time, please follow the procedures of the setup wizard to do a step-by-step configuration. Note: The configurations in AP and Router modes are almost the same. The following guide mainly introduces this device under the Router mode environment.
  • Page 17 3. Click “Next” button, the “WAN Interface Setup” pops out. Or you can click “Back/Cancel” for any changing. You may get those parameters from your ISP. WAN Access Type: Static IP, DHCP Client and PPPoE. 4. Click “Next” button, the “Wireless Network Basic Settings” pops out.
  • Page 18 5. Click “Next” button, the “Wireless Security Setup” pops out. Having finished these steps, you can use the router to surf the Internet. If you need more detailed information, please refer to the following instruction.

  • Page 19: Wireless

    Wireless 3.4.1 Basic Settings You can set up the configuration of your Wireless basic settings and monitor the Wireless Clients associate with your router. Items Information Disable Wireless Mark the checkbox to disable the Wireless Network. Network We provide six modes for your selection: 2.4GHz (B), 2.4 GHz (G), 2.4 GHz (N), 2.4GHz (B+G), 2.4 GHz (G+N), 2.4 GHz (B+G+N).
  • Page 20 If you enable "Broadcast SSID", every wireless station located within the coverage of this wireless router can discover this wireless router Broadcast SSID easily. If you are building a public wireless network, enabling this feature is recommended. Disabling "Broadcast SSID" can be more safe. Click "Show Active Clients"...

  • Page 21: Advanced Settings

    2. Active Wireless Client Table This is the window that pops up after clicking the button. 3.4.2 Advanced Settings You can set advanced wireless LAN parameters for this router. We recommend not changing these parameters unless you know what changes will be on this router. Items Information This value should remain at its default setting of 2346.

  • Page 22: Security

    recommended. Beacons are packets sent by an access point to synchronize a Beacon Interval wireless network. Specify a beacon interval value. Default (100ms) is recommended. The length of CRC blocks in the frames during the wireless Preamble Type communication. RF Output Power Select the signal strength for the wireless network.
  • Page 23 Show Password Select to show the password or not. * Please click on the Apply Changes button or the Reset button to save/reset the configurations. 1. Security Mode – Disable Select “Disable” means to access your wireless network without any encryption. 2.
  • Page 24 Authentication There provide three options for selecting: Open System, Shared Key, Auto. Key Length Select “64-bit” or “128-bit” as the key encryption length. Key Format Select “ASCII ” or “Hex ” to setup the key value. Encryption Key Enter the key according to the key format you select. Show Password Select to show the password or not.
  • Page 25 Items Information Please choose a SSID you have set for this router by clicking Select SSID “Wireless > Basic Settings” from the drop-down list. The SSID will be shown on the wireless network for your recognition. Encryption Select a security encryption mode for this router. WPA Cipher Suite: the default setting is TKIP.
  • Page 26 4. Security Mode – WPA2-Mixed Items Information Please choose a SSID you have set for this router by clicking Select SSID “Wireless > Basic Settings” from the drop-down list. The SSID will be shown on the wireless network for your recognition. Encryption Select a security encryption mode for this router.

  • Page 27: Access Control

    3.4.4 Access Control To restrict the station access authentication of the clients, you can set up the control list in this page. Items Information Click the drop list to choose the access control mode. You may select Wireless Access “Allow listed” to give those MAC addresses access to this device or select Control Mode “Deny Listed”...
  • Page 28 2. Click the “Site Survey” button can scan nearby Router and AP. This page shows the available wireless networks information. When you use this device as a station (STA), you may connect to other AP.
  • Page 29 3. Select one of the networks existing in the list of the site survey table and then click “Next” button, then the following page pops out. 4. In this page, you can input the selected AP’s password, then click “connect ” button to start connection with wireless network.
  • Page 30 5. In connection process, the following page pops out. Please waiting for the connection result. 6. When connection is successful, the following page pops up.

  • Page 31: Wps Settings

    7. You can go back to the Management > Status page and confirm the connection’s states. 3.4.6 WPS Settings The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. This router supports the configuration setup using PIN configuration method or PBC configuration method through an internal or external registrar.
  • Page 32 Items Information Disable WPS Click this checkbox to undo WPS. You cannot manually select the items here. The WPS Status will change WPS Status from “UnConfigured” to “Configured” after you enable WPS function and setup a wireless security key for this device. If you use this device as a client, you can use this code when trying to Self-PIN Number connect this device to other AP by using the PIN method.

  • Page 33: Tcp/Ip Settings

    TCP/IP Settings 3.5.1 LAN Interface Setup To set up the configuration of LAN interface, private IP of your router LAN port and subnet mask for your LAN segment. Items Information Router IP Address The IP of your Router LAN port (default 192.168.100.1). Subnet Mask of you LAN (default 255.255.255.0).

  • Page 34: Wan Interface Setup

    Active DHCP Client List This is the window that pops up after clicking the button. It shows the information of IP address, MAC address and expire time of the DHCP clients that have connected with this device. 3.5.2 WAN Interface Setup (Router mode Display) This page allows users to configure those parameters for connecting to Internet.
  • Page 35 Items Information Select the mode to access the WAN as Static, DHCP Client or WAN Access Type PPPoE. The IP address that provided by your Internet Service Provider Internet IP Address (ISP). The Subnet Mask provided by your Internet Service Provider Subnet Mask (ISP).
  • Page 36 your network card in the computer. Note: The 'History MAC Table' can save maximum three MAC Addresses. To Delete the MAC Address you add before, mark the check box in the select item on the right hand and click the “Delete History MAC Table Selected”.
  • Page 37 2. DHCP (Automatic Configuration) Items Information To Enable the Maximum Transmission Unit of Router setup. Any packet over this number will be chopped up into suitable size before sending. Larger number will enhance the MTU Size transmission performance. Enter your MTU number in the text-box to set the limitation (default 1492 bytes).
  • Page 38 4. PPPoE (ADSL) Items Information User Name&Password Fill in the User Name and password that provided by your ISP. To Enable the Maximum Transmission Unit of router setup. Any packet over this number will be chopped up into suitable size before sending. Larger number will enhance the MTU Size transmission performance.

  • Page 39: Firewall Settings

    Firewall Settings (Router mode Display) MAC Filtering The Wireless Router could filter the outgoing packets for security or management consideration. Items Information Enable MAC Filtering Mark to enable the configuration, and clear to disable. Fill in the MAC address of wireless stations you want to MAC Address forbid to access the Internet through the Gateway.

  • Page 40: Management

    Management 3.7.1 Status This information page shows the current status and basic settings of this device. You could check if the parameters match your configuration. 3.7.2 Statistics This page shows users the information of data transfer, and monitors the status of this router including receiving and sending packets.

  • Page 41: Log

    3.7.3 Log This System Log page shows the information of the current activities on the router. To enable system log function: Mark the “Enable Log” checkbox. To see all information of the system, select the “system all” checkbox. To see wireless information only, select the “wireless” checkbox. Click the button to activate.

  • Page 42: Upgrade Firmware

    3.7.4 Upgrade Firmware Sometimes a new firmware may be issued to upgrade the system of this device. You could upgrade the firmware you got in this page. To upgrade the firmware, please click the button, locate the firmware in your computer and then click the button to execute.

  • Page 43: Save/Reload Setting

    3.7.5 Save/Reload Setting The Save/Reload Setting page allows users to save and upload the configuration settings of the device or restore the factory default configuration. Items Information Click the button to save the currently configure Save Settings to File settings. Click to select the file that you save, and then Load Settings from File...

  • Page 44: Logout

    3.7.7 Logout Click Apply Change then you will save the settings and log off the management interface.

  • Page 45: Appendix A: Product Specifications

    Appendix A: Product Specifications IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE Standard 802.3u LAN: One 10/100Mbps RJ-45 port WAN: One 10/100Mbps RJ-45 port Interface One WPS/RESET button One slide switch to control AP/Router mode One USB DC JACK Antenna type: Dipole Antenna Antenna connector type: Fixed...

  • Page 46: Appendix B: Glossary

    ALL0235mini – Wireless 11n 1T1R Router – User Manual Appendix B: Glossary 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 47 promoting interoperability among 802.11b devices. WLAN (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area.
  • Page 49 All other company or product names mentioned are used for identification purposes only and may be trademarks of their respective owners. Manufacturer: ALLNET GmbH ALLNET Deutschland GmbH Maistrasse 2 82110 Germering Tel. +49 89 894 222 22 Fax +49 89 894 222 33 email: info@allnet.de...
