This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
®
BUSH HOG
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
OPERATOR'S MANUAL
©2010 Alamo Group Inc.
PROFESSIONAL

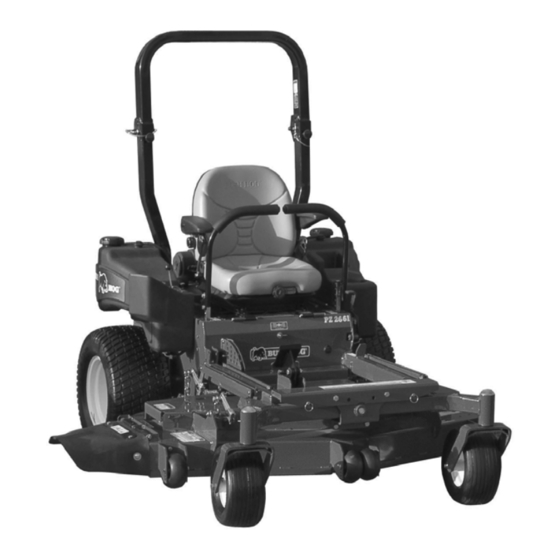

Zero Turn Riding Mower
SERIES
Part No. 50045565
$0.00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bush Hog Zero Turn Professional Series
Summary of Contents for Bush Hog Zero Turn Professional Series
- Page 1 This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. C01- Cover ® BUSH HOG 2501 Griffin Ave. Selma, AL 36703 334-874-2700 www.bushhog.com ©2010 Alamo Group Inc.
- Page 2 If your manual should become lost or destroyed, Bush Hog will be glad to provide you with a new copy. Order from Bush Hog, P. O. Box 1039, Selma, Alabama 36702-1039. Most of our manuals can also be downloaded from our website at www.bushhog.com.
-
Page 3: Table Of Contents
It is the Retail Customer’s responsibility to deliver the product to the authorized Bush Hog Dealer, from whom he purchased it, for service or replacement of defective parts which are cov- ered by warranty. - Page 4 3. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 4. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement of Bush Hog such use affects its performance, stability or reliability.
-
Page 5: Warranty
DEALER PREPARATION CHECK LIST PROFESSIONAL ZERO TURN RIDING MOWER BEFORE DELIVERING MACHINE — The following check list should be completed. Use the Operator’s Manual as a guide. Engine has been serviced. Battery fluid level is checked. Low oil pressure warning buzzer checked for operation. Operator interlock switches checked for operation. -
Page 6: Safety Alert Symbols
Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” This symbol is used to call attention to safety precautions that should be followed by the oper- ator to avoid accidents. When you see this sym- bol, carefully read the message that follows and heed its advice. -
Page 7: Safety Precautions
IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safe- ty precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in serious bodily injury. - Page 8 SAFETY CONTINUED KNOW HOW TO STOP QUICKLY. Know the location and operation of every control, especially how to brake and how to disengage the mower blades. DO NOT MOVE THE CONTROL LEVERS from forward position to reverse position rapidly. The speed and/or direction of travel is affected instantly by movement of the Control Levers.
- Page 9 TOWING Use for towing only if equipped with a Bush Hog hitch kit. Do not attach towed equipment except at the hitch point. Never allow children or others in or on towed equipment. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
-
Page 10: Federal Laws And Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such). U.S. -
Page 11: Introduction And Description
The tractor unit consists of either a 25 hp Kawasaki, 26 hp Kawasaki, 27 hp Kohler, 28 hp We are pleased to have you as a Bush Hog customer. EFI Kohler or 30 hp Kohler twin cylinder engine. The... -
Page 12: Specifications
Ignition Key - Starts and stops engine. OPERATOR INTERLOCK SYSTEM Engine Throttle - Controls engine speed. Your Bush Hog Zero Turn Riding Mower is equipped Two Steering/Speed Control Levers - In front of with an Operator Interlock System that is designed to seat at side. -
Page 13: Operation
SECTION II OPERATION GENERAL SAFETY 8. Inspect V-belts 9. Check tire pressure (Use low pressure gauge): Only qualified people familiar with this operator’s man- Front Tires - 15 psi, Drive Tires - 15 psi ual should operate this machine. Operator should wear hard hat, safety glasses, and safety shoes. -
Page 14: Operation
WARNING OPERATION AVOID SERIOUS INJURY OR DEATH: 1. OPEN FUEL TANK SELECTOR VALVE left or DO NOT MOVE STEERING LEVERS FROM FOR right tank. WARD TO REVERSE OR REVERSE TO FORWARD POSITION RAPIDLY. A SUDDEN CHANGE IN DIREC 2. MOVE CONTROL LEVERS TO neutral “OUT” TION MAY CAUSE LOSS OF CONTROL AND/OR position by pushing each one straight sideways. - Page 15 ANTI-SCALP ROLLER OR CASTER ADJUSTMENT: 1. Stop engine and move the control levers to the neutral position and engage the parking brake. 2. Disengage the blades. 3. The Anti-Scalp deck rollers are adjustable up and down to provide improved deck flotation and scalping pro- WARNING tection at various cutting heights.
-
Page 16: Mowing Recommendations
MOWING RECOMMENDATIONS WARNING 1. Keep mower blades sharp. AVOID SERIOUS INJURIES TO OTHERS: ALWAYS REMOVE THE KEY FROM THE IGNI- 2. Make sure deck and discharge chute are clean. TION SWITCH WHENEVER THE MOWER IS UN- ATTENDED TO PREVENT CHILDREN OR 3. -
Page 17: Maintenance
50 hours crankcase oil and filter (5 hrs break-in) Change hydrostatic oil and filter (See your Bush Hog Dealer) Important: Substitution of an improper filter will cause every 500 hours hydrostatic failure which will not be covered under warranty... -
Page 18: Engine
4. TIRES: 1. ENGINE: For complete maintenance and operating infor- Correct tire pressure is essential for efficient mation for your engine, please refer to your operation of the mower. Check tire air pres- engine operating and maintenance instructions sure periodically. Inflate front and rear tires to 15 psi. furnished engine manufacturer... -
Page 19: Motion Control Adjustment
MOTION CONTROL LEVER ADJUSTMENT 6. Re-tighten the nuts at the end of the hex turnbuckles and repeat the procedure for 1. There are three lever height positions available. the opposite side of the unit. Place the levers in the position that provides the most confortable operating position for you. -
Page 20: Leveling The Deck
Chain Fastener spring length is reached. Deck Lift Pedal DECK BELT REPLACEMENT USE ONLY GENUINE BUSH HOG REPLACEMENT PARTS A. Remove the deck shield assembly. B. Relieve the spring tension by loosening the two 3/8” hex nuts on the eye bolt. -
Page 21: Start Up Maintenance
HYDROSTATIC FLUID The pump and motor units normally do not require reg- Bush Hog recommends the use of 20W50 motor oil in ular fluid changes. The system filter should be changed the hydrostatic reservoir. after the first 50 hours of break-in, then every 500 hours thereafter. -
Page 22: Troubleshooting
TROUBLESHOOTING CHECK LIST 1. ENGINE IDLES POORLY: Carburetor maladjustment readjust carburetor Improper spark plug gap check and re-gap plug 2. ENGINE BACKFIRES: Carburetor maladjustment readjust carburetor 3. ENGINE RUNS BUT POWER UNIT WON’T MOVE FORWARD Drive belt loose or broken re-tension or replace Pump shift arm disconnected reconnect... -
Page 23: Assembly
Retaining Pins Safety Wire PIVOTING FRONT AXLE SETTINGS Front Axle Pivot The Bush Hog pivoting front axle increases operator comfort, traction, mower life and improves the quality Locking Pins Set To of cut. In conditions where the terrain is extremely un-... -
Page 27: Safety Decals
To promote safe operation, Bush Hog supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Bush Hog will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Bush Hog dealer for more infor- mation. - Page 28 WARNING TO AVOID SERIOUS INJURY OR DEATH DO NOT OPERATE MOWER WITHOUT DISCHARGE SHIELD OR DEFLECTOR IN PLACE AND GOOD REPAIR. 83056 WARNING TO AVOID SERIOUS INJURY OR DEATH, H READ OPERATOR’S MANUAL BEFORE H KEEP SHIELDS AND GUARDS IN PLACE. OPERATING &...
-
Page 29: Torque Specifications
TORQUE SPECIFICATIONS Proper toque for American fasteners used on Bush Hog equipment. AMERICAN Recommended Torque in Foot Pounds (Newton Meters).* BOLT DIAMETER Bolt Head Markings WRENCH (IN.) “B” AND SIZE (IN.) “A” THREAD SIZE GRADE 2 GRADE 5 GRADE 8... -
Page 30: Optional Equipment List
PROFESSIONAL SERIES ZERO TURN RIDING MOWERS Optional Equipment: Caster Bundle (Available for 61” deck only) Canopy Kit Light Kit Electric Actuator Bundle Rear Hitch Kit Mulching Kit 61” Mulching Kit 55” Striping Kit Grass Catcher 55” & 61”... -
Page 31: Slope Angle Guide
SLOPE ANGLE GUIDE ALIGN THIS EDGE WITH A VERTICAL SURFACE (TREE. BUILDING, FENCE POST. POLE, ETC.) - Page 33 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety...
- Page 34 PROFESSIONAL SERIES ZEROTURN RIDING MOWER PZ -SOM - 04/11 P/N 50045565 Printed U.S.A.
