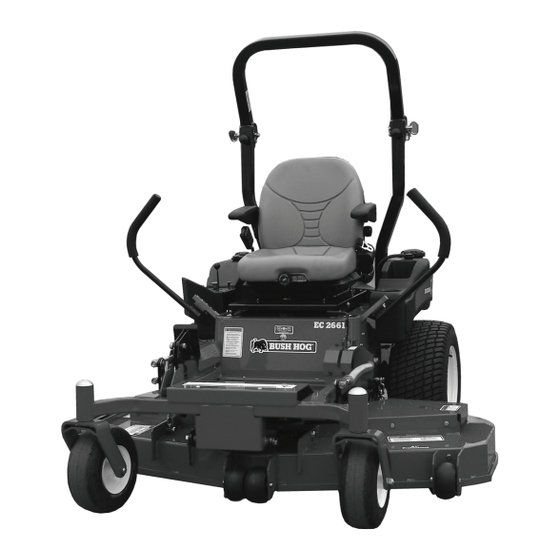

- Page 1 This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. C01- Cover ® BUSH HOG 2501 Griffin Ave. Selma, AL 36703 334-874-2700 www.bushhog.com ©2010 Alamo Group Inc.
- Page 2 If your manual should become lost or destroyed, Bush Hog will be glad to provide you with a new copy. Order from Bush Hog, 2501 Griffin Ave. Selma, Al. 36703. Most of our manuals can also be downloaded from our website at www.servis-bushHog.com.
-
Page 3: Table Of Contents
It is the Retail Customer’s responsibility to deliver the product to the authorized Bush Hog Dealer, from whom he purchased it, for service or replacement of defective parts which are cov- ered by warranty. - Page 4 3. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 4. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement of Bush Hog such use affects its performance, stability or reliability.
-
Page 5: Warranty
14. Steering checked and adjusted, if necessary. 15. Check tire pressure. 16. Warranty information has been registered on line with Bush Hog. 17. Operators manual has been delivered to owner and he has been instructed on the safe and proper use of the cutter. -
Page 6: Safety Alert Symbols
Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” This symbol is used to call attention to safety precautions that should be followed by the oper- ator to avoid accidents. When you see this sym- bol, carefully read the message that follows and heed its advice. -
Page 7: Safety Precautions
IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safe- ty precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in serious bodily injury. - Page 8 SAFETY CONTINUED KNOW HOW TO STOP QUICKLY. Know the location and operation of every control, especially how to brake and how to disengage the mower blades. DO NOT MOVE THE CONTROL LEVERS from forward position to reverse position rapidly. The speed and/or direction of travel is affected instantly by movement of the Control Levers.
- Page 9 TOWING Use for towing only if equipped with a Bush Hog hitch kit. Do not attach towed equipment except at the hitch point. Never allow children or others in or on towed equipment. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
-
Page 10: Federal Laws And Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regulations. It is not intended as a legal interpretation of the laws and should not be considered as such). U.S. -
Page 11: Introduction And Description
SECTION I INTRODUCTION AND DESCRIPTION INTRODUCTION We are pleased to have you as a Bush Hog customer. lawns and other frequently maintained areas where a smooth, even cut is desired and superior maneuver- Your Bush Hog Zero Turn Riding Mower has been ability is needed. -
Page 12: Specifications
Ignition Key -Starts and stops engine. OPERATOR INTERLOCK SYSTEM Engine Throttle - Controls engine speed. Your Bush Hog Zero Turn Riding Mower is equipped with an Operator Interlock System that is designed to Two Steering/Speed Control Levers - In front of help prevent possible serious injuries. -
Page 13: Operation
SECTION II OPERATION GENERAL SAFETY 7. Check battery fluid level. Only qualified people familiar with this operator’s man- 8. Inspect V-belts ual should operate this machine. Operator should 9. Check tire pressure (Use low pressure gauge): wear hard hat, safety glasses, and safety shoes. Front &... -
Page 14: Operation
OPERATION WARNING 1. OPEN FUEL TANK SELECTOR VALVE left or right tank. AVOID SERIOUS INJURY OR DEATH: DO NOT MOVE STEERING LEVERS FROM FOR 2. MOVE CONTROL LEVERS TO neutral “OUT” WARD TO REVERSE OR REVERSE TO FOR position by pushing each one straight sideways. WARD POSITION RAPIDLY. - Page 15 ANTI-SCALP ROLLER OR CASTER ADJUSTMENT: 1. Stop engine and move the control levers to the neutral position and engage the parking brake. 2. Disengage the blades. 3. The Anti-Scalp deck rollers are adjustable up and down to provide improved deck flotation and scalping pro- WARNING tection at various cutting heights.
-
Page 16: Mowing Recommendations
NOTE: To move the tractor without power, the pumps must be unlocked and in the free wheel position. Fail- WARNING ure to do so could possibly damage the hydraulic com- ponents. Never pull at more than 2 MPH. AVOID SERIOUS INJURIES TO OTHERS: ALWAYS REMOVE THE KEY FROM THE IGNI- 16. -
Page 17: Maintenance
Change engine every 50 hours (5 hrs break-in) crankcase oil and filter Change hydrostatic oil filter (See your Bush Hog Dealer) Important: Substitution of an improper filter will cause every 500 hours hydrostatic failure which will not be covered under warranty... -
Page 18: Engine
1. ENGINE: 4. TIRES: For complete maintenance and operating infor- Correct tire pressure is essential for efficient mation for your engine, please refer to your operation of the mower. Check tire air pres- engine operating and maintenance instructions sure periodically. Inflate front and rear tires to 15 psi. furnished engine manufacturer... -
Page 19: Motion Control Adjustment
MOTION CONTROL LEVER ADJUSTMENT 6. Re-tighten the nuts at the end of the hex turnbuckles and repeat the procedure for the opposite side of the unit. 1. There are three lever height positions available. Place the levers in the position that provides the 7. -
Page 20: Leveling The Deck And Setting The Counterbalance Spring Tension
DECK BELT REPLACEMENT the front. USE ONLY GENUINE Bush Hog REPLACEMENT PARTS A. Remove the deck shield assembly. 7. Adjust the bolts in the slot to raise the rear of the B. -
Page 21: Start Up Maintenance
HYDROSTATIC FLUID 500 hours thereafter. The fluid and filter should be changed and the system cleaned if the fluid becomes Bush Hog recommends the use of 20W50 motor oil in contaminated with foreign matter (water, dirt, etc.) the hydrostatic reservoir. -
Page 22: Parking Brake Cable Replacement
PARKING BRAKE CABLE REPLACEMENT / INSTALLATION OUTSIDE BRAKE ARMS 1. The outside brake arms are to remain in the position as received from the factory. (Horizontal and rearward) 2. Install brake cables finger tight and position the brake handle in the “vertical” position. 3. -
Page 23: Troubleshooting
TROUBLESHOOTING CHECK LIST 1. ENGINE IDLES POORLY: Carburetor maladjustment readjust carburetor Improper spark plug gap check and re-gap plug 2. ENGINE BACKFIRES: Carburetor maladjustment readjust carburetor 3. ENGINE RUNS BUT POWER UNIT WON’T MOVE FORWARD Drive belt loose or broken re-tension or replace Pump shift arm disconnected reconnect... -
Page 24: Assembly
SECTION IV ASSEMBLY MOUNTING THE REAR TIRES Position the rear tire rims over the axle hubs and fas- ten with the 1/2” lug nuts. Torque to 59 ft. lbs. Control Lever MOUNTING THE CONTROL LEVERS ROPS Upper folding portion angles Mount the control levers to the 3/4”... -
Page 26: Wiring Schematics
To Main 50068725 HARNESS ADAPTER Harness KAWASAKI ENGINES 50068133 Oil Pressure Lead for Kawasaki Engines 50068129 HARNESS ADAPTER KOHLER ENGINES To Main Harness To Engine Harness To Solenoid... -
Page 27: Safety Decals
To promote safe operation, Bush Hog supplies safety decals on all products manufactured. Because damage can occur to safety decals either through shipment, use or reconditioning, Bush Hog will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Bush Hog dealer for more infor- mation. - Page 28 50029501 SERIOUS INJURY OR DEATH MAY RESULT FROM MACHINE ROLLOVER • Failure to follow these instructions could result in serious injury or death. • Do not operate machine on steep slopes or near drop offs. • Avoid sharp and/or quick turns. 50043279 •...
-
Page 29: Torque Specifications
TORQUE SPECIFICATIONS Proper toque for American fasteners used on Bush Hog equipment. AMERICAN Recommended Torque in Foot Pounds (Newton Meters).* Bolt Head Markings BOLT DIAMETER WRENCH (IN.) “B” AND SIZE (IN.) “A” THREAD SIZE GRADE 2 GRADE 5 GRADE 8... -
Page 30: Optional Equipment List
EC SERIES ZERO TURN RIDING MOWERS Optional Equipment: Canopy Kit Light Kit Rear Hitch Kit Mulching Kit 55” Mulching Kit 61” Deck Caster Wheel Kit (61” Deck) -
Page 31: Slope Angle Guide
SLOPE ANGLE GUIDE ALIGN THIS EDGE WITH A VERTICAL SURFACE (TREE. BUILDING, FENCE POST. POLE, ETC.) - Page 33 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety...
Need help?
Do you have a question about the ESTATECOMMERCIALSERIES and is the answer not in the manual?
Questions and answers

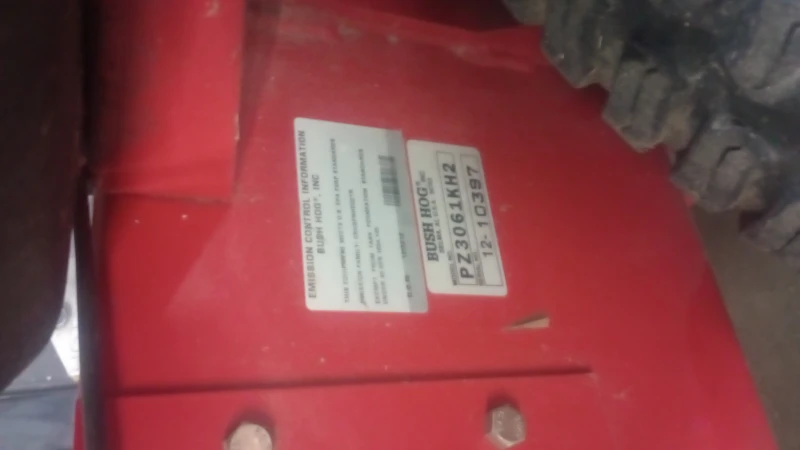

I need a wiring diagram for a bush hog PC 3061 kh2 please
