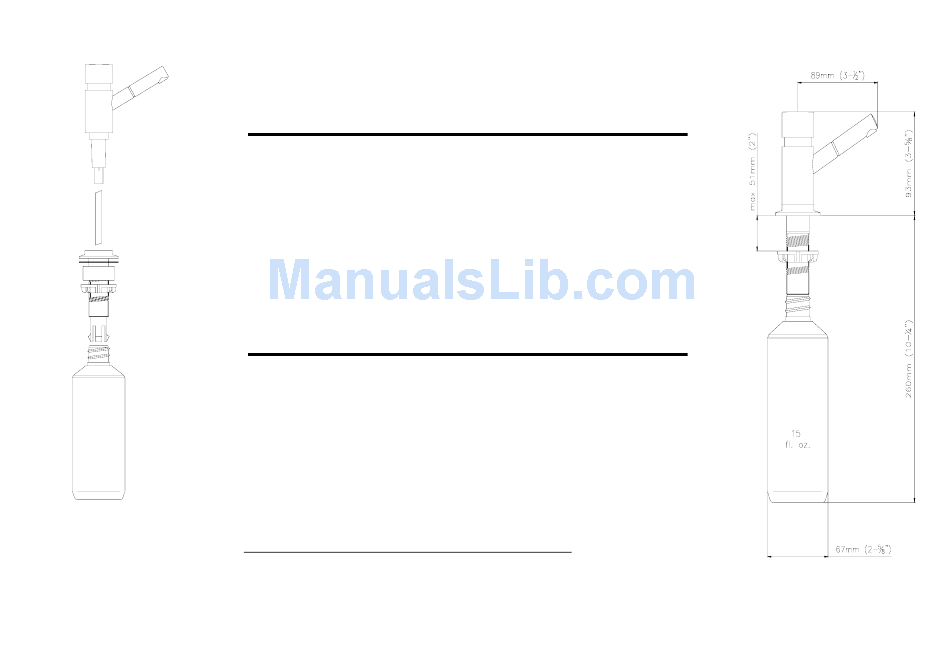

Components
Body and
Pump
Assembly
Dip Tube
Washer
Spacer
Connector
Assembly
Bottle
Operation
The pump is worked by a single full movement; by pressing the dispenser head downwards a 1/30 fl. Oz. of
liquid will be expelled. When first used it may be necessary to prime the pump with several movements.
Note: This dispenser is NOT designed for use with soaps which contain suspended particles. If these soaps
are used it will affect the working parts of the dispenser and will negate the warranty
Trouble Shooting
Symptom
Cause
No Soap is expelled when
PUMP not primed
Dispenser HEAD pressed
Soap BOTTLE Empty
Soap Congealed in PUMP
(Likely if dispenser has not been
used for a number of weeks)
Hole in end of FLEXIBLE
TUBE not in line with SPOUT
FLEXIBLE TUBE is broken.
(Soap seen to leak from body)
PUMP is difficult to move
Soap Congealed in PUMP
(Likely if dispenser has not been
used for a number of weeks)
PUMP is damaged
Service
It is unlikely that any components will fail in normal use, but should it be necessary, parts are replaceable
in the assemblies illustrated and are available from your local KWC DISTRIBUTOR. Before attempting to
replace any parts it is important the instructions below are read and understood.
PUMP replacement
1. To replace the PUMP firstly remove assembled BODY, PUMP unit from the CONNECTOR.
2. Remove the TUBE from the base of the pump by holding BODY,PUMP unit firmly and pulling TUBE.
3. Unscrew the 3 screws securing the BOTTOM LOCATING RING to the body and pull the ring away.
4. Again holding the BODY firmly, remove the PUMP by pulling it from the internal PLUNGER.
5. Insert new PUMP by pushing it into the PLUNGER. It is important that the PUMP is pushed fully home
otherwise the dispensing action will be impaired and/or leakage may occur.
6. Replace the BOTTOM LOCATING RING and secure with the SCREWS, take care not to over tighten,
then push TUBE back into PUMP and lower assembled UNIT into CONNECTOR.
Failure to follow above instruction will cause damage to the internal flexible tube.
WE RESERVE THE RIGHT TO CHANGE PRODUCT
AND SPECIFICATIONS WITHOUT PRIOR NOTICE
.
Cure
Prime PUMP with several movements
Refill Bottle
Lift DISPENSER BODY from
CONNECTOR and run hot water thro'
tube while operating PUMP
Realign hole using a needle
Contact Distributor
Lift DISPENSER BODY from
CONNECTOR and run hot water thro'
tube while operating PUMP
Replace PUMP (see Service Section)
