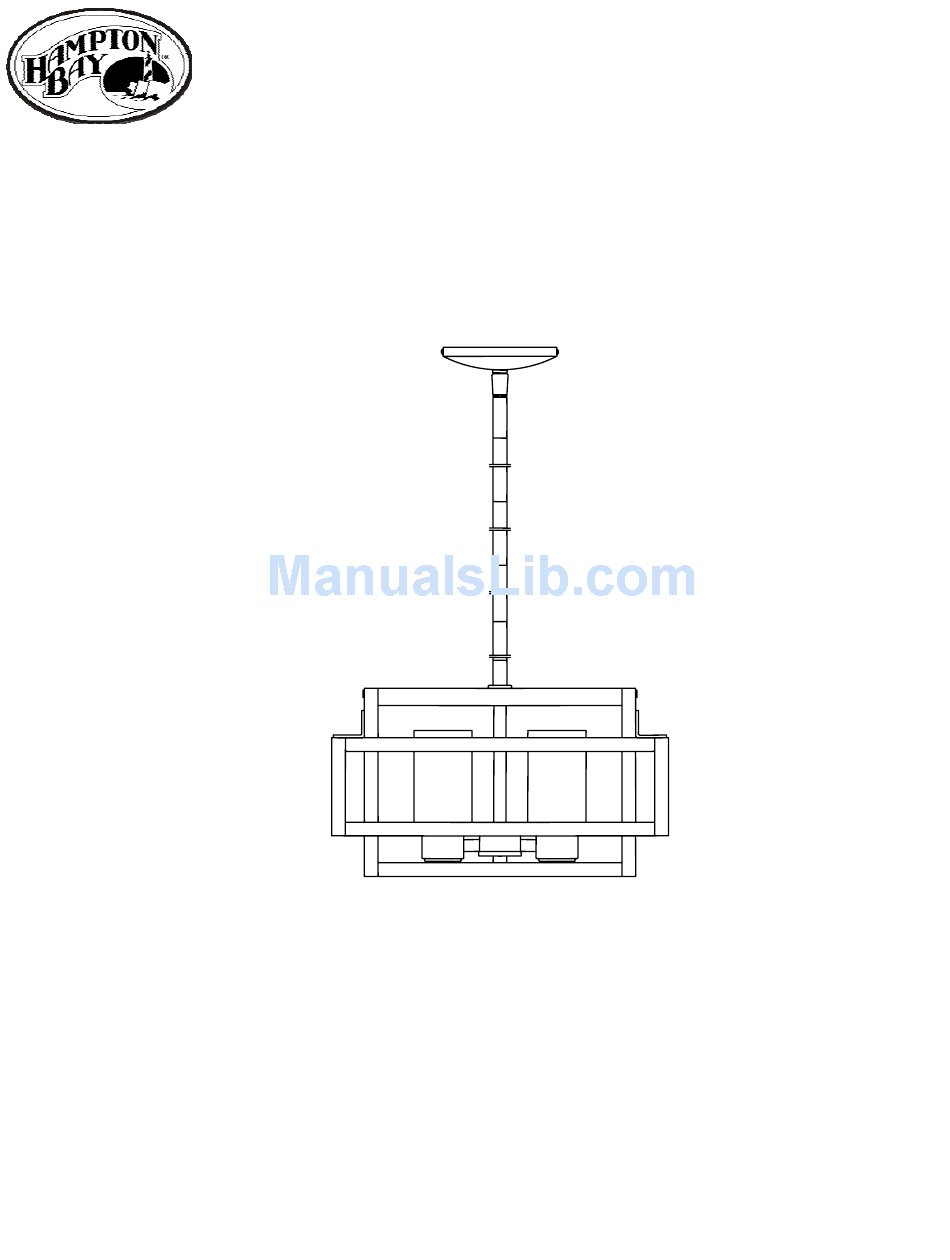

- Page 1 INSTRUCTION MANUAL 2 Light Pendant Lara Home Depot SKU 528-002 (UPC 718212271322) (Bronze fixture) LA-2017E/S/F Page 1...
- Page 2 Thank you for purchasing this Hampton Bay interior light fixture. This product has been manufactured with the highest standards of safety and quality. FEATURES: 1. Traditional 2 Light Pendant in Bronze Finish. 2. Timeless Elegant Design. 3. Easy to assemble and install.
- Page 3 CAUTION: 1. Before starting installation of this fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. 2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY ELECTRICAL QUESTIONS.
- Page 4 PARTS INCLUDED FOR ASSEMBLY (parts are not to scale): 2 Screw shell(#10) (#3) 1 Canopy (#2) 2 Glass Shade(#9) 4 Glass panel A (#6) 4 Glass panel B (#8) 4 Screw(#5) ASSEMBLY INSTRUCTIONS: Shut off power at the fuse box or circuit breaker box, if necessary remove old fixture and all mounting hardware from outlet box.
- Page 5 ASSEMBLY: 1. Mounting Screw 2. Canopy 11. Spanner 10.Screw Shell 4. Metal Frame A 9. Glass shade 5. Screw 6. Glass Panel A 7. Metal Frame B 8.Glass Panel B Page 5...
-
Page 6: Installation Instructions
PARTS INCLUDED FOR INSTALLATION (parts are not to scale): 3 Mounting Screw (#1) 1 Ground Screw (#12) 2 Outlet Box Screw (#16) 3 Wire Connector (#14) 1 Mounting Plate (#13) 1 Spanner (#11) INSTALLATION INSTRUCTIONS: 1. Attach the Mounting Plate (#13) to the outlet box in the ceiling with two outlet box Screws (#16). -
Page 7: Installation
INSTALLATION: 15. Outlet Box 14. Wire Connector Ground Wire 13.Mounting Plate Black Wire White Wire 12.Ground Screw 16. Outlet Box Screws 1.Mounting Screw 2. Canopy Page 7... -
Page 8: Troubleshooting
TROUBLESHOOTING: Possible Cause Corrective Action Bulb will not light. 1. Bulb is burned out. 1. Replace light bulb. 2. Power is off. 2. Make sure power supply is on. 3. Faulty wire connection. 3. Check wiring. 4. Faulty switch. 4. Test or replace switch. Fuse blows or circuit Crossed wires or power wire Check wire connections.
