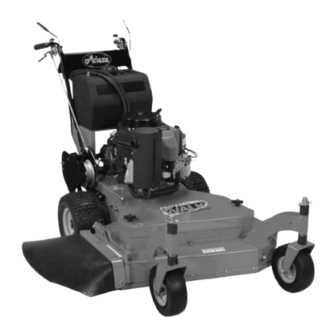

Ariens 988811 Owner's Manual

Professional walk

Advertisement

Quick Links

Professional Walk
Owner/Operator Manual
Manuel Du Propriétaire/Utilisateur
ENGLISH
FRANÇAIS
Models
988811 – APWKA1636S
988812 – APWKA1648S
04318700 1/11
Printed in USA

Advertisement

Table of Contents
loading

Summary of Contents for Ariens 988811

  • Page 1 Professional Walk Owner/Operator Manual Manuel Du Propriétaire/Utilisateur Models 988811 – APWKA1636S 988812 – APWKA1648S ENGLISH 04318700 1/11 Printed in USA FRANÇAIS...
  • Page 2: Table Of Contents

    English may be obtained from completely read your manuals. The contents your Dealer. Visit your dealer or will provide you with an understanding of www.ariens.com for a list of safety instructions and controls during normal languages available for your operation and maintenance.
  • Page 3: Unauthorized Replacement Parts

    Ariens authorized replacement part may adversely affect the performance, durability, or safety of this unit and may void the warranty. Ariens disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death arising out of the use of unauthorized replacement parts.
  • Page 4: Safety

    SAFETY WARNING: This cutting machine CAUTION: POTENTIALLY is capable of amputating hands HAZARDOUS SITUATION! If not and feet and throwing objects. avoided, MAY RESULT in minor or Failure to observe the safety moderate injury. It may also be used instructions in the manuals and on to alert against unsafe practices.
  • Page 5: Safety Decals And Locations

    SAFETY DECALS AND LOCATIONS ALWAYS replace missing or damaged Safety Decals. Refer to figure below for Safety Decal locations. Figure 2 OG1491 1. Danger! To avoid serious injury or Never direct discharge toward death other people. Thrown objects can cause injury. Read the operator’s manual.
  • Page 6: Emission Control System

    Emission controls and children out of the work area components can only be adjusted by an and under the watchful care of Ariens Company dealer or an authorized OL4370 a responsible adult. engine manufacturer's service center. Contact your Ariens Company Equipment...
  • Page 7 • Use extra care when handling • Stop equipment and inspect blades gasoline and other fuels. They are after striking objects or if an abnormal flammable and vapors are explosive. vibration occurs. Make necessary repairs before resuming operations. a. Use only an approved container. •...
  • Page 8 Using a Spark Arrestor • Watch for holes, ruts, bumps, rocks or other hidden objects. Uneven terrain The engine in this machine is not equipped could cause a slip and fall accident. with a spark arrestor muffler. It is a violation of Tall grass can hide obstacles.
  • Page 9 Rotating Blades Maintenance and are Dangerous - Storage Protect Children •Never operate and Prevent machine in a closed area where Accidents dangerous carbon Protect Children: monoxide fumes can collect. • Tragic accidents can occur if the •Disengage drives, operator is not alert to the presence of lower implement, lock parking brake, children.
  • Page 10 • Charge batteries in an open well • Empty the grasscatcher completely ventilated area, away from spark and before storing. Always shut off fuel flames. Unplug charger before when storing or transporting machine, connecting or disconnecting from if the machine has a fuel shutoff. battery.
  • Page 11 • Never add fuel to or drain fuel from the • A Material Safety Data Sheet (MSDS) machine indoors. Move machine provides specific details on chemical outdoors and provide adequate products: physical and health hazards, ventilation. safety procedures, and emergency response techniques.
  • Page 12: Assembly

    ASSEMBLY 3. Check the adjustments outlined in Service & Adjustments. WARNING: AVOID INJURY. Read 4. Check engine oil level. See engine and understand the entire Safety manual. section before proceeding. 5. Fill fuel tank. DO NOT OVERFILL! See FILLING FUEL TANK on page 15 1.
  • Page 13: Controls And Features

    CONTROLS AND FEATURES Figure 3 1. Shift Lever 2. Steering Lever Latches 3. Steering Levers 4. Throttle Lever 5. Ignition Switch 6. PTO Switch 7. Operator Presence Controls 8. Fuel Cap 9. Recoil Starter Handle 10. Traction Belt Guard 11. Choke Control GB - 13...
  • Page 14: Operation

    OPERATION WARNING: AVOID INJURY. Read CAUTION: AVOID INJURY. Operate and understand the entire Safety only when operator presence control section before proceeding. is functioning correctly. See Check Safety Interlock System on page 14 for testing instructions. CONTROLS AND FEATURES See Figure 3 for controls and features Steering Levers locations.
  • Page 15: Filling Fuel Tank

    Choke Control IMPORTANT: DO NOT OVERFILL! This equipment and/or its engine may include Use the choke control to start a evaporative emissions control system cold engine. Pull the control out components, required to meet EPA and/or to choke the engine. Push the CARB regulations, that will only function control in when the engine gets properly when the fuel tank has been filled to...
  • Page 16 Fuel Stabilizer TO OPERATE UNIT Gasoline left in the fuel system for extended Operate the unit only in the operator’s periods without a stabilizer will deteriorate, position directly behind the handlebars. resulting in gum deposits in the system. These deposits can damage the carburetor WARNING: AVOID INJURY.
  • Page 17: Cutting Height Adjustment

    • To stop unit in neutral, hold levers in IMPORTANT: NEVER engage the PTO if the the neutral position. mower is plugged with grass or other material. This will damage the PTO belt. 6. Move the shift lever to set a slow ground speed.
  • Page 18 Top Mounting Holes WARNING: Sharp edges can cut. Moving parts can cut off fingers or a hand. Wrap blade(s), wear sturdy gloves and use extreme caution when servicing. On multi-blade mowers, rotation of one blade will cause all blades to rotate. 8.
  • Page 19 Cutting Height Chart – Deck Bolted to Frame with Top Holes Approximate 1/4" Blade Spacers 1/2" Caster Spacers Cutting Height Inches (cm) Stored Between Below Above Spindle and Weldment Weldment Blade 1.25 (3.2) 1.5 (3.8) 1.75 (4.4) 2.0 (5.1) 1.5 (3.8) 1.75 (4.4) 2.0 (5.1) 2.25 (5.7)
  • Page 20 PARKING 1. Shut off the unit. See Shut Off on page 16 and "To stop mowing." 2. Remove the key. 3. Lock both steering lever latches in neutral to engage the brakes. 4. Chock or block the wheels if parked on a slope.
  • Page 21: Maintenance Schedule

    MAINTENANCE SCHEDULE Period Service Task Check Safety Interlock WARNING: Safety interlock system failure and improper operation of unit can result in death or System serious injury. Test this system each time the unit is operated. If this system does not function as described, do not operate until repairs are made.
  • Page 22: Service And Adjustments

    SERVICE AND ADJUSTMENTS If unit turns to the left WARNING: AVOID INJURY. Read 1. Reduce the air pressure in the right tire. and understand the entire Safety 2. Increase the air pressure in the left tire. section before proceeding. 3. Check for brake binding on left wheel and adjust as needed.
  • Page 23 4. Start engine and test in low gear for proper brake engagement. 3 – 3 1/4 in. (7.62 – 8.26 cm) 1. Trunnion 2. Wheel Clutch Weldment 3. Brake Rod Figure 10 REPLACE TRACTION BELTS 1. Turn off the engine, remove the key and allow unit to cool.
  • Page 24 12. Lower the unit. ADJUST SHIFT LEVER LINKAGE 13. Check steering lever adjustment. See IMPORTANT: If the shift lever and the ADJUST STEERING LEVERS on transmission detent are improperly aligned, page 22. the transmission may fail prematurely. Align the shift lever and detent as carefully as possible.
  • Page 25 .8mm (.030 in.) 1. Transmission 5. Mower Belt Clutch Sheave 2. Transmission Sheave 6. Clutch Bracket 3. Transmission Mounting Belt Idler Hardware 4. Transmission 7. Clutch Belt Idler Bracket Mounting Hardware Loosen hardware and adjust detent plate, Figure 15 if necessary. Figure 14 36"...
  • Page 26: Mower Blades

    2. Remove deck cover. 3. Turn the idler spring adjusting nut to relieve tension from the idler spring. 4. Remove belt from deck sheaves and mower clutch sheave. 5. Install new belt. 6. Tighten the adjusting nut to tension the belt.
  • Page 27 Remove Mower Blades Sharpen the Mower Blades Figure 18. WARNING: Sharp edges can cut. Moving parts can cut off fingers or a CAUTION: DO NOT sharpen hand. Wrap blade(s), wear sturdy mower blades while on unit. An gloves and use extreme caution unbalanced mower blade will when servicing.
  • Page 28: Service Electrical

    12. Grease the spindle. See GENERAL 6. Install caster yoke and wheel assembly, LUBRICATION on page 22. washer, spacer bushings and lynch pin. 13. Install mower blade, blade washers and 7. Apply grease to lubrication fitting. blade bolt assembly. Tighten bolt to 120 lbf-ft (163 N•m).
  • Page 29: Storage

    79260500 36-in. Mulch Kit (988811) STORAGE 79260000 48-in. Mulch Kit (988812) SERVICE PARTS WARNING: AVOID INJURY. Read Always use genuine Ariens parts to keep and understand the entire Safety your mower running like new. section before proceeding. 00201010 Mower Deck Belt (36-in.
  • Page 30: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTION Engine will not 1. Safety Interlock System is 1. The engine will not start unless the shift preventing start. lever is in neutral, the key is in the On start position, and the Power Take Off (PTO) 2.
  • Page 31: Specifications

    SPECIFICATIONS Model Number 988811 988812 Model APWKA1636S APWKA1648S Engine Engine Kawasaki Engine Model Number FS481V Governed RPM (May be different from 3600 ± 100 maximum RPM) Cooling Capacity Air Cooled Speed Forward Maximum – mph (km/h) 5.4 (8.7) Reverse Maximum – mph (km/h)
  • Page 32: Warranty

    Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely and Countax brand products purchased on or after 1/1/2011 and designated or labeled commercial products by Ariens Company will be free from defects in material and workmanship for the time period noted in the chart below. Equipment put to personal use around a single household or residence is considered "Consumer Use";...
  • Page 33 Exclusions - Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.
  • Page 34: Your Warranty Rights And Obligations

    Ariens Company cannot deny warranty solely for the lack of receipts. • As the small off-road equipment owner, you should however be aware that the Ariens Company may deny you warranty coverage if your evaporative emission control system part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 35 (4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the owner at an authorized Ariens service representative.
  • Page 36 Ariens 655 West Ryan Street Brillion, WI 54110-1072 920-756-4688 Fax 920-756-2407 www.ariens.com WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
