SPECIFICATIONS
Input impedance
470K Ohms
Output impedance
< 33 Ohms
THD
< 0.004% 10Hz to 20kHz
Frequency response
20Hz to 65kHz + 0, - 0.5dB
Crosstalk
better than 80dB, 20Hz to 20kHz
S/N ratio
> 93dB unweighted ref. full output
> 106dB "A" weighted ref. full output
Valve (tube) type
6112 (two)
Power requirement
12 - 0 - 12Volts AC 500mA
(via mains adaptor supplied)
Dimensions
180mm (7.1") wide
88.2mm (3.5") high including feet
218mm (8.6") deep including
Weights
Unit, net :
Adapter, net :
Total packed : 3.1 kg
Musical Fidelity reserves the right to make improvements which
may result in specification or feature changes without notice.
RCA sockets
2.5 kg
(5 lbs 8 oz)
0.45 kg (1 lb)
(6 lbs 13oz)
3

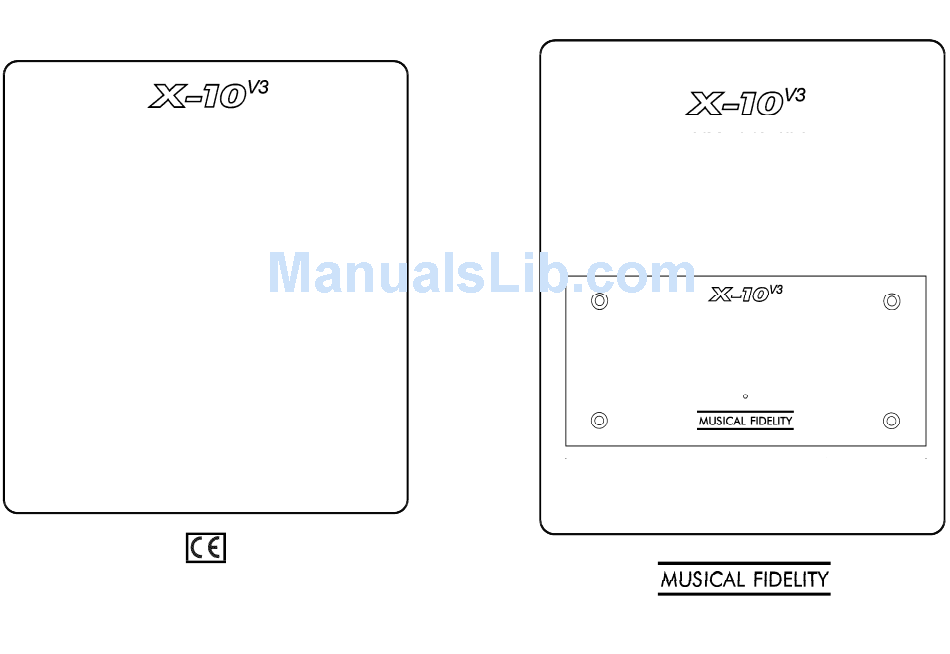

X-10 V
Issue 2 May 2004
TUBE OUTPUT BUFFER
Instructions for use
Advertisement
Table of Contents
Related Manuals for Musical Fidelity X-10 V3
Summary of Contents for Musical Fidelity X-10 V3
-
Page 1: Specifications
(5 lbs 8 oz) Adapter, net : 0.45 kg (1 lb) Total packed : 3.1 kg (6 lbs 13oz) Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. X-10 V Issue 2 May 2004... - Page 2 However, if a problem persists, please contact your Musical Fidelity agent. Plug the AC connector lead from the power supply unit into the X-10 V ’s Never open the case of the X-10 V...
