Summary of Contents for Musical Fidelity BPC16

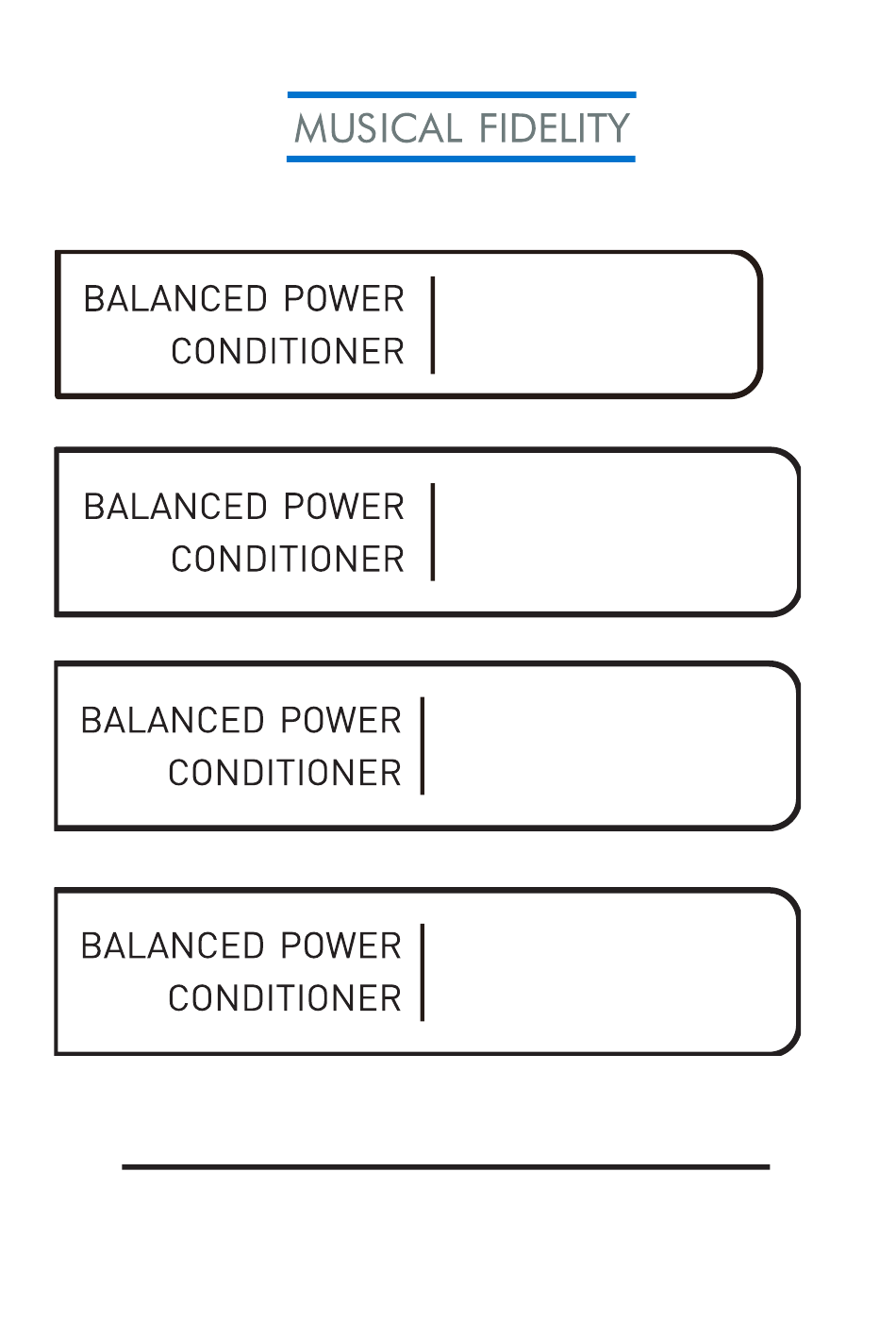

- Page 1 Instruction Manual Manual in different languages available from www.musicalfidelity.com...
-
Page 2: Table Of Contents
Contents Safety Information ................. 3 Installation ....................4 BPC Compatibility Chart ..............5-6 Facilities & Connections ..............7-10 Troubleshooting…................11 Technical Specifications ..............11-12 Statement of Conformity…………………………………………………………….13 Item Disposal Information for Europe ..........14... -
Page 3: Safety Information
WARNING: Any modifications to this product, not expressly approved by Musical Fidelity, • Position the mains lead and s igna l who is the party responsible for standards interconnects where they are not likely to compliance could void the user’s authority... -
Page 4: Installation
Use the chart on the next to pages to Before cleaning the unit, switch off power at the see which Musical Fidelity devices are best paired mains switch and remove the mains plug from the wall with which BPC and which zone. -
Page 5: Bpc Compatibility Chart
BPC Compatibility Chart BPC3 BPC5 product type 300W 300W 200W 800W power amplifier M2s/M3si power amplifier M2/M3/M6s CD digital source M3/M6/M8xVinyl analogue source M3/M6/M8x DAC digital source M5/M6si power amplifier M6si500 power amplifier M6s PRE analogue source M6s PRX power amplifier M8xi power amplifier M8s PRE... - Page 6 BPC10 BPC16 product type 200W 200W 1550W 2000W 600W 600W power amplifier M2s/M3si power amplifier M2/M3/M6s CD digital source M3/M6/M8xVinyl analogue source M3/M6/M8x DAC digital source M5/M6si power amplifier M6si500 power amplifier M6s PRE analogue source M6s PRX power amplifier...
-
Page 7: Facilities & Connections
Facilities & Connections BPC16 Power/Standby button and LED’s The Power button turns the unit on or off. When turned on the left LED will light up blue. The right LED lights up green if the BPC is in regular working status. Should the right LED light up red, please check if your input voltage is correct (between 100V and 130V or 210V and 250V depending on which country you are in). - Page 8 Facilities & Connections BPC10 Power/Standby button and LED’s The Power button turns the unit on or off. When turned on the left LED will light up blue. The right LED lights up green if the BPC is in regular working status. Should the right LED light up red, please check if your input voltage is correct (between 100V and 130V or 210V and 250V depending on which country you are in).
- Page 9 Facilities & Connections BPC5 Power/Standby button and LED’s The Power button turns the unit on or off. When turned on the left LED will light up blue. The right LED lights up green if the BPC is in regular working status. Should the right LED light up red, please check if your input voltage is correct (between 100V and 130V or 210V and 250V depending on which country you are in).
- Page 10 Facilities & Connections BPC3 Power/Standby button and LED’s The Power button turns the unit on or off. When turned on the left LED will light up blue. The right LED lights up green if the BPC is in regular working status. Should the right LED light up red, please check if your input voltage is correct (between 100V and 130V or 210V and 250V depending on which country you are in).
-
Page 11: Troubleshooting
BPC went into overload not causing power overload on BPC. If necessary, disconnect all devices protection mode. and reconnect them one by one. Technical Specifications BPC16 100-130V/210-250V Output Voltage > 57dB @ 235kHz, > 40dB @ up 1MHz RFI attenuation... - Page 12 In shipping carton & inc. accessories ca. 15,5 kg Unit dimensions Wide 440 mm High, including feet 100 mm Deep (front to back) including terminals 400 mm Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice.
-
Page 13: Statement Of Conformity
HiFi equipment is in the best possible hands. As this is the first time that Musical Fidelity releases Power Conditioners to the market, we have been quite surprised by our market research and product analysis. There is a constant lack of documentation and safety documents when it comes to these types of products. -
Page 14: Item Disposal Information For Europe
Item Disposal Information for Europe DISPOSAL AFVAL The crossed out wheeled bin label that appears on the Het label op de achterzijde van dit apparaat, een back panel of the product indicates that the product must afvalbak op wielen met een kruis doorgehaald, geeft aan not be disposed of as normal household waste.
